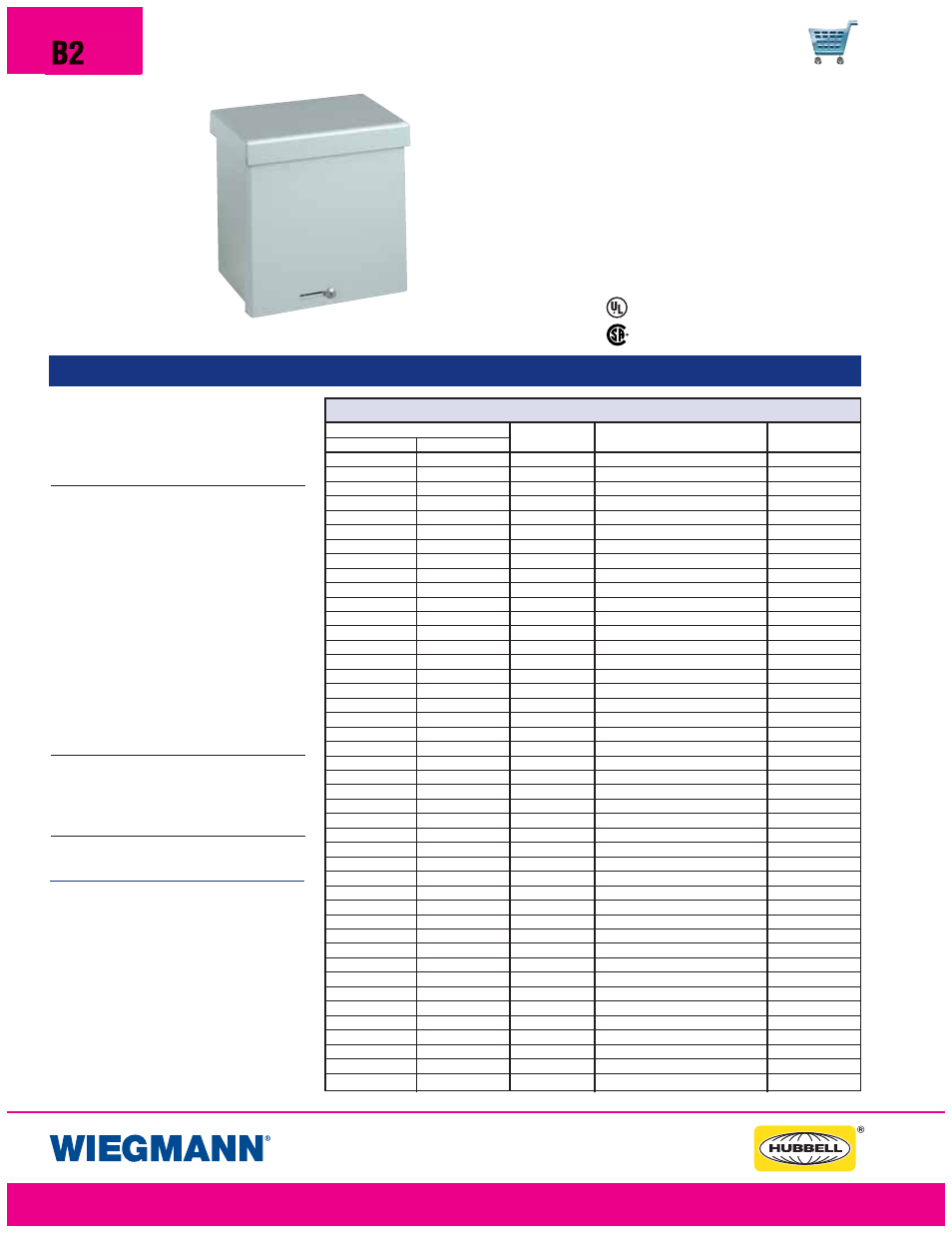

R S C S E R I E S E N C L O S U R E S
N E M A 3 R S C R E W C O V E R W A L L - M O U N T
B2
F E AT U R E S - S P E C I F I C AT I O N S
Applications
Designed for use as wiring boxes and
junction boxes. Provide protection in out-
door applications against rain, sleet, and
snow, or indoors against dripping water.
Construction
• Bodies and doors fabricated from 16,
14, or 12 gauge carbon steel and
pre-galvanized steel (reference table)
• Drip shield top and smooth seam-
less sides and front
• Knockouts are standard on bottom
of 4.00" and 6.00" deep enclosures
(reference table)
• A slip-on reversible cover is
securely fastened with screws
located along bottom edge
• No gasketing is required
• Hasp for padlocking or meter seal
is provided
Finish
• ANSI-61 gray polyester powder
inside and out over carbon steel
• Pre-galvanized steel (unfinished)
Accessories
• See pages J1-J22
Industry Standards
UL 50, Types 1 & 3R
CSA Certified, Type 1 & 3R
NEMA/EEMAC Type 1 & 3R
U L F i l e E 2 3 5 5 3
C S A F i l e L L 6 6 0 7 8
CATALOG NUMBER BODY/DOOR ENCLOSURE SIZE KNOCKOUT
PAINTED GALVANIZED STEEL GAUGE H+ 1 ⁄ 8 ", W+ 1 ⁄ 8 ", D+ 3 ⁄ 16 " PATTERNS
RSC040404**‡ RSC040404G** 16/16 4.00x4.00x4.00 (102x102x102) A
RSC040604**‡ RSC040604G** 16/16 6.00x4.00x4.00 (152x102x102) A
RSC060604** RSC060604G** 16/16 6.00x6.00x4.00 (152x152x102) A-B-A
RSC060804** RSC060804G** 16/16 8.00x6.00x4.00 (203x152x102) A-B-A
RSC080804** RSC080804G** 16/16 8.00x8.00x4.00 (203x203x102) A-B-A
RSC081004** RSC081004G** 16/16 10.00x8.00x4.00 (254x203x102) A-B-A
RSC101004** RSC101004G** 16/16 10.00x10.00x4.00 (254x254x102) B-A-F-F-A
RSC101204** RSC101204G** 16/16 12.00x10.00x4.00 (305x254x102) B-A-F-F-A
RSC121204** RSC121204G** 16/16 12.00x12.00x4.00 (305x305x102) B-A-F-F-A-B
RSC121504** RSC121504G** 16/16 15.00x12.00x4.00 (381x305x102) B-A-F-F-A-B
RSC181804** RSC181804G** 16/16 18.00x18.00x4.00 (457x457x102) A-B-A-F-F-A-B-A
RSC060606** RSC060606G** 16/16 6.00x6.00x6.00 (152x152x152) A-B-A
RSC060806** RSC060806G** 16/16 8.00x6.00x6.00 (203x152x152) A-B-A
RSC080806** RSC080806G** 16/16 8.00x8.00x6.00 (203x203x152) A-B-A
RSC081006** RSC081006G** 16/16 10.00x8.00x6.00 (254x203x152) A-B-A
RSC081206** RSC081206G** 16/16 12.00x8.00x6.00 (305x203x152) A-B-A
RSC101006** RSC101006G** 16/16 10.00x10.00x6.00 (254x254x152) B-A-F-F-A
RSC101206** RSC101206G** 16/16 12.00x10.00x6.00 (305x254x152) B-A-F-F-A
RSC121206** RSC121206G** 16/16 12.00x12.00x6.00 (305x305x152) B-A-F-F-A-B
RSC121506** RSC121506G** 16/16 15.00x12.00x6.00 (381x305x152) B-A-F-F-A-B
RSC121806** RSC121806G** 16/16 18.00x12.00x6.00 (457x305x152) B-A-F-F-A-B
RSC151806** RSC151806G** 16/16 18.00x15.00x6.00 (457x381x152) A-B-A-F-F-A-B-A
RSC181806** RSC181806G** 16/16 18.00x18.00x6.00 (457x457x152) A-B-A-F-F-A-B-A
RSC182406** RSC182406G** 16/16 24.00x18.00x6.00 (610x457x152) A-B-A-F-F-A-B-A
RSC242406** RSC242406G** 14/14 24.00x24.00x6.00 (610x610x152) A-B-A-F-F-A-B-A
RSC121208 RSC121208G 16/16 12.00x12.00x8.00 (305x305x203) No Knockouts
RSC121808 RSC121808G 16/16 18.00x12.00x8.00 (457x305x203) No Knockouts
RSC151808 RSC151808G 16/16 18.00x15.00x8.00 (457x381x203) No Knockouts
RSC181808 RSC181808G 16/16 18.00x18.00x8.00 (457x457x203) No Knockouts
RSC182408 RSC182408G 14/14 24.00x18.00x8.00 (610x457x203) No Knockouts
RSC202408 RSC202408G 14/14 24.00x20.00x8.00 (610x508x203) No Knockouts
RSC242408 RSC242408G 14/14 24.00x24.00x8.00 (610x610x203) No Knockouts
RSC243008 RSC243008G 14/14 30.00x24.00x8.00 (762x610x203) No Knockouts
RSC121210 RSC121210G 16/16 12.00x12.00x10.00 (305x305x254) No Knockouts
RSC161610 RSC161610G 16/16 16.00x16.00x10.00 (406x406x254) No Knockouts
RSC242412 RSC242412G 14/14 24.00x24.00x12.00 (610x610x305) No Knockouts
RSC243612 RSC243612G 12/12 36.00x24.00x12.00 (914x610x305) No Knockouts
RSC303012 RSC303012G 12/12 30.00x30.00x12.00 (762x762x305) No Knockouts
RSC303612 RSC303612G 12/12 36.00x30.00x12.00 (914x762x305) No Knockouts
RSC363612 RSC363612G 12/12 36.00x36.00x12.00 (914x914x305) No Knockouts
RSC242416 RSC242416G 14/14 24.00x24.00x16.00 (610x610x406) No Knockouts
RSC303016 RSC303016G 12/12 30.00x30.00x16.00 (762x762x406) No Knockouts
RSC363616 RSC363616G 12/12 36.00x36.00x16.00 (914x914x406) No Knockouts
RSC364816 RSC364816G 12/12 48.00x36.00x16.00 (1219x914x406) No Knockouts
R S C S E R I E S S C R E W C O V E R E N C L O S U R E S
‡Not UL Listed. No hasp or meter seal.
Must specify CSA Label when ordering.
Notes: For removal of cover, move downward, then
outward.
4.00x4.00x4.00 only has 2 mounting holes
centered horizontally.
4.00x6.00x4.00 only has 2 mounting holes
centered vertically.
Note: 8", 10" and 12" deep enclosures do not
have mounting embosses in back of
enclosure, only mounting holes.
Note: Second numerical value of catalog #
represents height.
**Also available with No Knockouts
Add “NK” to Catalog Number
RSC060604
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
(+) All products, unless otherwise denoted by a (+), are: H+1/8", W+1/8", D+3/16"
