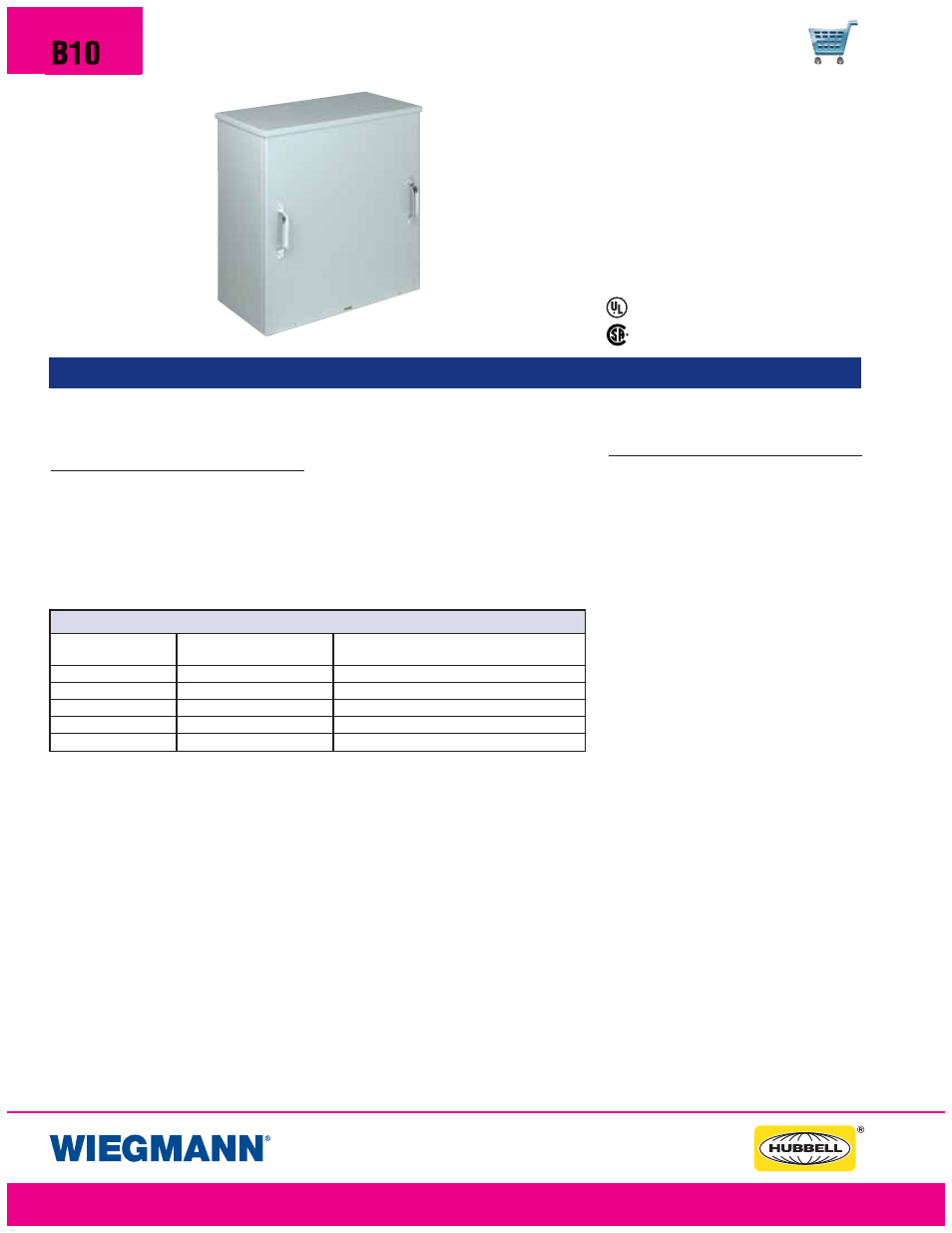

W C T S E R I E S E N C L O S U R E S
N E M A 3 R S C R E W C O V E R W A L L - M O U N T
B10
F E AT U R E S - S P E C I F I C AT I O N S
Applications
Designed for use as transformer
housings, junction boxes, and service
boxes.
Construction
• Drip shield top and smooth seamless
sides and front
• A slip-on removable cover is
securely fastened with plated
screws located along bottom edge
Industry Standards
UL 50, Types 1 & 3R
CSA Certified, Type 1 & 3R
NEMA/EEMAC Type 1 & 3R
U L F i l e E 2 3 5 5 3
C S A F i l e L L 6 6 0 7 8
CATALOG BODY/DOOR ENCLOSURE SIZE
NUMBER STEEL GAUGE H X W X D
W C T 2 4 2 4 1 2 1 4 / 1 4 2 4 . 0 0 x 2 4 . 0 0 x 1 2 . 0 0 ( 6 1 0 x 6 1 0 x 3 0 5 )
W C T 3 0 3 0 1 2 1 2 / 1 2 3 0 . 0 0 x 3 0 . 0 0 x 1 2 . 0 0 ( 7 6 2 x 7 6 2 x 3 0 5 )
W C T 3 6 3 0 1 2 1 2 / 1 2 3 6 . 0 0 x 3 0 . 0 0 x 1 2 . 0 0 ( 9 1 4 x 7 6 2 x 3 0 5 )
W C T 3 6 3 6 1 2 1 2 / 1 2 3 6 . 0 0 x 3 6 . 0 0 x 1 2 . 0 0 ( 9 1 4 x 9 1 4 x 3 0 5 )
W C T 4 8 3 6 1 6 1 2 / 1 2 4 8 . 0 0 x 3 6 . 0 0 x 1 6 . 0 0 ( 1 2 2 0 x 9 1 4 x 4 0 6 )
W C T S E R I E S S C R E W C O V E R E N C L O S U R E S
• No gasketing is required
• Mounting holes on back of cabinet
• Door handles provided
• Hasp for padlocking and provisions
for meter seal are provided
• Grounding provisions provided
• For removal of cover, move down-
ward, then outward
Finish
• ANSI-61 gray polyester powder
inside and out
Accessories
• See pages J1-J22
WCT242412
