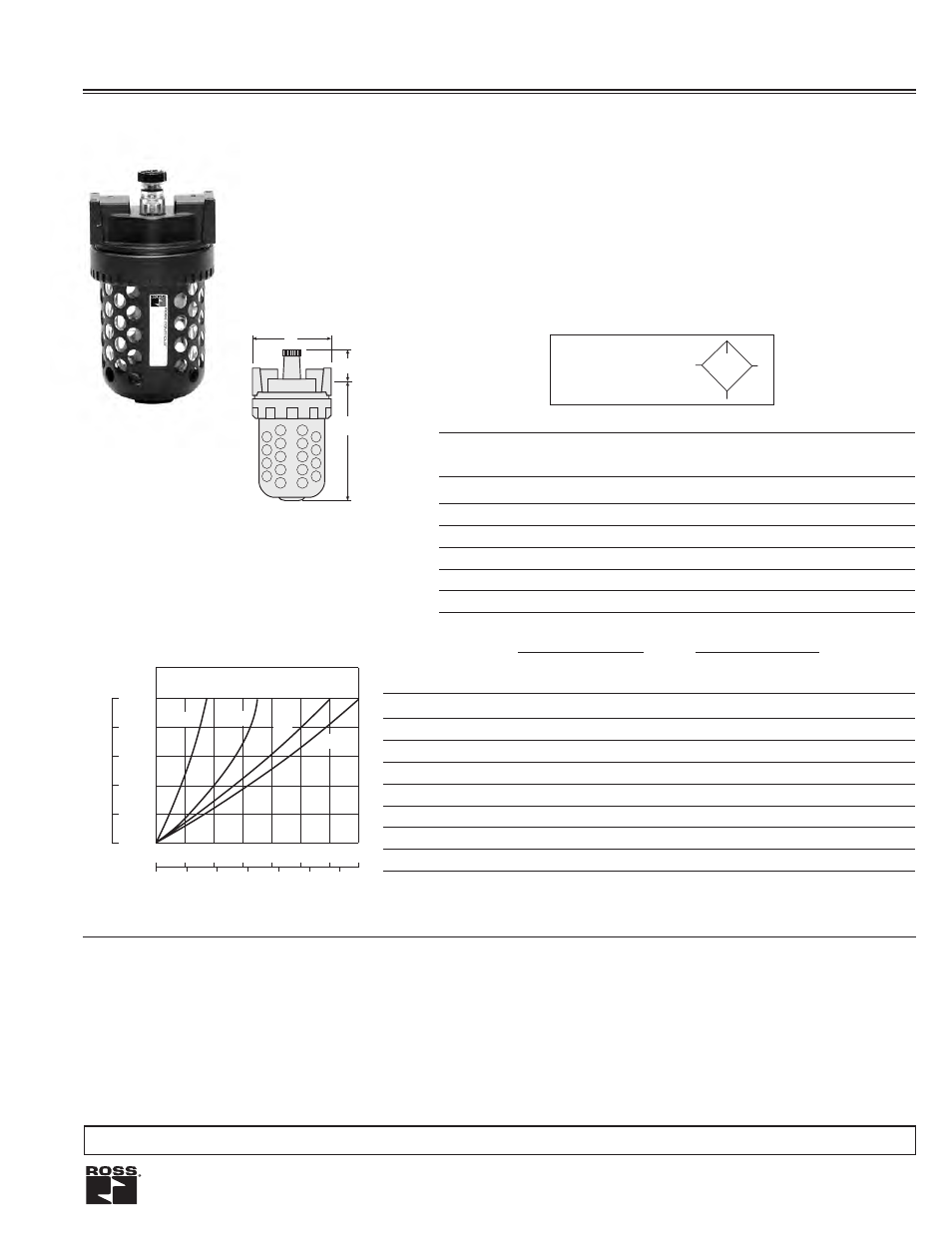

Ross Controls LUBRICATORS - Manual (Page 4)

www.rosscontrols.com 59
FEATURES:
• Modular or inline mounting
• High-strength polycarbonate plastic bowl with steel shatterguard;
optional zinc bowl with sight glass
• Sight-feed or wick-feed design
• External adjusting knob; removable for tamper resistance
0 20 40 60 80 100 120 140
1/4 3/8
3/4
0
1
2
3
4
psi
5
PRESSURE DROP
0
0.07
0.14
0.21
0.28
bar
0.35
scfm
FLOW
l/s 0 10 20 30 40 50 60
1/2
Inlet Pressure: 100 psig (6.9 bar)
FLOW CHART
Minimum Flow: 2 scfm (0.94 l/s)
Ports: 1/4, 3/8, 1/2, 3/4
Flow to 140 scfm
FULL-SIZE Lubricators
A
B
C
STANDARD SPECIFICATIONS (for products on this page):
Ambient/Media Temperature:
Polycarbonate plastic bowl: 40° to 125°F (4° to 52°C).
Metal bowl: 40° to 175°F (4° to 79°C).
Adjusting Knob: Acetal.
Body: Zinc.
Bowl: 8-ounce (236.6-ml) capacity polycarbonate plastic with steel
shatterguard; optional zinc bowl with sight glass.
Bowl Ring: Aluminum. Fluid Media: Compressed air.
Inlet Pressure:
Polycarbonate plastic bowl: 150 psig (10.3 bar) maximum.
Metal bowl: 200 psig (13.8 bar) maximum.
Oil Adjustment: External, tamper-resistant.
Sight Dome: Nylon. External, tamper-proof.
Seals: Nitrile.
Threads: NPT standard, BSPP, SAE. For BSPP threads, add a
“C” prefix to the model number, e.g., C5111B2008.
DIMENSIONS inches (mm) Weight
Bowl A B C Depth lb (kg)
Sight-Feed Design
Standard Plastic 3.5 (89) 5.2 (132) 1.3 (32) 3.5 (89) 2.06 (0.94)
Standard Metal 3.5 (89) 5.3 (135) 1.3 (32) 3.5 (89) 2.90 (1.32)
Wick-Feed Desig n
Standard Plastic 3.5 (89) 5.2 (132) 0.7 (17) 3.5 (89) 2.25 (1.02)
Standard Metal 3.5 (89) 5.3 (135) 0.7 (17) 3.5 (89) 2.85 (1.30)
1/4 35 (16.5) 5111B2008 5112B2008 — — 8.0 (236.6)
1/4 35 (16.5) — — 5111B2014 5112B2014 8.0 (236.6)
3/8 68 (32.1) 5111B3008 5112B3008 — — 8.0 (236.6)
3/8 68 (32.1) — — 5111B3014 5112B3014 8.0 (236.6)
1/2 120 (56.6) 5111B4008 5112B4008 — — 8.0 (236.6)
1/2 120 (56.6) — — 5111B4014 5112B4014 8.0 (236.6)
3/4 140 (66.1) 5111B5008 5112B5008 — — 8.0 (236.6)
3/4 140 (66.1) — — 5111B5014 5112B5014 8.0 (236.6)
*To order a lubricator with quick-fill cap, change the third digit from the end of the model number
from “0” to “1,” e.g., model 5111B2008 with quick-fill cap becomes model 5111B2108.
**Polycarbonate plastic bowl includes metal bowl guard.
Sight-feed Models* Wick-feed Models*
Port Air Flow Plastic Metal Plastic Metal Reservoir
Size scfm (l/s) Bowl** Bowl Bowl** Bowl oz (ml)
IMPORTANT NOTE: Please read carefully and thoroughly all of the CAUTIONS on the inside back cover.
ISO Symbol
Lubricator
