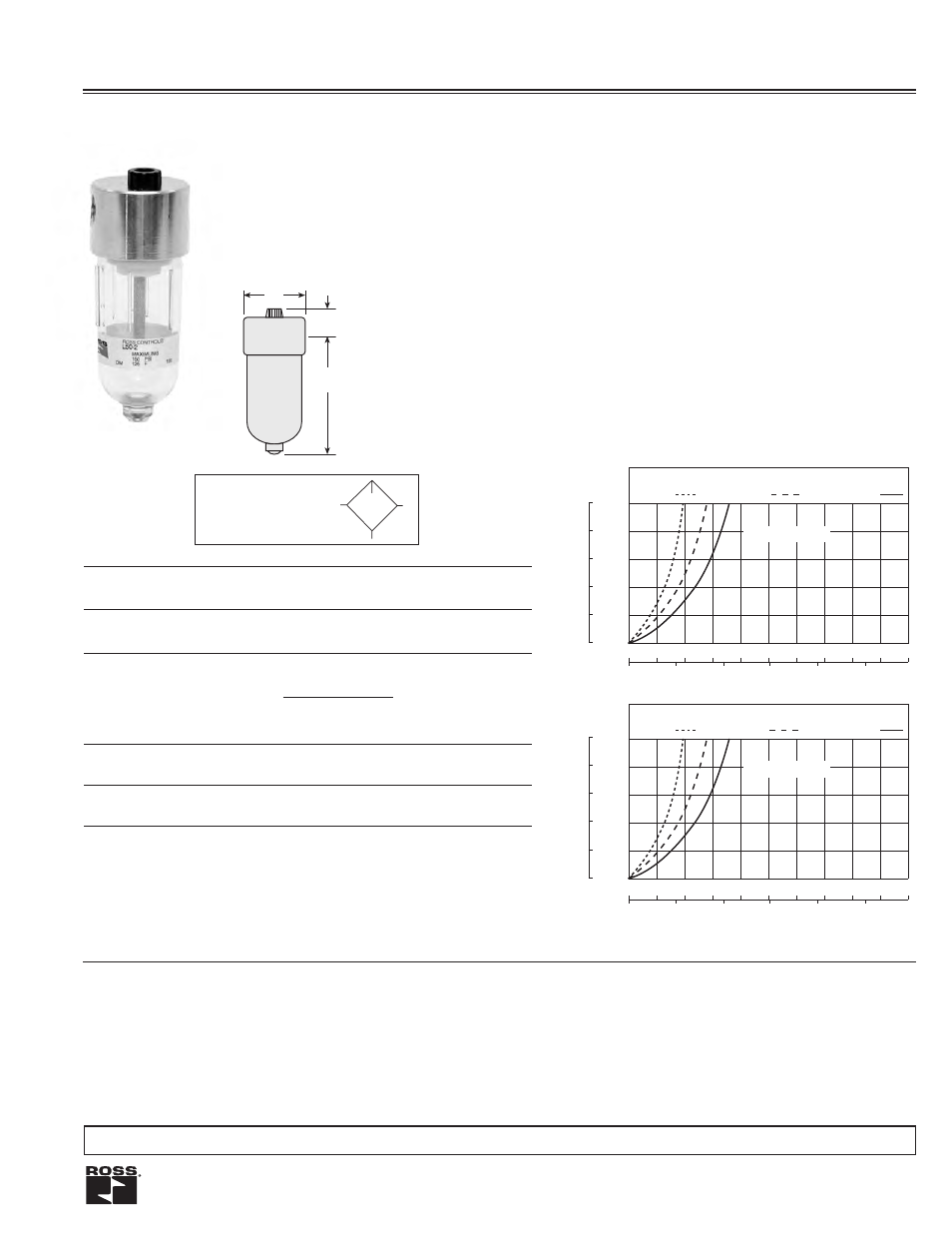

MINIATURE Lubricators
FEATURES:
• Inline mounting
• High-strength polycarbonate plastic bowl; optional aluminum bowl
• Low-flow models are designed to deliver oil in extremely low-flow less
than 1 scfm (0.5 l/s) situations
• Wick-feed design in both high-flow and low-flow lubricators
• Internal tamper-resistant adjustment
Ports: 1/8 & 1/4
Flow to 25 scfm
0
0
1
2
3
4
psi
5
PRESSURE DROP
0
0.07
0.14
0.21
0.28
bar
0.35
scfm
FLOW
l/s 0 2
145 (10.0) 91 (6.3) 36 (2.5)
Inlet Pressure psig (bar)
0
0
1
2
3
4
psi
5
PRESSURE DROP
0
0.07
0.14
0.21
0.28
bar
0.35
scfm
FLOW
l/s 0 10
1/8, 1/4 Ports
4 6 8
20 15 10 5 25
FLOW CHARTS
0
0
1
2
3
4
psi
5
PRESSURE DROP
0
0.07
0.14
0.21
0.28
bar
0.35
scfm
FLOW
l/s 0 2
145 (10.0) 91 (6.3) 36 (2.5)
LOW FLOW MODELS
Inlet Pressure psig (bar)
0
0
1
2
3
4
psi
5
PRESSURE DROP
0
0.07
0.14
0.21
0.28
bar
0.35
scfm
FLOW
l/s 0
25
10
1/8, 1/4 Ports
4 6 8
20 15 10 5
Minimum Flow: 1 scfm (0.47 l/s)
Minimum Flow: 1/8 port, 2 scfm (0.94 l/s)
1/4 port, 6 scfm (2.8 l/s)
A
B
C
1/8 High Flow 5111B1010 5112B1010 2.0 (59)
1/8 Low Flow 5111B1012 5112B1012 2.0 (59)
1/4 High Flow 5111B2010 5112B2010 2.0 (5.9)
1/4 Low Flow 5111B2012 5112B2012 2.0 (5.9)
Port Plastic Metal Reservoir
Size Type Bowl Bowl oz (ml)
*To order a lubricator with quick-fill cap, change the third digit from the end of the
model number from “0” to “1,” e.g., model 5111B1010 with quick-fill cap becomes
model 5111B1110.
NOTE: See Compatible Lubricants and CAUTIONS about polycarbonate
plastic bowls on page 80.
Model Numbers*
STANDARD SPECIFICATIONS (for products on this page):
Ambient/Media Temperature:
Polycarbonate plastic bowl: 40° to 125°F (4° to 52°C).
Metal bowl: 40° to 150°F (4° to 66°C).
Body: Aluminum.
Bowl: 2-ounce (60-ml) capacity polycarbonate plastic; optional
aluminum bowl.
Fluid Media: Compressed air.
Inlet Pressure:
Polycarbonate plastic bowl: 150 psig (10.3 bar) maximum.
Metal bowl: 200 psig (13.8 bar) maximum.
Oil Adjustment: Internal, tamper-proof.
Seals: Nitrile.
Threads: NPT standard, BSPP. For BSPP threads, add a “C”
prefix to the model number, e.g., C5111B1010.
DIMENSIONS inches (mm) Weight
Bowl A B C Depth lb (kg)
Plastic 1.6 (41) 3.6 (91) 0.7 (17) 1.6 (41) 0.21 (0.10)
Metal 1.6 (41) 3.8 (97) 0.7 (17) 1.6 (41) 0.21 (0.10)
IMPORTANT NOTE: Please read carefully and thoroughly all of the CAUTIONS on the inside back cover.
ISO Symbol
Lubricator
