Male Port Kits
Used to connect modular to
non-modular units. Also allows
90-degree connections using
side, bracket, or extra port kits.
Port Size Part Number
1/4
893K77
3/8 894K77
1/2 895K77
3/4
896K77
Female Port Kits
Used to connect to piping at
inlet or outlet.
Port Size Part Number
1/4
897K77
3/8
898K77
1/2
899K77
3/4
900K77
MID-SIZE and FULL-SIZE Units
Mounting Bracket Kit 915K77
L-shaped metal brackets (not illustrated) are used for wall mounting
modular assemblies. Kit contains two brackets and four screws for
attaching brackets to tops of modular units.

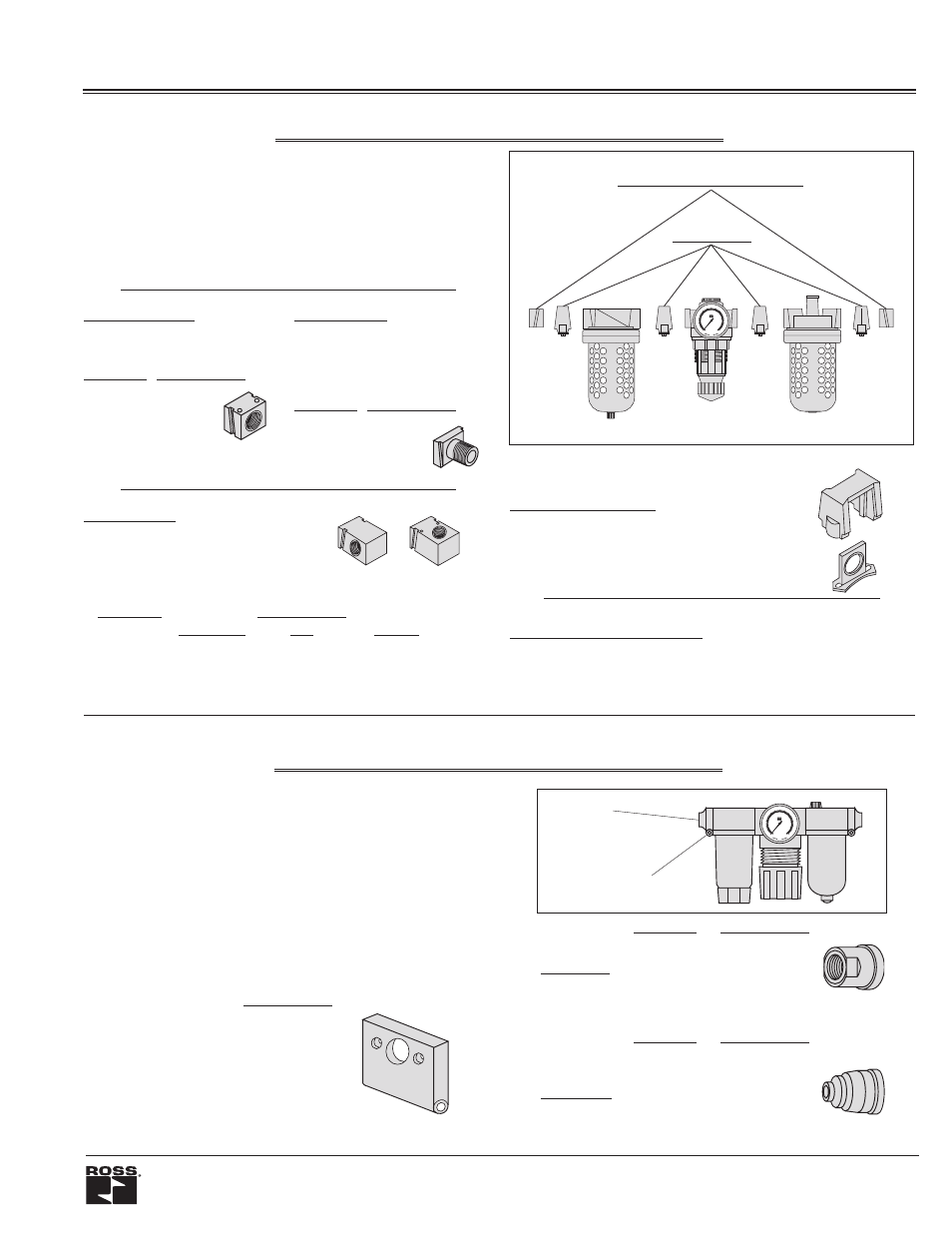

The modular designs of the MID-SIZE and FULL-SIZE series offer
maximum flexibility in customizing FRL assemblies. As shown at the
right, connector kits are required to interconnect units. Various port
kits (shown below) can be used to connect the assemblies to the
inlet and outlet piping. Note that all FRL components have threaded
ports so that conventional pipe fittings may be used where desired.
Connector Kit 892K77
Used to connect units to one another as well
as to any of the ports shown on this page.
Side Port Kits
Functions as a 90-degree female port.
Three types:
(1) port at front or back; (2) port at top; (3) port at bottom.
Port Size
Part Number
Front/Back
Top
Bottom
1/4
902K77 906K77 1000K77
3/8
903K77 907K77 1001K77
1/2
904K77 908K77 1002K77
3/4
905K77 909K77 1003K77
BANTAM Units
BANTAM modular units use end plates secured with screws to hold
the pipe or tubing ports (see below), and also to serve as mounting
brackets. Short screws are used to secure the end plates when a
single BANTAM unit is used. If two or more units are combined, long
screws extend through an end plate and thread into the next unit.
Screw kits required are as follows:
Single Unit: Two short screw kits.
Two-Unit Combination: One each short screw kit and long
screw kit.
Three-Unit Combination: Two long screw kits.
Port Size
Part Number
1/8 NPT
862K77
Pipe Ports
1/4 NPT
863K77
1/8 BSP
D864K77
1/4 BSP
D865K77
Port Size
Part Number
1/4
866K77
3/8
867K77
Tube Ports
4 mm
868K77
6 mm
869K77
8 mm
870K77
10 mm
871K77
End Plate
Pipe or
Tubing Port
7
6
5
4
3
2
1
0
8
9
1
0
1
1
1
2
1
3
14
100
80
60
40
20
0
120
140
160
180
200
bar
lb/in2
fi
7
6
5
4
3
2
1
0
8
9
1
0
1
1
1
2
1
3
14
100
80
60
40
20
0
120
140
160
180
200
bar
lb/in2
fi
Connector
Kits 892K77
MID-SIZE and FULL-SIZE Modular Assembly
Female Port Kits or
other port kits shown below
Components for Modular Assembly
Part Number
END PLATE (1):
857K77
Short Screw (2):
858K77
Long Screw (2):
859K77
Small O-Rings:
860K77
(for inlet or mating ports
)
Large O-Rings:
861K77
(
for outlet or mating ports
)
