Series TW80000 Welding Hose Reels
www.reelcraft.com Page 3

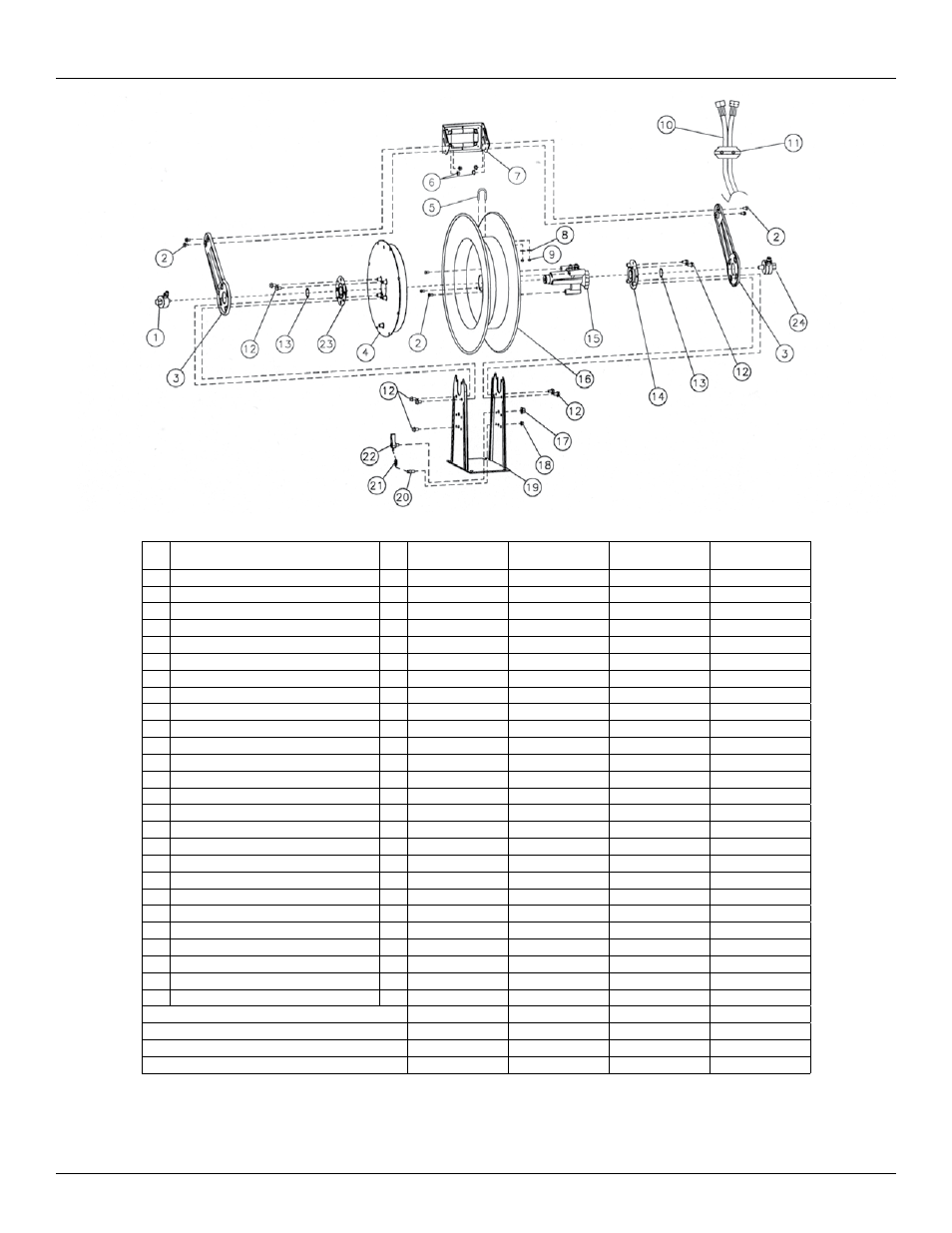

Item
#
Description
#
Req TW84000 OLPT TW84100 OLPT TW86000 OLPT TW86075 OLPT
1 Oxygen Swivel Assembly 1 S600534-1 S600534-1 S600534-1 S600534-1
2 5/16-18 x 1/2” Flange Screw 7 * * * *
3 Guide Arm 2 261299 261299 261299 261299
4 Spring and Case Assembly 1 S600645-2 S600645-2 S600645-2 S600645-2
5 U-bolt 1 * * * *
6 5/16-18 Locknut 4 * * * *
7 Roller Bracket Assembly 1 S600642 S600642 S600642 S600642
8 0.312 I.D. x 0.734 O.D. Washer 2 * * * *
9 1/4-20 Locknut 2 * * * *
10 Hose Assembly 1 None 601031-100 None 601040-75
11 Hose Bumper Assembly 1 None A8-HR1004-3 None A600521
12 3/8-16 x 5/8” Screw 9 * * * *
13 1 3/8” Snap Ring 2 * * * *
14 Flange w/Bearing and Nut-Sert Assembly 1 S600651 S600651 S600651 S600651
15 Ratchet, Flow Casting 1 261319-1 261319-1 261319-1 261319-1
16 Sheave Assembly 1 600649 600649 600649 600649
17 1/2-20 x 5/8” Hex Nut 1 * * * *
18 3/8-16 Hex Nut ** 1 * * * *
18 10-32 Nyloc nut 1 * * * *
19 Base and Upright Assembly 1 600641 600641 600641 600641
20 Latch Spring Stud ** 1 261351 261351 261351 261351
20 Shoulder screw 1 S393-2 S393-2 S393-2 S393-2
21 Latch Spring 1 S260067 S260067 S260067 S260067
22 Latch Pawl Assembly 1 S600675 S600675 S600675 S600675
23 Bearing and Flange Assembly 1 S600644 S600644 S600644 S600644
24 Fuel Gas Swivel Assembly 1 S600535-1 S600535-1 S600535-1 S600535-1
Hose I.D. and Length None 1/4” x 100’ None 1/4” x 75’
Reel Inlet Connection 9/16 - 18(M) 9/16 - 18(M) 9/16 - 18(M) 9/16 - 18(M)
Max. Operating Pressure 200 PSI 200 PSI 200 PSI 200 PSI
Max. Operating Temperature 210° F 210° F 210° F 210° F
*Included in hardware kit #600654
**Prior to March 2012
