Series 7000 Spring Driven Hose Reels
www.reelcraft.com Page 3

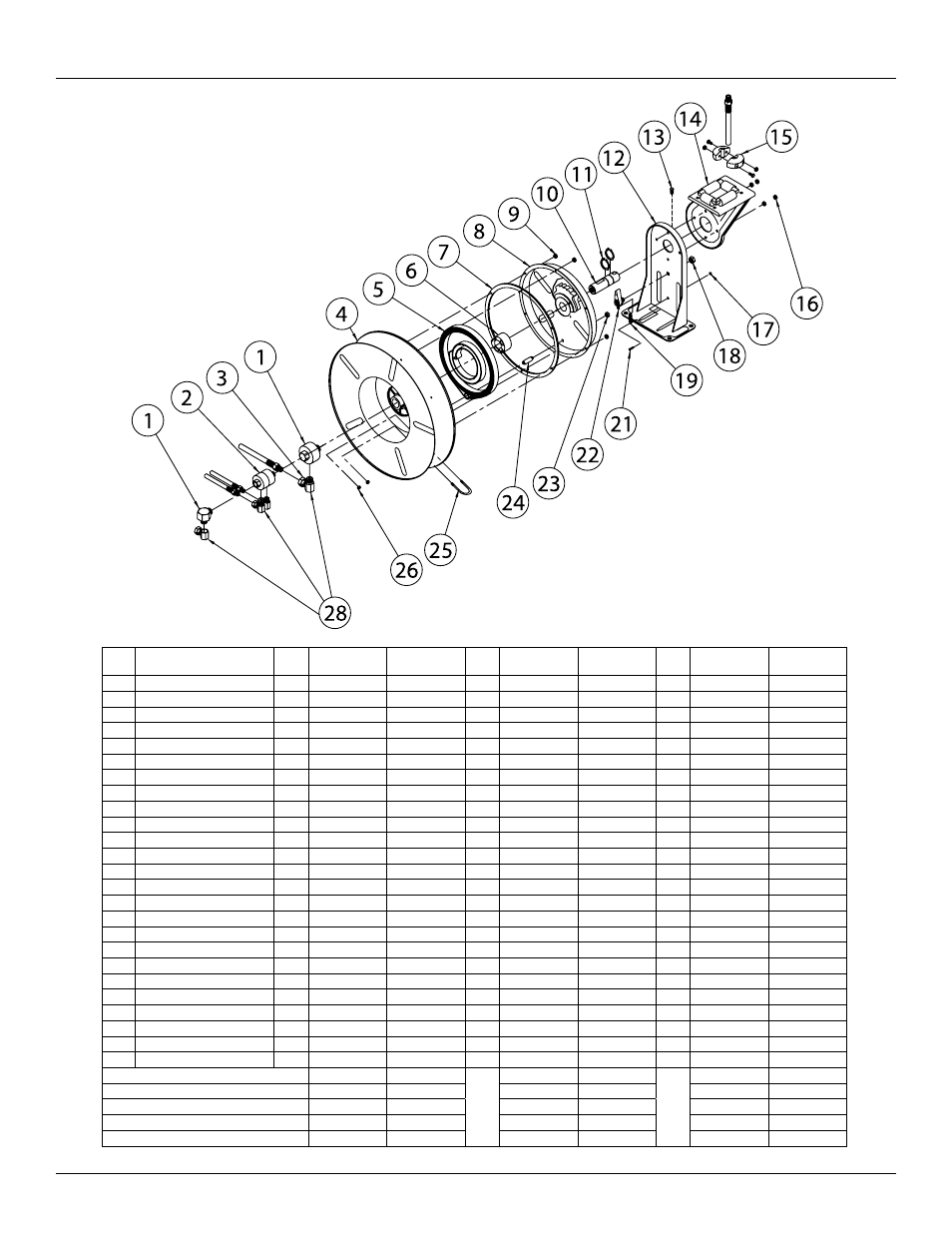

Item
#
Description
#
Req. 7800 OLS
7800 OLS-S
#
Req. 7600 OMS55
7600
OMS-S55
#
Req. 7800 OMS 7800 OMS-S
1 Swivel Assembly 1 600375-2 600375-2 1 600112-4 600112-4 1 600111-2 600111-2
3 90° Ell 1 S160-4 S160-4 1 S163-3 S163-3 1 S163-4 S163-4
4 Sheave Assembly 1 600063 600063 1 600360 600360 1 600063 600063
5 Drive Spring Assembly 1 S260037 S260037 1 S600361 S600361 1 S260053 S260053
6 Spring Arbor Assembly 1 S600621 S600621 1 S600621 S600621 1 S600621 S600621
7 Gasket 1 S260069 S260069 1 S260069 S260069 1 S260069 S260069
8 Spring Case Assembly 1 S600065-1 S600065 1 S600065-1 S600065 1 S600065-1 S600065
9 10-32 Hex Locknut 6 260239 260239 6 260239 260239 6 260239 260239
10 Main Shaft 1 602283 602283 1 261046 261046 1 602283 602283
11 1 1/4” Snap Ring 2 S147-26 S147-26 2 S147-26 S147-26 2 S147-26 S147-26
12 Base Assembly 1 600067 600067 1 600067 600067 1 600067 600067
13 1/2-13 Set Screw 1 S47-64 S47-64 1 S47-64 S47-64 1 S47-64 S47-64
14 Guide arm with Rollers 1 S600068 S600068 1 S600068 S600068 1 S600068 S600068
15 Hose Bumper Assembly 1 None None 1 None None 1 None None
16 5/16-18 Locknut 4 S73-5 S73-5 4 S73-5 S73-5 4 S73-5 S73-5
17 10-32 x 3/8” Nyloc Nut 1 S95-22 S95-22 1 S95-22 S95-22 1 S95-22 S95-22
18 1/2-20 x 5/8” Hex Nut 1 S74-108 S74-108 1 S74-108 S74-108 1 S74-108 S74-108
19 Latch Spring 1 S260067 S260067 1 S260067 S260067 1 S260067 S260067
21 10-32 Shoulder Screw 1 S392-2 S392-2 1 S392-2 S392-2 1 S392-2 S392-2
22 Latch Pawl Assembly 1 S600069-1 S600069 1 S600069-1 S600069 1 S600069-1 S600069
23 3/8-24 Jam Nut 1 S74-106 S74-106 1 S74-106 S74-406 1 S74-106 S74-106
24 Spring Case Stud 1 260256 260256 1 260256 260256 1 260256 260256
25 U-bolt 1 260242 260242 1 260242 260242 1 260242 260242
26 1/4-20 x 3/8” Locknut 4 S96-13 S96-13 2 S96-13 S96-13 4 S96-13 S96-13
28 Swivel Union 1 None None 1 None None 1 None None
Hose Assembly None None None None None None
Hose I.D. x Length None None None None None None
Reel Inlet Connection 1/2” FPT 1/2” FPT 3/8” FPT 3/8” FPT 1/2” FPT 1/2” FPT
Max. Operating Pressure 500 PSI 500 PSI 3000 PSI 3000 PSI 3000 PSI 3000 PSI
Max. Operating Temperature 210° F 210° F 210° F 210° F 210° F 210° F
