Series MD80000 Spring Driven Hose Reels
www.reelcraft.com Page 3

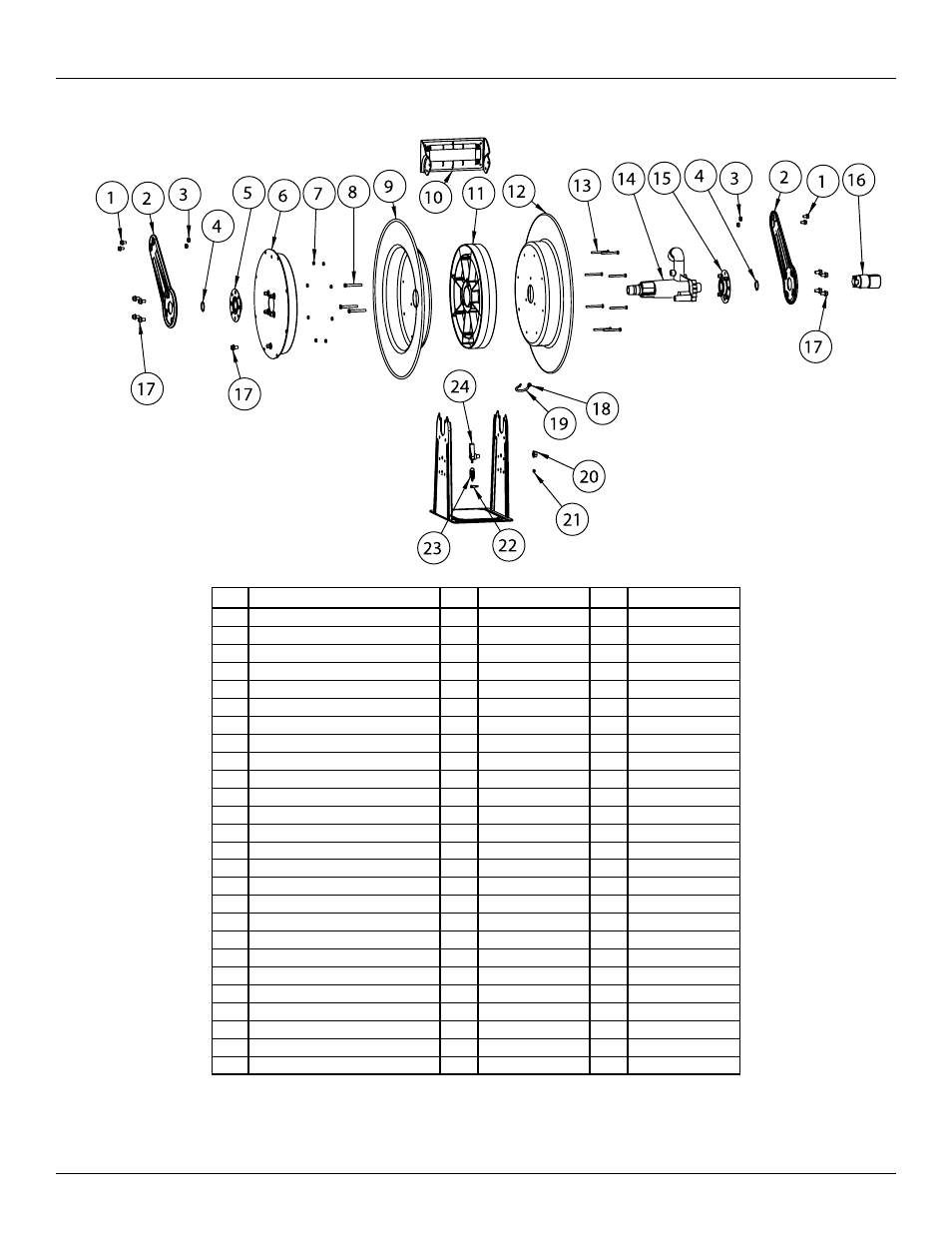

ITEM DESCRIPTION QTY. MD83000 OLP118 QTY. MD84000 OLP118
1 5/16-18 X 5/8 Machine Screw 9 * 9 *
2 Guide Arm 2 261299 2 261299
3 5/16-18 Lock Nut 4 * 4 *
4 1-3/8 Snap Ring 2 * 2 *
5 Hub & Bushing Ass'y 1 S600664 1 S600664
6 Spring & Case Ass'y 1 600645-3-35 1 600645-3-35
7 1/4-20 Nyloc Nut 8 300070 8 300070
8 5/16-18 X 2-1/2 Hex Cap Screw 3 S2-511 3 S2-511
9 Sheave Spring Case Side 1 261308-35 1 261308-35
10 Roller Bracket Ass'y 1 S600705 1 S600705
11 Spool Spacer 1 261393 1 261393
12 Sheave Hose Opening Side 1 261307-35 1 261307-35
13 1/4-20 X 2-1/2 Machine Screw 8 S2-411 8 S2-411
14 BSPT Flow Ratchet & Shaft Casting 1 261590-3 1 261591-4
15 Flange W/Nut-Sert Bearing Ass'y 1 S600651 1 S600651
16 Swivel Ass'y 1 602487 1 600683
17 3/8-16 X 5/8 Machine Screw 9 * 9 *
18 1/4-20 Lock Nut W/Nylon Insert 2 261650-1 1 261650-1
19 U-Bolt 1 261395 1 5-117440
20 1/2-20 Hex Flange Nut 1 * 1 *
21 3/8-16 Hex Flange Nut ** 1 * 1 *
21 10-32 Nyloc Nut 1 * 1 *
22 Latch Spring Stud ** 1 261351 1 261351
22 Shoulder Screw 1 S393-2 1 S393-2
23 Latch Pawl Spring 1 S260067 1 S260067
24 Latch Pawl Ass'y 1 S600675 1 S600675
*Included in hardware kit part number 602504
**Prior to March 2012
