Operating instructions, Dimensional data, Personal safety

Personal injury and/or equipment damage
may result if proper safety precautions are
not observed.
• Ensure that reel is properly installed
before connecting input and output
hoses.
• Bleed fluid/gas pressure from system
before servicing reel.
• Before connecting reel to supply line,
ensure that pressure does not exceed
maximum working pressure rating of
reel.
• Remember, even low pressure is very
dangerous and can cause personal in-
jury or death.
• Be aware of machinery and personnel
in work area.
• If a leak occurs in the hose or reel, re-
move system pressure immediately.
• A high tension spring assembly is con-
tained within the reel. Exercise extreme
caution.
• Pull hose from reel by grasping the
hose itself, not the control valve.
• If reel ceases to unwind or rewind,
remove system pressure immediately.
Do not pull or jerk on hose!
• Treat and respect the hose reel as any
other piece of machinery, observing all
common safety practices.
Operating Instructions
Series MD80000 Spring Driven Hose Reels
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
[email protected] • www.reelcraft.com
Form# 1241-223 Rev: 5/2012
MD83000 OLP118
MD84000 OLP118

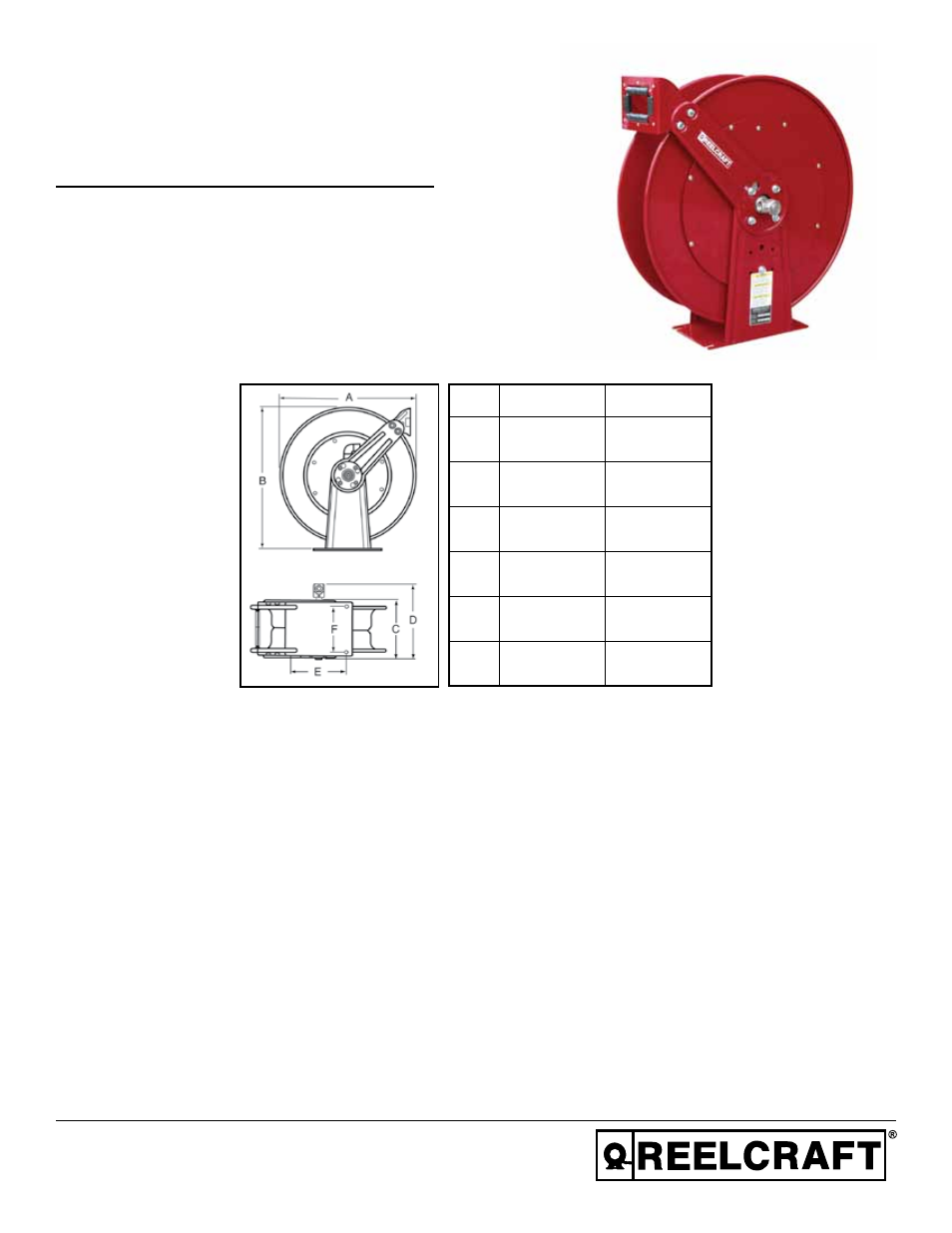

Dimensional Data
Part # MD83000 OLP118 MD84000 OLP118
A
24”
24”
B
25.375”
25.375”
C
9.375”
9.375”
D
14.25”
15.25”
E
10.5”
10.5”
F
7.875”
7.875”
Personal Safety
IMPORTANT
Read this manual carefully before installing,
operating or servicing this equipment.
Four 1/2” diameter mounting holes
