Reelcraft Series 5005 Spring Driven Hose Reels (Low and Medium Pressure xxxxOLP, xxxxOMP) - Manual (Page 2)

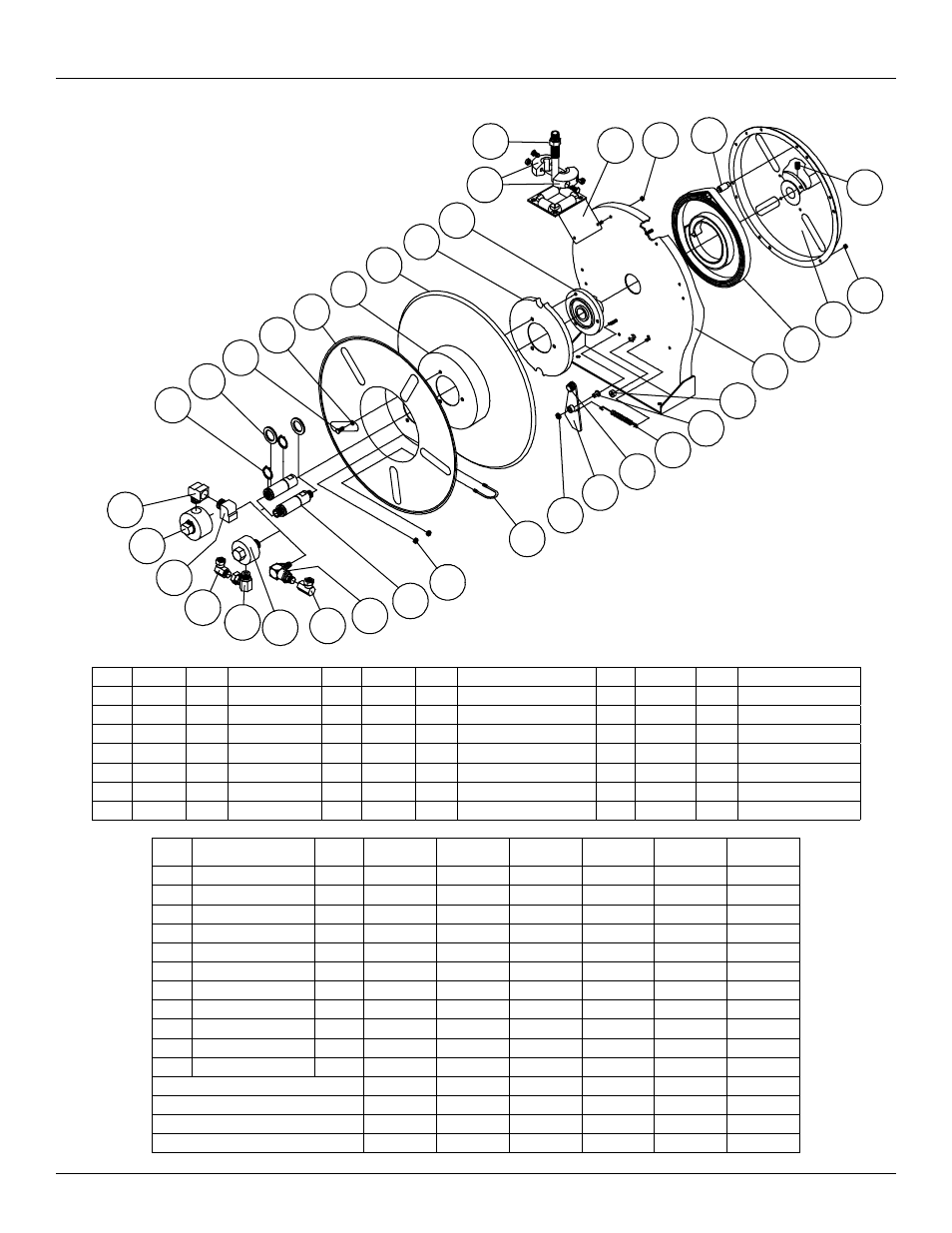

Series 5005 Spring Driven Hose Reels
Page 2 www.reelcraft.com
Item # Part # # Req. Description Item # Part # # Req. Description Item # Part # # Req. Description
1 300031 2 1” Snap Ring 15 300006 1 3/8-16 x 1/2” Set Screw 22 400020 1 O-Ring
2 300034 2 Spacing Washer 16 600094 1 Spring Case & Hub Ass’y 23 S400109 1 Latch Plate Assembly
5 260149 1 Reel Flange 17 600050 1 Drive Spring Assembly 24 3-117440 1 U-Bolt Hose Clamp
7 260151 1 Sheave Disk 18 600029 1 Base Assembly 26 261650-1 2 1/4-20 Nyloc Nut
8 500019 1 Latch Cam 19 400021 1 Latch Bumper 31 S82-15 1 Nyloc Nut 10-32 x 3/8”
13 300011 8 Hex Lock Nut 20 400012 1 Latch Bushing
14 261360 1 Spring Case Stud 21 400018 1 Latch Spring
Item # Description # Req. A5805 OLP A5835 OLP A5806 OLP A5850 OLP A5805 OMP A5835 OMP
3 Hex Screw 3 S295-102 S295-102 S2-48 S2-48 S295-102 S295-102
4 Lockwasher 3 None None 902016 902016 None None
6 Spacer 1 None None 260445 260445 None None
9 Spring Arbor 1 260648 260648 400017 400017 260648 260648
10 Hose Bumper Assembly 1 None A2-HR1004-3 None A2-HR1004-3 None A2-HR1004-3
11 Hose Ass’y 1 None 601021-35 None 601022-50 None 37-260043
12 Guide Arm Assembly 1 500107 500107 600247 600247 500107 500107
27 Main Shaft 1 500008 500008 261240 261240 500008 500008
28 Swivel Assembly 1 600915 600915 600920 600920 602032 602032
29 90° Elbow 1 300010 300010 300010 300010 S257-26 S257-26
30 90° Elbow 1 300010 300010 300010 300010 S257-26 S257-26
Hose I.D. and Length None 1/2” x 35’ None 1/2” x 50’ None 1/2” x 35’
Reel Inlet Connection 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T.
Max. Operating Pressure 500 P.S.I. 300 P.S.I. 500 P.S.I. 300 P.S.I. 3000 P.S.I. 2000 P.S.I.
Max. Operating Temperature 210° F 150° F 210° F 150° F 210° F 210° F
1
2
3
4
5
6
29
28
30
30
29 28 29
28
27
26
7
8
9
24
10
11
12
13
14
15
13
16
17
18
19
20
21
22
23
31
