Series 5000 Spring Driven Hose Reels
Page 2 www.reelcraft.com

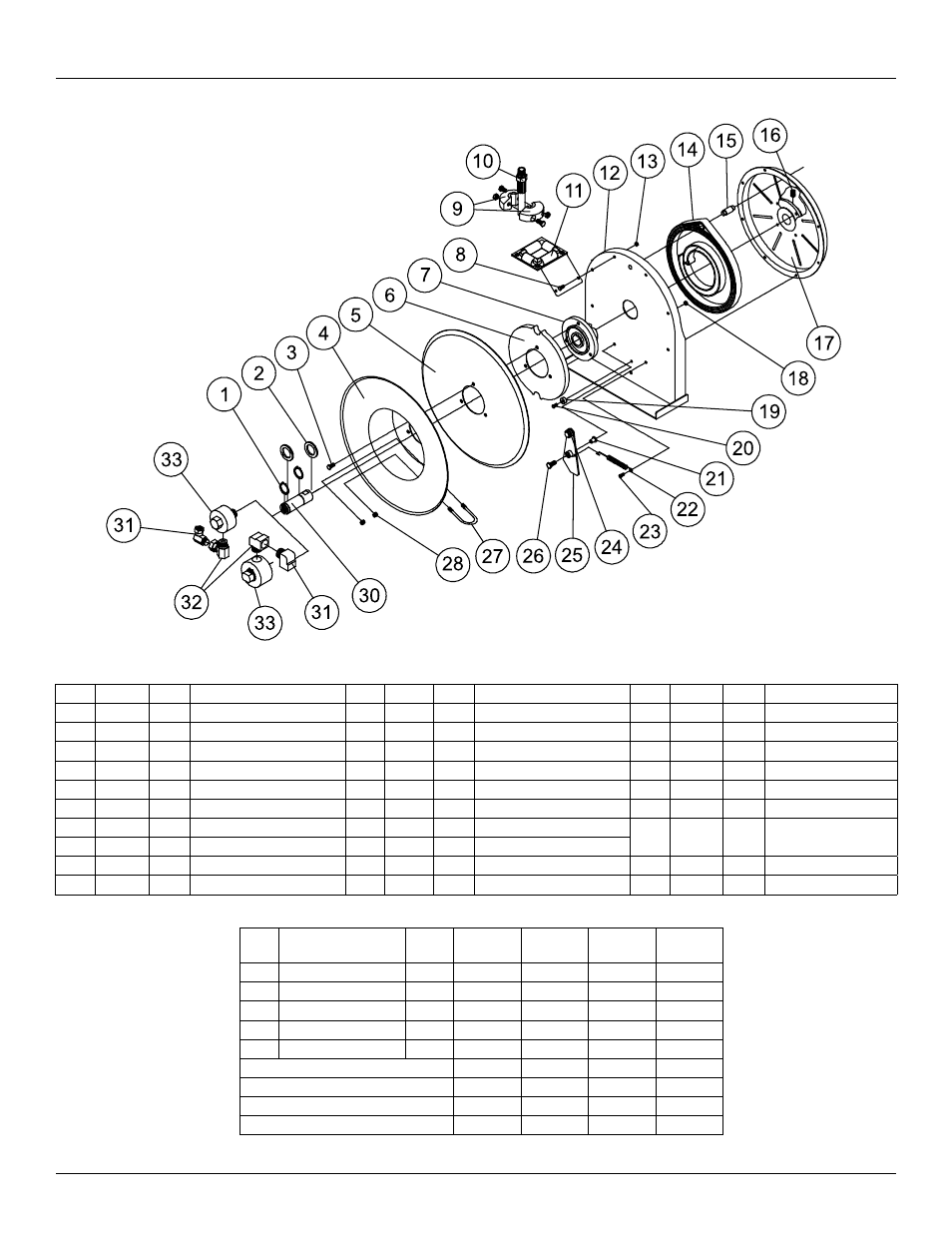

Item # Part # # Req. Description Item # Part # # Req. Description Item # Part # # Req. Description
1 300031 2 1” Snap Ring 13 S300011 7 Hex Lock Nut 23 300001 5 10-32 x 3/8” Screw
2 300034 2 Spacing Washer 14 S505740 1 Drive Spring Assembly 24 400020 1 O-ring
3 S295-102 3 1/4-10 Hex Head Screw 15 S261360 1 Spring Case Stud 25 S400109 1 Latch Plate Assembly
4 260022 1 Flange Sheave 16 300006 1 3/8-16 x 1/2” Set Screw 26 300035 1 10-32 x 1” Mach. Screw
5 500006 1 Sheave Disk 17 S500103 1 Spring Case & Hub Assembly 27 3-117440 1 U-bolt Hose Clamp
6 S500019 1 Latch Cam 18 S82-15 1 10-32 x 3/8” Nyloc Nut 28 261650-1 2 1/4-20 Zinc Nyloc Nut
7 S260648 1 Spring Arbor 19 S400021 1 Latch Bumper
30 602305 1
Main Shaft & Snap Ring
Assembly
8 300002 2 10-32 x 1/2” Mach. Screw 20 S32-136 1 10-24 x 3/8” Self Tap Screw
11 S500107 1 Guide Arm & Roller Assembly 21 S400012 1 Latch Bushing
12 500101 1 Base Assembly 22 S400018 1 Latch Spring
Item # Description # Req.
Model
A5800 OLP
Model
A5825 OLP
Model
A5800 OMP
Model
A5825 OMP
9 Hose Bumper Assembly 1 None 2-HR1004-3 None 2-HR1004-3
10 Hose Assembly 1 None 601020-25 None 21-260043
31 Swivel Union 1 300010 300010 260749 260749
32 Swivel Union 1 300010 300010 S257-26 S257-26
33 Swivel Assembly 1 S600887-1 S600887-1 S600595-1 S600595-1
Hose I.D. and Length None 1/4” x 20’ 1/4” x 25’ 1/4” x 30’
Reel Inlet Connection 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T. 3/8” F.P.T.
Max. Operating Pressure 500 P.S.I. 300 P.S.I. 3250 P.S.I. 3250 P.S.I.
Max. Operating Temperature 210° F 150° F 210° F 210° F
