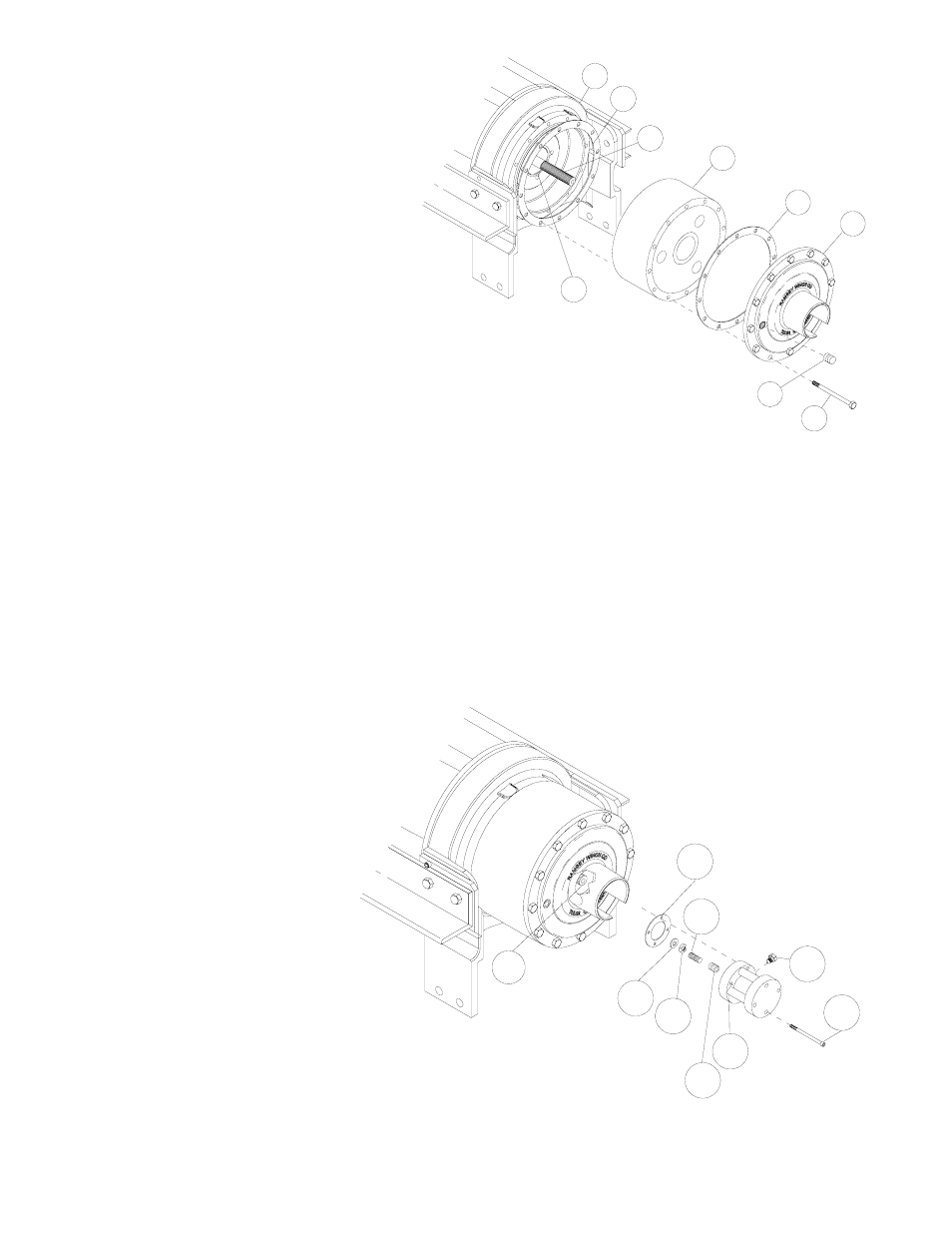

10. Apply RTV sealing compound to ring gear mount-

ing surface of end bearing (item #10). Place ring
gear onto end bearing, aligning holes in ring gear

with holes and gear housing end bearing. Use (2)
capscrews to temporarily secure ring gear to end
bearing.

Place (2) gear carrier assemblies into ring gear

meshing carrier gears with ring gear. Remove (2)
temporary capscrews, making sure that ring gear
and carrier assemblies are securely against end
bearing (item #10). Apply RTV sealing compound

to cover mounting surface of ring gear (item #3)
and attach cover to ring gear. Use (12) capscrews
(item #16) to secure gear box to gear housing
end bearing. Torque capscrews to 39 ft-lbs. each,
in criss-cross pattern.

11. Slide input sun gear over shifter shaft (item #11) and mesh with teeth of input carrier. Apply grease to input thrust

washer and place in ring gear. Place gasket (item #36) into position on gear box cover with sealer and attach adapter
to cover using (4) capscrews (item #22). Apply Loctite PST thread sealer to threads of capscrews. Torque capscrews

to 13 ft. lbs. each, in criss-cross pattern.

Pull rod from air cylinder as far as possible. Slide washer (item #24) over setscrew (item #20) and against nut at-
tached to air cylinder rod. Place setscrew into hole of shifter shaft (item #11). Attach new air cylinder (item #33) and
gasket (item #36) with sealer, to adapter using (4) capscrews (item #22). Apply Loctite PST thread sealer to threads

of capscrews. Torque capscrews to 5 ft-lbs. each, in criss-cross pattern.
