Ramsey Winch Company

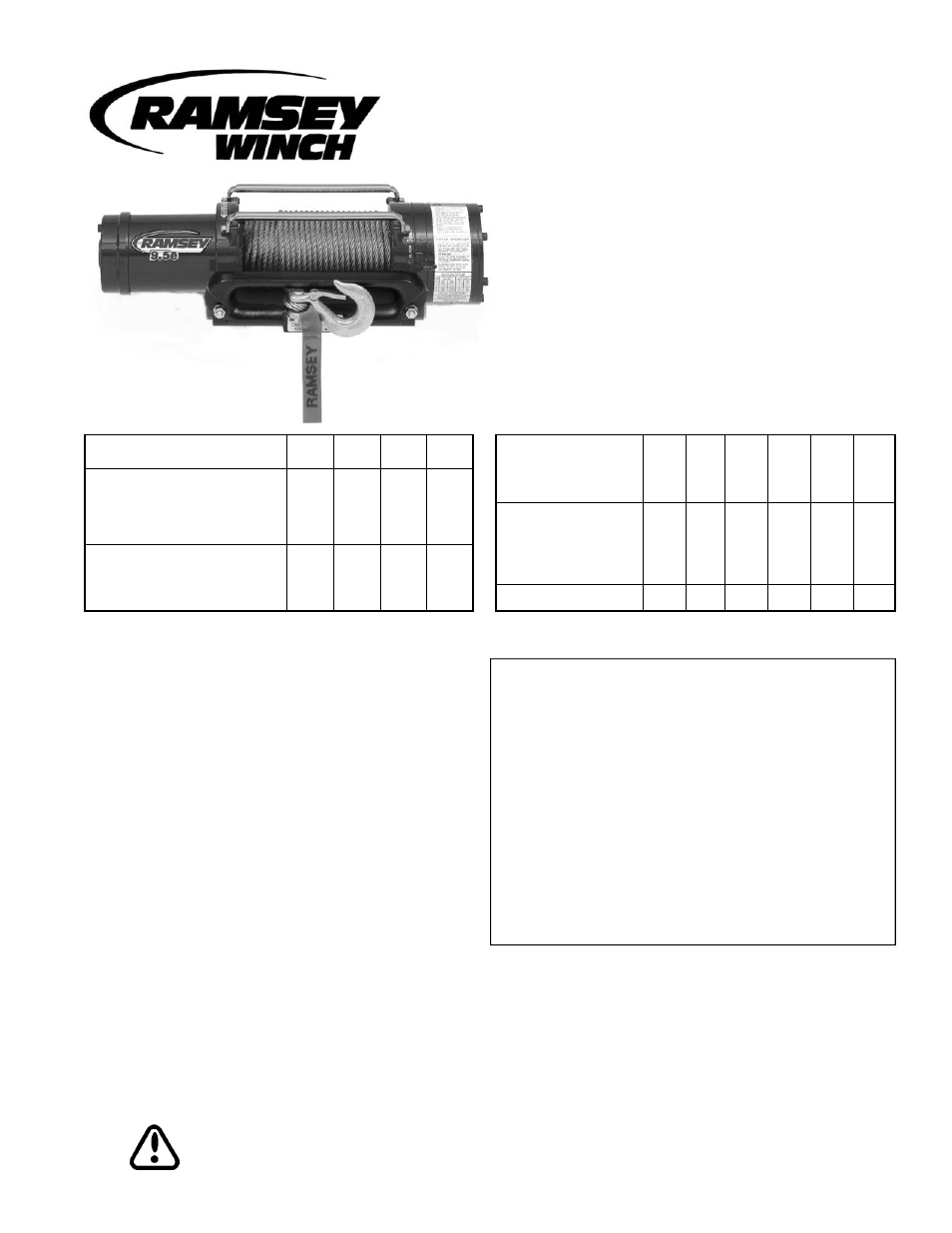

OWNER’S MANUAL
Model REP 9.5e
Front Mount Electric Winch
12 volt available
Layer of Cable 1 2 3 4
First Layer
Line Pull
(lbs) NO 2,000 4,000 6,000 8,000 9,500
Rated Line Pull Per
Layer
(lbs) 9,500 7,700 6,500 5,700 (kg) LOAD 900 1,810 2,720 3,620 4,310
(kg) 4,310 3,490 2,950 2,590
Line Speed
First Layer
(FPM) 20 16 11 7 5 3
Cumulative Cable
Capacity Per Layer
5/16" (8mm) dia. Cable
(ft)* 15 35 60 95 (MPM) 9.1 4.8 3.3 2.1 1.5 0.9
(m)* 4 10 18 28 Amp Draw 12V 99 170 250 315 370 420
* Depends on cable being uniformly wound onto drum. Ramsey performance data is compiled from actual winch testing.
Congratulations
You have purchased the finest winch available in its service
class. The REP 9.5e winch features a highly efficient 3 stage
planetary gear set. It utilizes a series-wound D.C. motor. A
safe positive clutch allows free spooling for quick cable de-
ployment. An automatic load-holding brake is designed to
hold the full rated capacity of the winch.
This winch was designed and manufactured to provide you
with the utmost in utility. As with any device that combines
power and movement in its use, there are dangers if improp-
erly used. At the same time, there are easier and faster ways
for getting the job done if certain precautions are taken first.
Please read this manual carefully. It contains useful ideas in
obtaining the most efficient operation from your Ramsey
Winch and safety procedures you need to know before be-
ginning use. When you follow our guidelines for operation,
your Ramsey Winch will give you many years of satisfying
service. Thank you for choosing Ramsey. You will be glad
you have one working for you.
Please Note: The Ramsey REP 9.5e winch is designed
for front mount vehicle use. It is not designed for and
should not be used in industrial applications (car haul-
ers/carriers, wreckers, hoisting, etc.), and Ramsey
does not warrant it to be suitable for such use. Ramsey
makes a separate, complete line of winches for indus-
trial/commercial use. Please contact the factory for
further information.
Contents
Safety Precautions......................................................2
Tips for Safe Operation ...............................................2
Techniques of Operation .............................................3
Installation.............................................................. 4-7
Electrical Connections & Operations............................5
Maintenance...............................................................8
Operating Instructions.................................................8
Trouble Shooting Guide...............................................9
Winch Parts List ................................................. 10-11
Warranty .....................................................Back Cover
CAUTION: Read and understand this manual before installation and operation of winch. See Safety Precautions.
