Powermate PM0135500 User Manual
Page 9

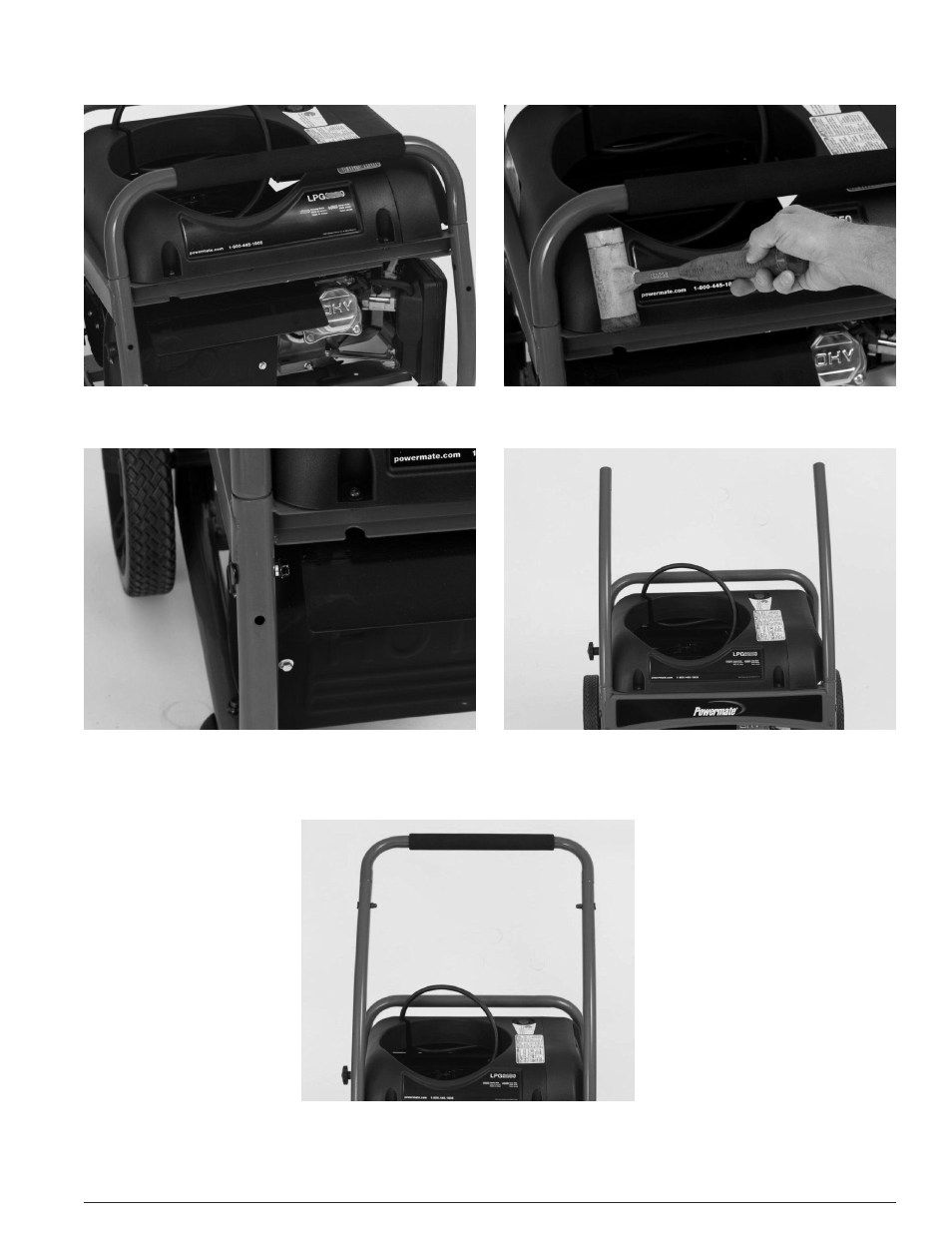

3. Remove the cross handle by pulling up on the handle. Tap with a rubber mallet, if required, to loosen and
remove the handle.
4. Install the handle uprights (item 32) into the frame and install with the same hardware (items 47, 51 and 57) which had
been removed when the cross handle was removed. Be sure that the silver crush bushings are in place. Do not tighten
until the tubes are completely installed to the cross handle.
5. Install the cross handle (items 31 and 37) onto the two support tubes. Install the two curved head screws (item 51)
from the accessory bolt bag and 13mm cap nuts (item 56).
9
Customer Hotline 1-800-445-1805
English
