This generator model is provided with both electric start and recoil
start capabilities. The charger is a low amperage maintenance type
charger. It will charge your battery as your generator runs. Avoid
prolonged cranking, as it can damage the engine.
The battery provided is a nominal 12 volt sealed rechargeable
lead-acid battery and can be operated in any position without leakage.
It’s convenient size offers a reduction over conventional batteries.
Length = 5.94 inches, Width = 3.43 inches, Height = 4.13 inches
11AH Rating
Battery Kit Parts List:
Refer to the parts list on pages 64 and 65.
Note: Brand New Generators are shipped with the Battery
Connections disconnected. The Positive and Negative Terminals
must be connected to the Battery before the Electric Start
Feature will work.
Initial Battery Connection - Refer to the Installation Instructions
Below.
Battery Removal & Installation:
Removal: Remove the nut and bolt from the negative and positive
post, being careful not to short across the terminals. (Shorting the
terminals together can cause sparks, damage to the battery or
generator or even burns or explosions.) Always abide by the safety
warnings provided with the battery. Remove the battery and re-cycle
and dispose of properly.
Installation:
1. Place the battery in the position provided.
2. Place the Hold-Down bracket on the battery.
3. Tighten down the Hold-Down bracket with the bolts provided.
Hook up the new battery, or re-install the new battery, as follows:
Remove vinyl caps from red and black wire terminals. Connect the
Red wire to the positive (+) terminal and the Black wire to the
negative (-) terminal with the bolt, nut, and washer provided. Make
sure all connections are tight. Your battery is now connected and
ready for use. Turn the key switch to crank the engine.
Note: Be sure Oil has been added to the engine as specified in the
Owner's Manual.
15 Customer Hotline 1-800-445-1805
ELECTRIC START ELECTRIC START
• Do not short-circuit the battery terminals.
• Do not charge in a sealed container.
• Keep sparks, flame away.

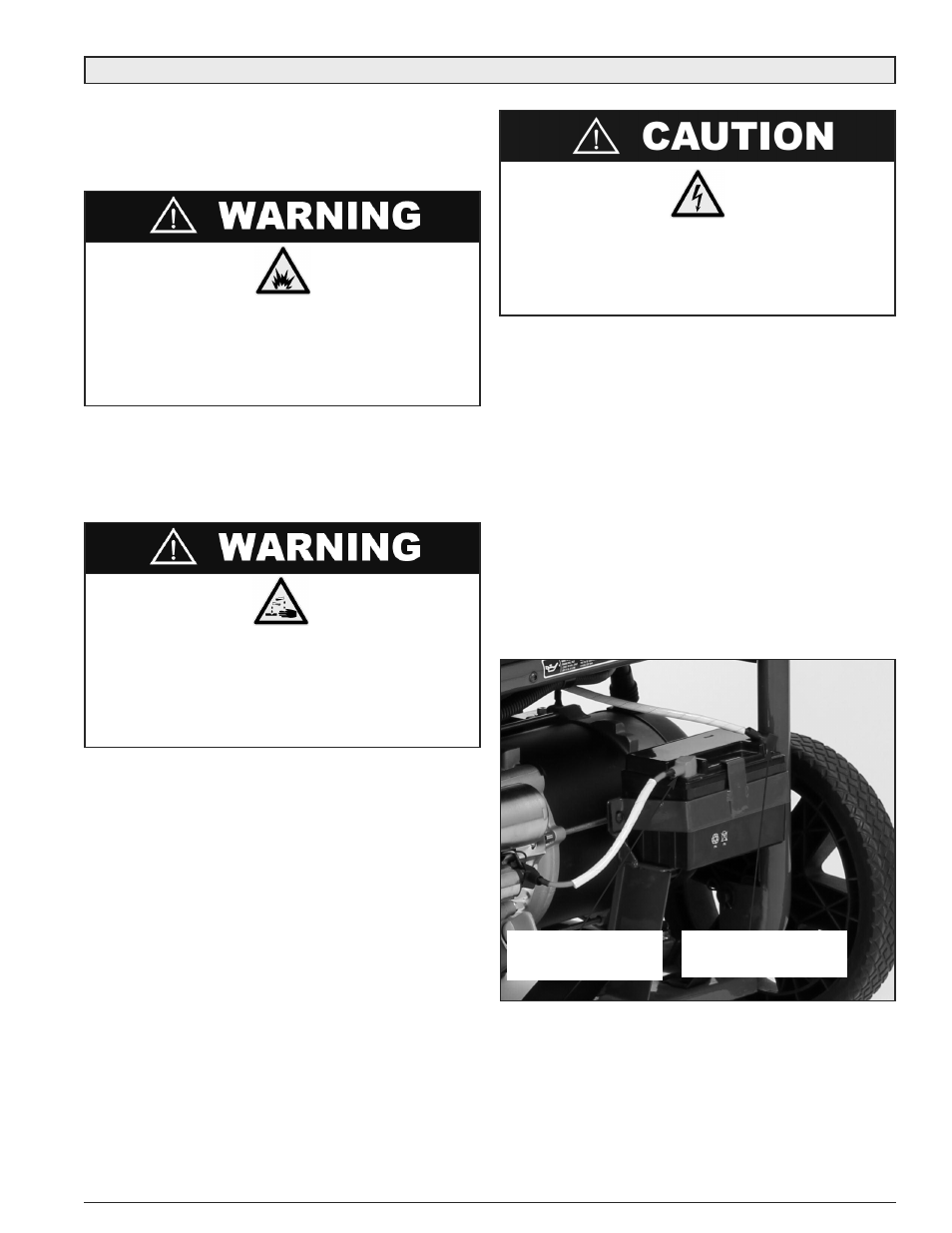

POSITIVE (+)
TERMINAL (RED)
NEGATIVE (-)
TERMINAL (BLACK)
Storage batteries give off EXPLOSIVE hydrogen gas
while charging. Do not allow smoking, open flames,
sparks, or spark producing equipment in the area
while charging.
Battery electrolyte fluid is comprised of sulfuric acid
that can be very dangerous and cause severe burns.
Do not allow this fluid to contact eyes, skin, clothing,
etc. If contact or spillage does occur, flush the area
with water immediately.
