APPLYING LOAD
This unit has been pretested and adjusted to handle its full
capacity. When starting the generator, disconnect all load.
Apply load only after generator is running. Voltage is regulated
via the engine speed adjusted at the factory for correct output.
Readjusting is not advised.
CAUTION: When applying a load, do not
exceed the maximum wattage rating of the
generator when using one or more
receptacles. Also, do not exceed the
amperage rating of any one receptacle.
A. 120 V, 20 Ampere Duplex Receptacles
20 amps of current may be drawn from each of the duplex
receptacles. However, total power drawn must be kept
within nameplate ratings. These receptacles may be used
along with the twistlock receptacle provided the generator
is not overloaded.
B. 120 Volt 30 Amp Twistlock Receptacle
You may draw a maximum of 30 amps or 3600 watts from
this receptacle. If other receptacles are used at the same
time, total power used must be kept within nameplate
rateings.
D. Circuit Breakers
The receptacles are protected by an AC circuit breaker.
(See Circuit Protection).
E. Idle Control Switch
Some models are equipped with an idle control switch.
(See Idle Control).
F. 120/240 V 30 Amp Twistlock Receptacle
A maximum of 30 amps may be drawn from the 120/240
volt receptacle, provided it is the only receptacle used.
However, current must be limited to the nameplate rating.
If the 120/240 volt receptacle is used along with the 120
volt receptacle, the total load drawn must not exceed the
nameplate ratings.
J. 240 Volt Heavy Duty Receptacle
This receptacle is rated at 50 amps but the current must be
limited to the nameplate rating. If this receptacle is used
along with the 120 volt receptacles, the total load drawn
must not exceed the nameplate ratings.
K. Hour Meter
The hour meter will help the user schedual the maintance
required to keep the unit in good working order.
6 English

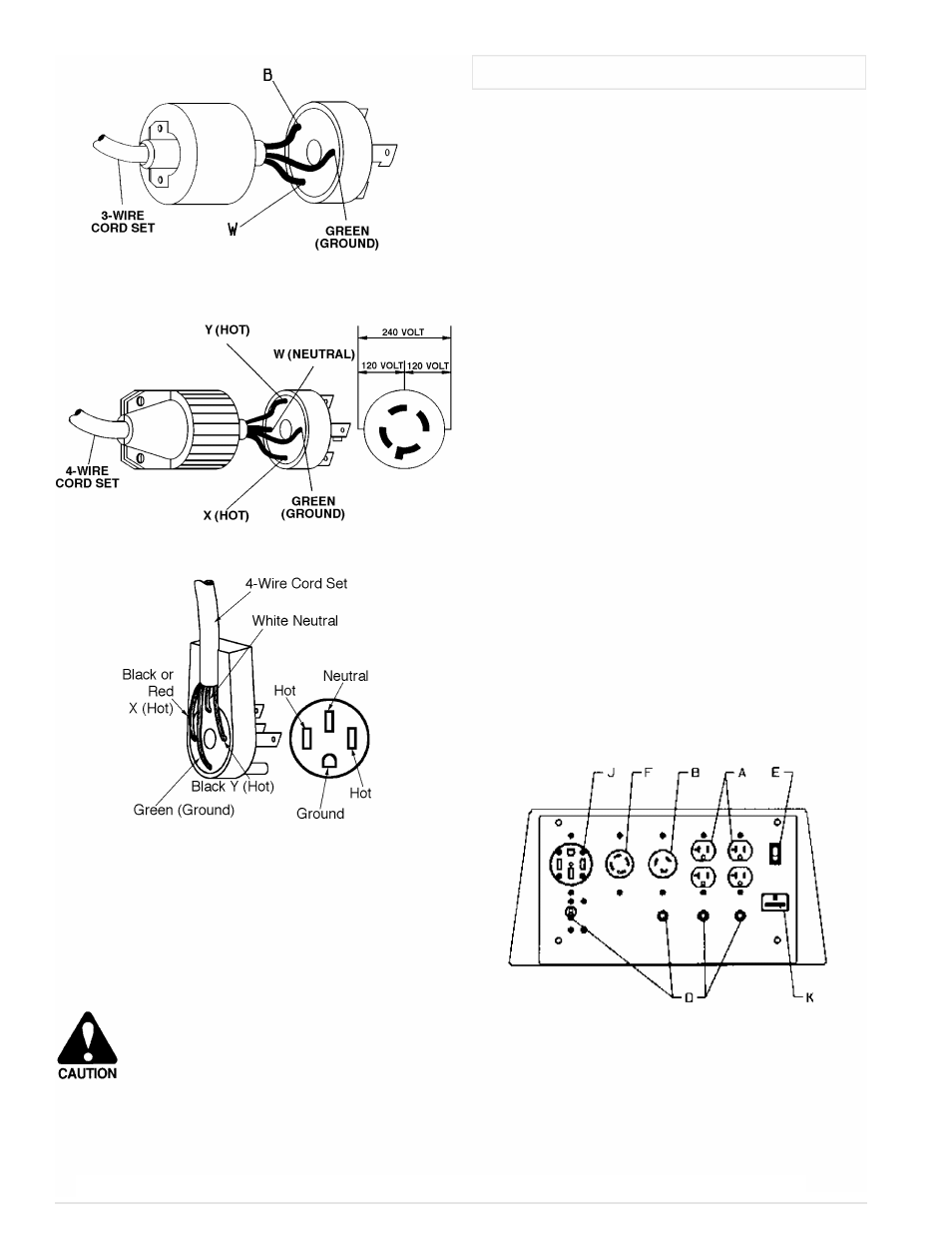

120/240 Volts, 20 Ampere and 30 Ampere Plug
MAJOR FEATURES
120/240 Volt Heavy Duty Plug
120 volt 30 Amp Plug
