INSTALLATION INSTRUCTIONS

for Doors with Integral Nailing Fin (JII006-ODL)

ODL offers a limited 10 year warranty, one year labor. Please visit www.odl.com or

call us at 1-800-253-3900 for complete warranty or product information.

Thank you for choosing

© 2010, ODL, inc. | ODL and Building Value Into Building Products are trademarks or registered trademarks of ODL, inc.
All other trademarks are the property of their respective owners.

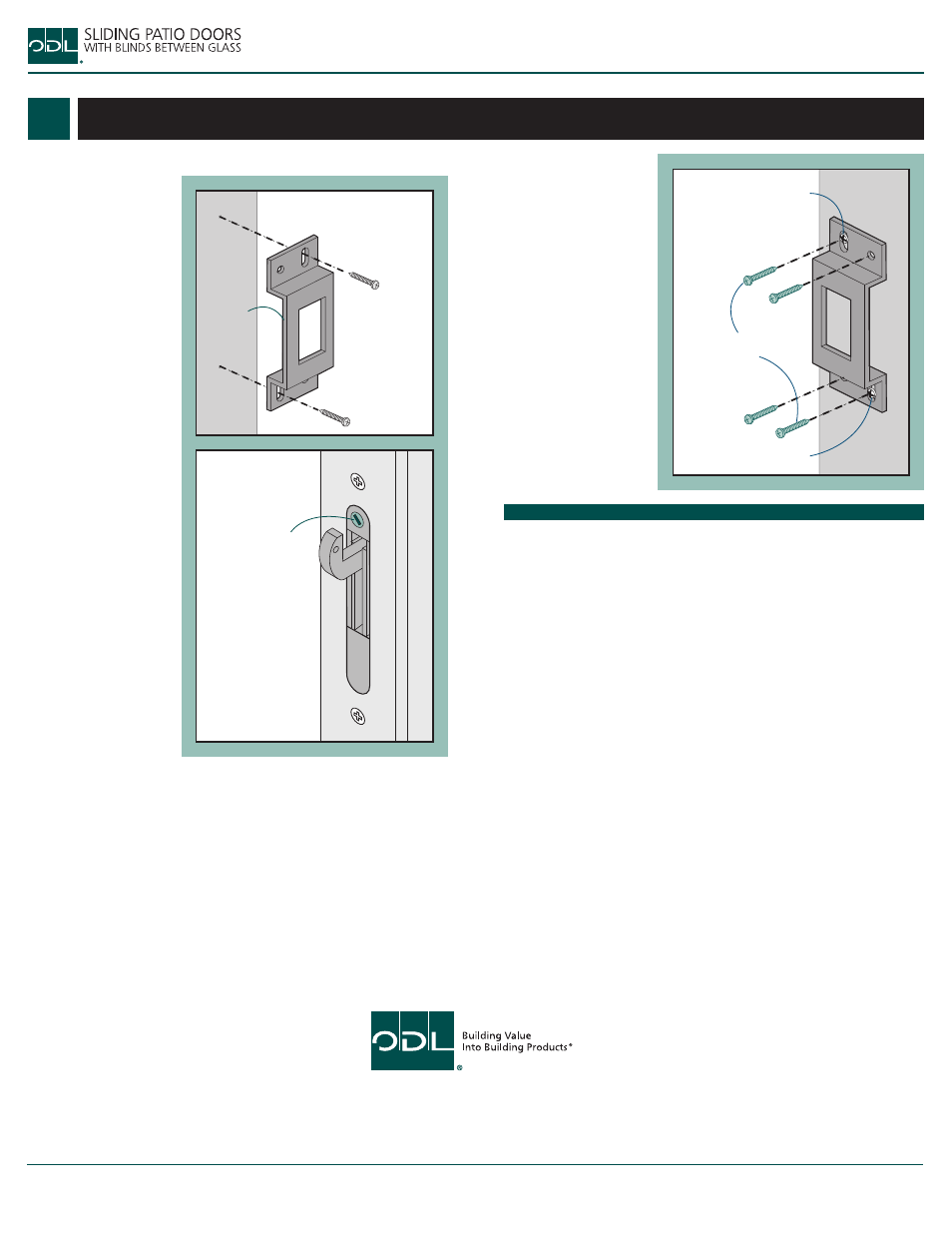

2. Drive two #10 x 2.5"

screws through
the open screw
holes in the strike
plate (included in
hardware pack).

3. Remove the pre-

installed screws
from the strike plate
and replace them
with the remaining
#10 x 2.5" screws
from the hardware
pack. This will
secure the patio
door to the
structure.

Lock Adjustment
Note!

If the strike

plate was not
previously installed,
line up the screw
holes with the dimples
in the operating panel
side jamb and drive
screws through the
two slotted screw
holes.
1a. If the lock does not

properly engage
the strike plate:

• Loosen the

strike plate
screws and
move up or
down until the
latch engages
properly.

1b. If the door does

not lock or is loose
when locked:

• Turn the latch

adjustment
screw(s) in 1/2
turn increments:
clockwise
to loosen or
counterclockwise
to tighten.

COmpLeTe INsTALLATION - CONTINueD

Lock hook

adjustment

screw

strike

plate

pre-installed

screw

replacement

screw

pre-installed

screw

AFTeR INSTALLATION

1. Install exterior wall surface within seven days of patio door

installation.

2. Seal any gaps or openings at end of horizontal mull joints with

sealant.

3. Maintain gap of 1/4"-3/8" between door frame and final exterior wall

surface (siding, stucco, etc.).

4. Seal this gap on the sides with backer rod and sealant. For step-down

landings, also seal under the patio door sill. Do not apply sealant on
top of the drip cap.

5. On the interior, insulate the void between the rough opening and the

door frame with backer rod and sealant or low expansion foam.

6. protect recently installed units from damage from plaster, paint, etc.

by covering the unit with plastic.
