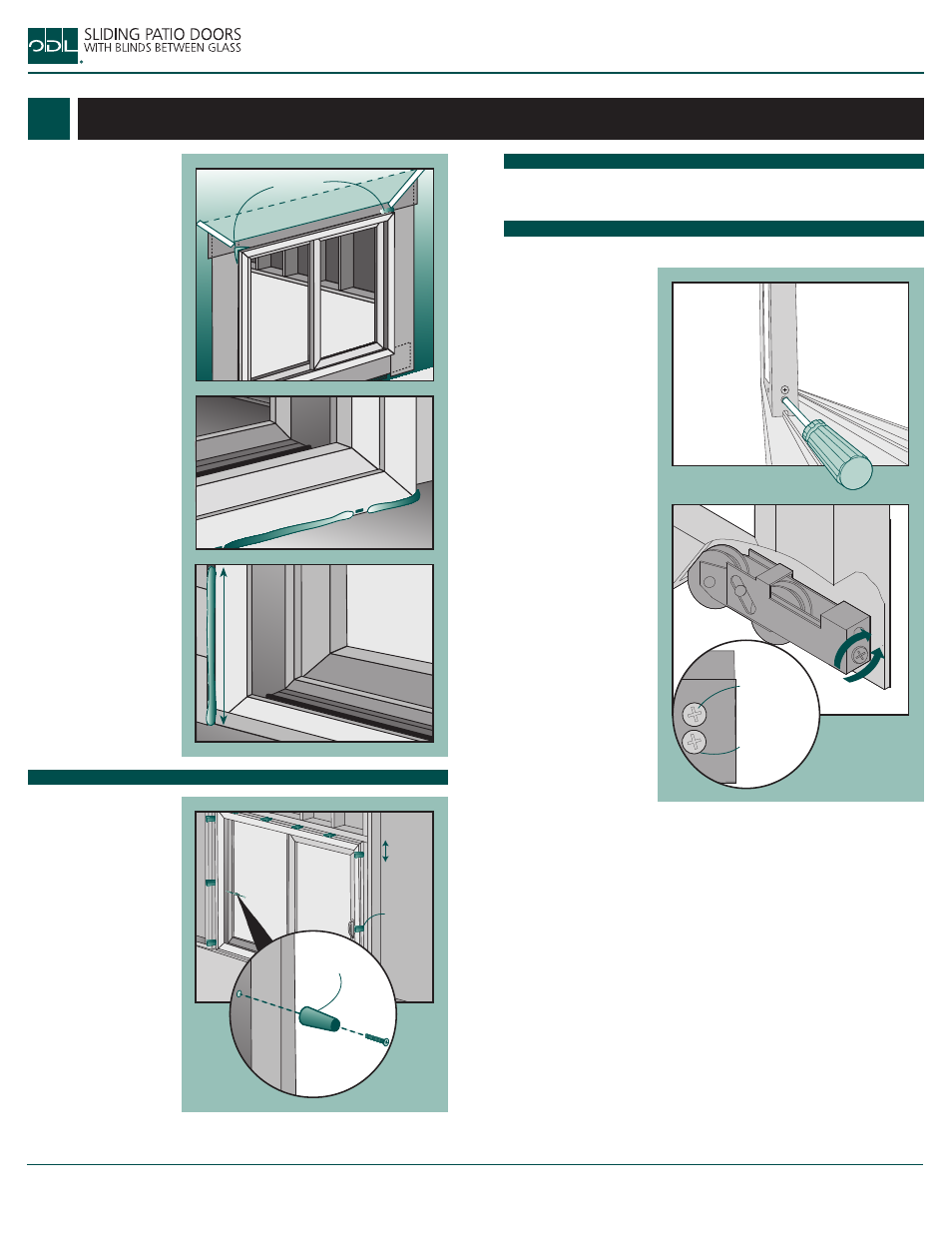

INSTALLATION INSTRUCTIONS

for Doors with Integral Nailing Fin (JII006-ODL)

1. seal the upper

corners of the patio
door with a 1/4"
bead of sealant.
Tool into a fillet
shape.

2. release the

building wrap from
above the header
(previously taped
up) and overlap the
header flashing.
seal the ends
with self-adhesive
flashing or building
wrap tape.

3. On the interior, seal

the lower 6" of gap
between the rough
opening and door
jamb with backer
rod and sealant on
both sides of the
patio door.

4. For continuous slab

landings, apply a
1/4" bead of sealant
around the sill
where it meets the
slab. Leave gaps at
the weep holes as
shown.

5. Ensure sealant on

back dam of the sill
pan fully seals to
the inside face of
the sill. Apply more
sealant as necessary.

COmpLeTe INsTALLATION

sealant

INSTALL BUMPeR

Install the bumper in
the stationary panel
side jamb at vertical
center using the 1"
self-tapping screw
provided.

strike

plate

Interior

Bumper

PATIO DOOR ADjUSTMeNT

Roller Adjustment
Note!

Adjusting door

too high may allow
water and air leakage.
Adjust rollers just high
enough to clear sill
track.
1. Doors have an

adjustment screw
on each lower end
of the operating
panel(s). remove
small vinyl plugs
from each hole (if
present).

2. Open operating

panel enough to
compare with frame
jamb.

Note!

Roller

adjustment screws
are in close proximity
to the attachment
screw. Adjust only
the lower screw (as
shown); loosening the
attachment screw will
detach the roller from
the operating panel.
3. Using a #2 Phillips

head screwdriver,
turn the adjustment
screw clockwise to
raise the panel, and
counterclockwise to
lower the panel.

4. Adjust as needed until interlocks, grid patterns, and jambs line up.
5. Test the operating panel for proper operation.
6. re-apply the small vinyl caps over the roller adjustment screw holes if

applicable.

Attachment

screw

Adjustment

screw

Lower panel

raise

panel

SUPPORT TRIM (STeP-DOWN LANDING ONLy)

On the exterior, install support trim underneath the sill where it extends
past the landing. position trim snugly against the bottom of the sill toe.
