AXIS P3301/-V - Event Configuration

Motion Detection

Motion detection is used to generate an alarm whenever movement occurs (or stops) in the video image. A total of 10 Include
and/or Exclude windows can be configured.

•

Included windows target specific areas within the whole video image

•

Excluded windows define areas within an Include window that should be ignored (areas outside Include windows are
automatically ignored)

Once configured, the motion detection windows appear in the list of available triggers, for triggering events. See

How to set

up a triggered event, on page 20.

Note:

Using the motion detection feature may decrease the camera’s overall performance.

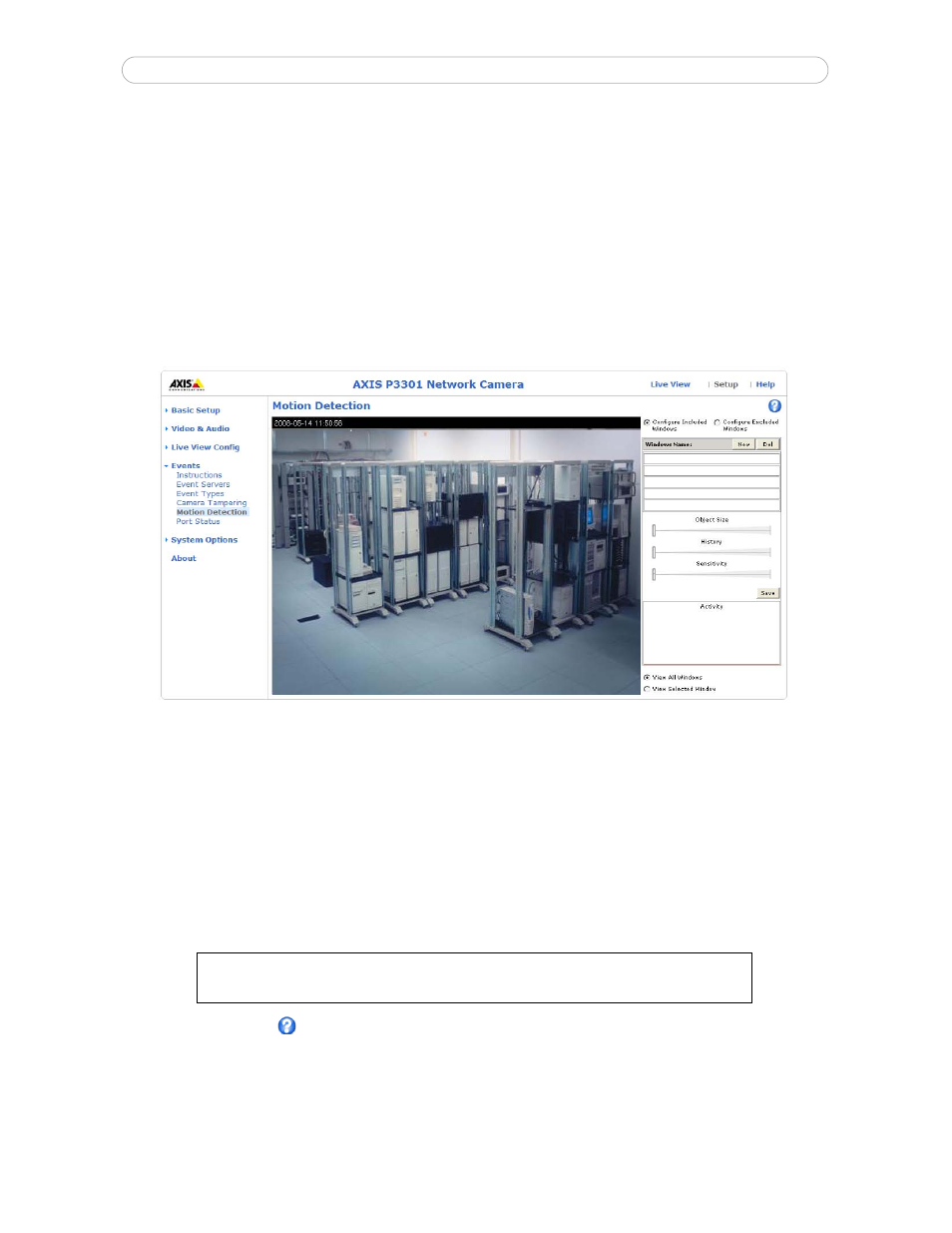

Configuring Motion Detection

1. Click

Motion Detection in the Event Configuration menu.

2. Click the

New Window button.

3. Select the

Include or Exclude option to define an Include or Exclude window, and enter a descriptive name in the

field below.

4. Adjust the size (drag the bottom right-hand corner) and position (click on the text at the top and drag to the

desired position) of the active window.

5. Adjust the

Object Size, History and Sensitivity profile sliders (see table below for details). Any detected motion

within an active window is then indicated by red peaks in the

Activity window (the active window has a red

frame).

6. Click

Save.

Please see the online help

for descriptions of each available option.

To exclude parts of the Include window, select the

Exclude option and position the

Exclude window as required, within the Include window.
