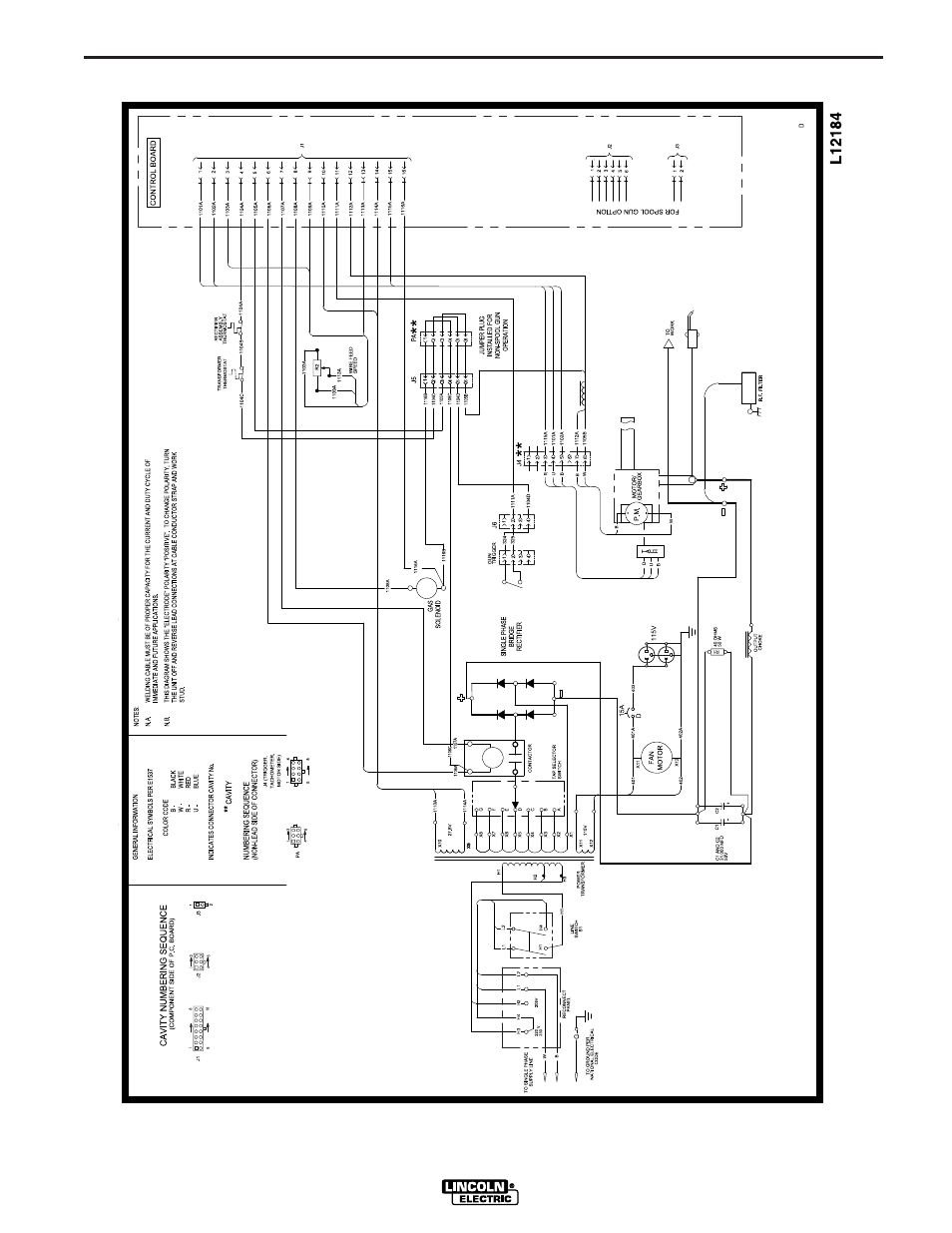

DIAGRAMAS DE CABLEADO
NOTA: Este diagrama es sólo para referencia. Tal vez no sea exacto para todas las máquinas que cubre este manual. El diagrama
específico para un código particular está pegado dentro
de la máquina en uno de los páneles de la cubierta. Si el diagrama es ilegible, escriba al Departamento de Servicio para un re
emplazo. Proporcione el número de código del equipo.
POWER MIG 215
POWER MIG 215 (208/220/230V) P
ARA CÓDIGOS 1
1099 Y SUPERIORES
