Spirit II User’s Manual Section 2: Specifications
This information is subject to the controls of the Export Administration Regulations [EAR]. This information shall not be provided to
non-U.S. persons or transferred by any means to any location outside the United States contrary to the requirements of the EAR.
2-3
Power Supply Specifications
Power Supply Description Part Number
Input Current at
Maximum Output
208 VAC, 3Ø, 60Hz 300221 163 amps
220 VAC, 3Ø, 60Hz 300222 153 amps
240 VAC, 3Ø, 60Hz 300223 140 amps
380 VAC, 3Ø, 50/60Hz 300224 88 amps
400 VAC, 3Ø, 50/60Hz 300225 84 amps
415 VAC, 3Ø, 50/60Hz 300226 81 amps
440 VAC, 3Ø, 50/60Hz 300227 76 amps
480 VAC, 3Ø, 60Hz 300228 70 amps
600 VAC, 3Ø, 60Hz 300229 56 amps
Open Circuit Voltage ......................................... 325 VDC
Output Current (drooping characteristic) ........... 10 - 275 amps
Maximum Output Voltage ................................. 180 VDC
Duty Cycle ........................................................ 100% @ 44 kW
Maximum Ambient Temperature ....................... 104° F (40° C)
Coolant Discharge Pressure ............................. 150 psi (10.2 bar)
Coolant Flow Rate ............................................ 1 gal/min (3.8 liters/min)
Coolant Fluid ..................................................... Propylene glycol solution
Coolant Tank Capacity ...................................... 3.2 gal (12 liters)
Weight (without coolant) ................................... 1270 lb (576 kg)

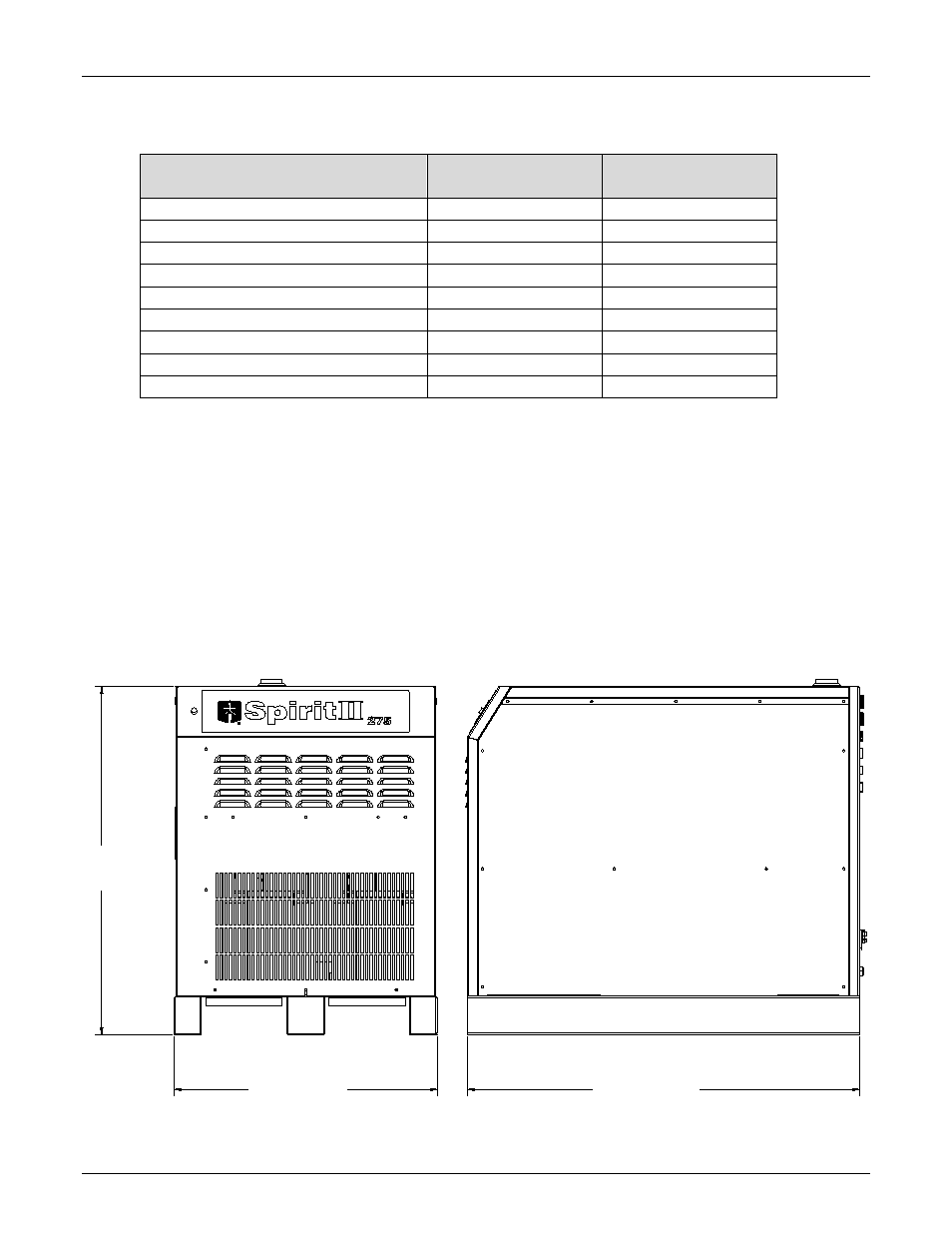

38.4"
[975]
29.0" [737] 43.2" [1097]
