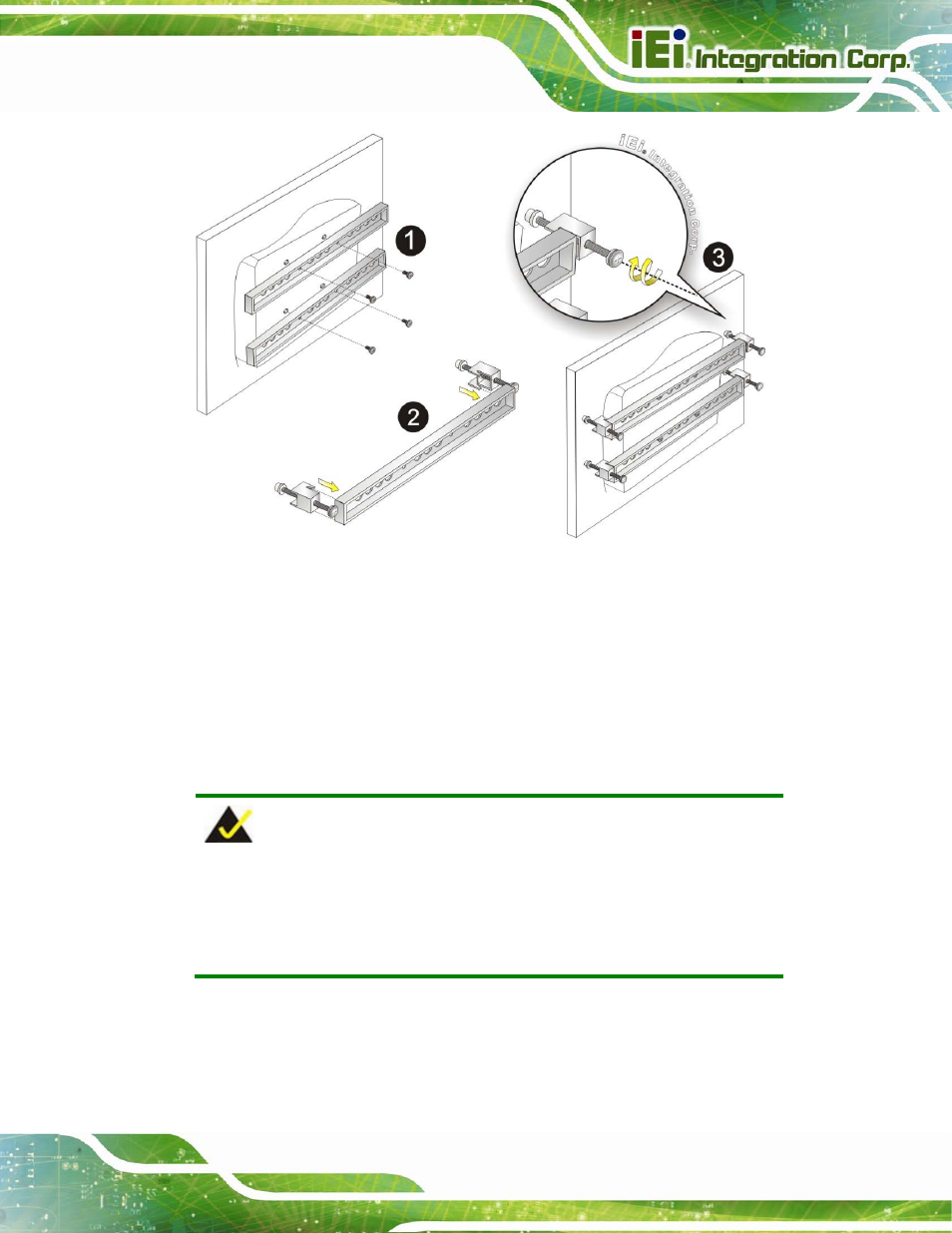

Figure 4-10: Panel Mounting
4.8.3 Rack Mounting
The AFL2-12A-HM65 flat bezel panel PC can be installed into a cabinet or rack. The
installation procedures are similar to the panel mounting installation. To do this, please
follow the steps below:
NOTE:
When purchasing the cabinet/rack installation bracket, make sure it is
compatible with both the AFL2-12A-HM65 flat bezel panel PC and the
rack/cabinet into which the AFL2-12A-HM65 is installed.
Step 1: Slide the rear chassis of the AFL2-12A-HM65 flat bezel panel PC through the
rack/cabinet bracket until the aluminum frame is flush against the front of the
bracket (
6
Figure 4-11).
