AFL-08B-N270 User Manual

Page 51

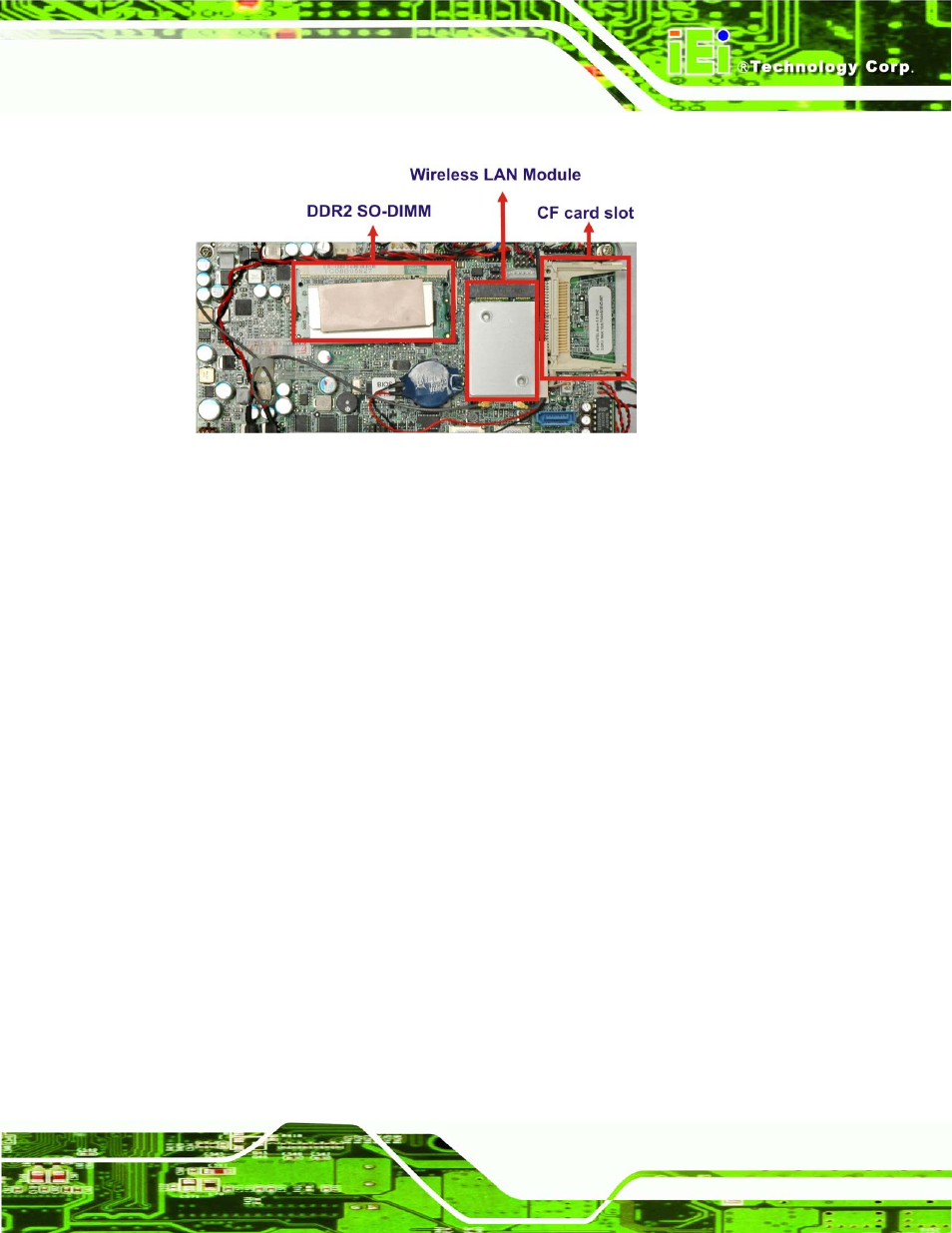

Figure 3-1: Replaceable Components

3.2 Motherboard Replacement

In the case of motherboard failure, please contact an IEI sales representative, reseller or

system vendor. The motherboard is accessible after opening the rear cover.

3.3 Cover Removal

To access the AFL-08B-N270 internally the back panel must be removed. To remove the

back panel, please follow the steps below.

Step 1:

Follow all anti-static procedures

. See Section A.1.2.

Step 2:

Turn off the power

. See Section 3.1.

Step 3:

Remove the retention screws on the back

. Remove the retention screws

(Figure 3-2) from the rear panel.
