AFL-08B-N270 User Manual

Page 47

2.7.3 USB Device Connection

There are four external USB 2.0 connectors. All connectors are perpendicular to the

AFL-08B-N270. To connect a USB 2.0 or USB 1.1 device, please follow the instructions

below.

Step 1:

Located the USB connectors

. The locations of the USB connectors are shown

in Chapter 2.

Step 2:

Align the connectors.

Align the USB device connector with one of the

connectors on the bottom panel. See Figure 2-21.

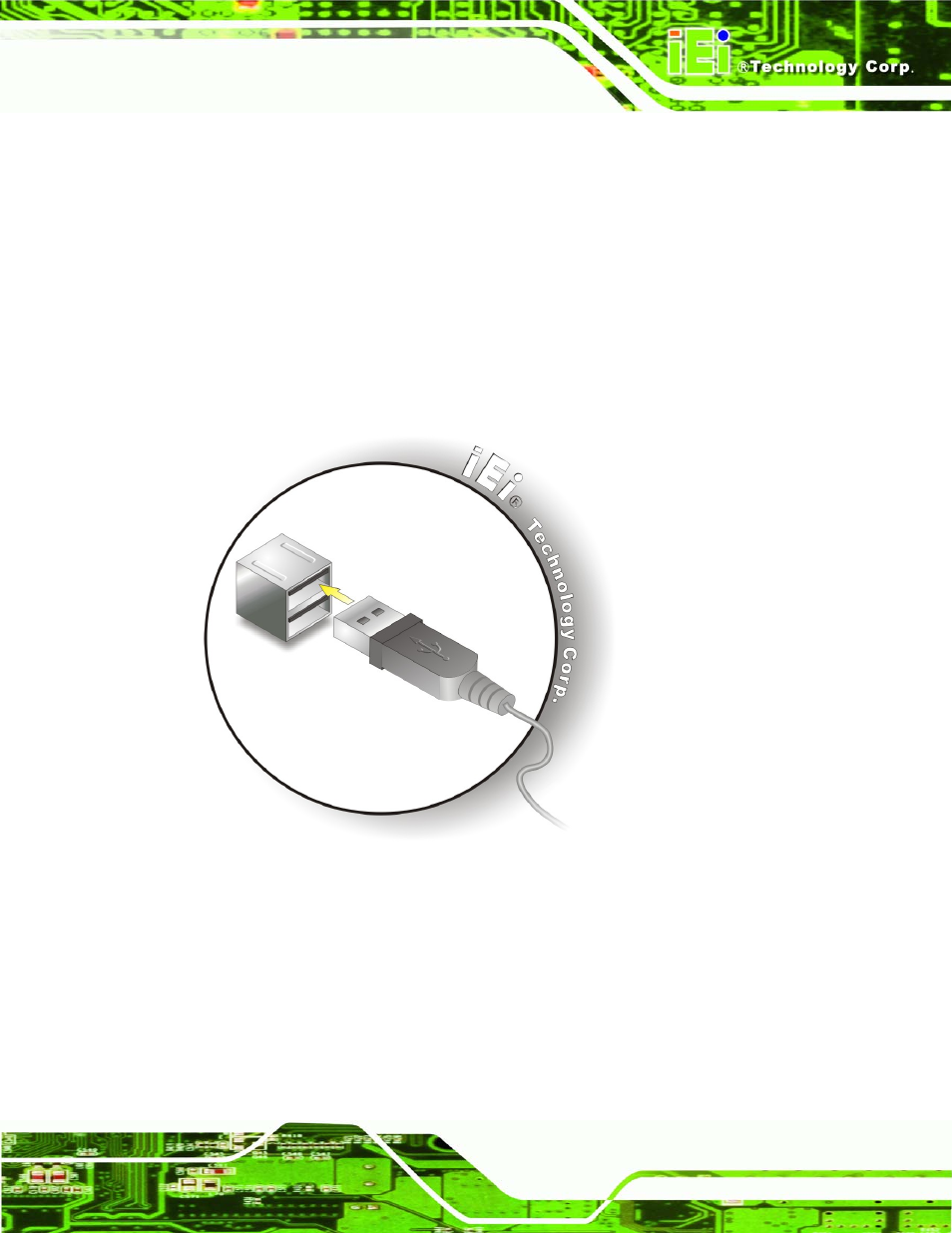

Figure 2-21: USB Device Connection

Step 3:

Insert the device connector.

Once aligned, gently insert the USB device

connector into the onboard connector.

Step 0:

2.8 Power Connection

The power cable connects the power adapter to the power outlet. The power adapter and

power cable are required for operation of the panel PC.
