Jumper Settings: See Table 4-11
Jumper Location: See Figure 4-12
The CompactFlash® slot is connected through an IDE connection. This jumper sets the
CompactFlash® card as the master or slave IDE device.
Setting Description
Open Master (Default)
Short Slave
Table 4-11: CompactFlash® Setup Jumper Settings

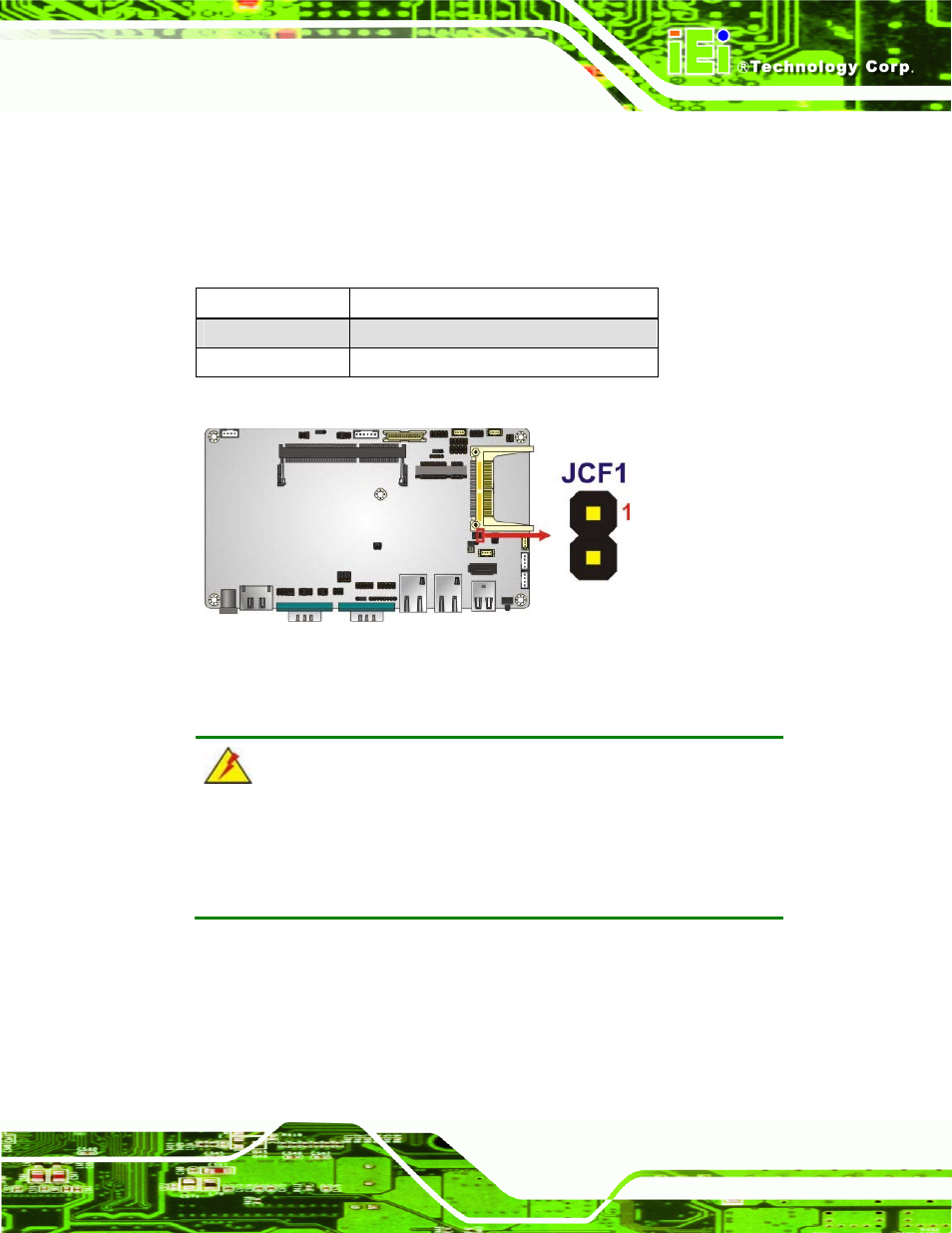

Figure 4-12: CompactFlash® Setup Jumper Location
4.10 Mounting the System
WARNING!
When mounting the flat panel PC onto an arm, onto the wall or onto a
panel, it is better to have more than one person to help with the installation
to make sure the panel PC does not fall down and get damaged.
The four methods of mounting the AFOLUX AFL-xxA-N270 are listed below.
ƒ Wall mounting
ƒ Panel mounting
ƒ Arm mounting
ƒ Rack mounting
