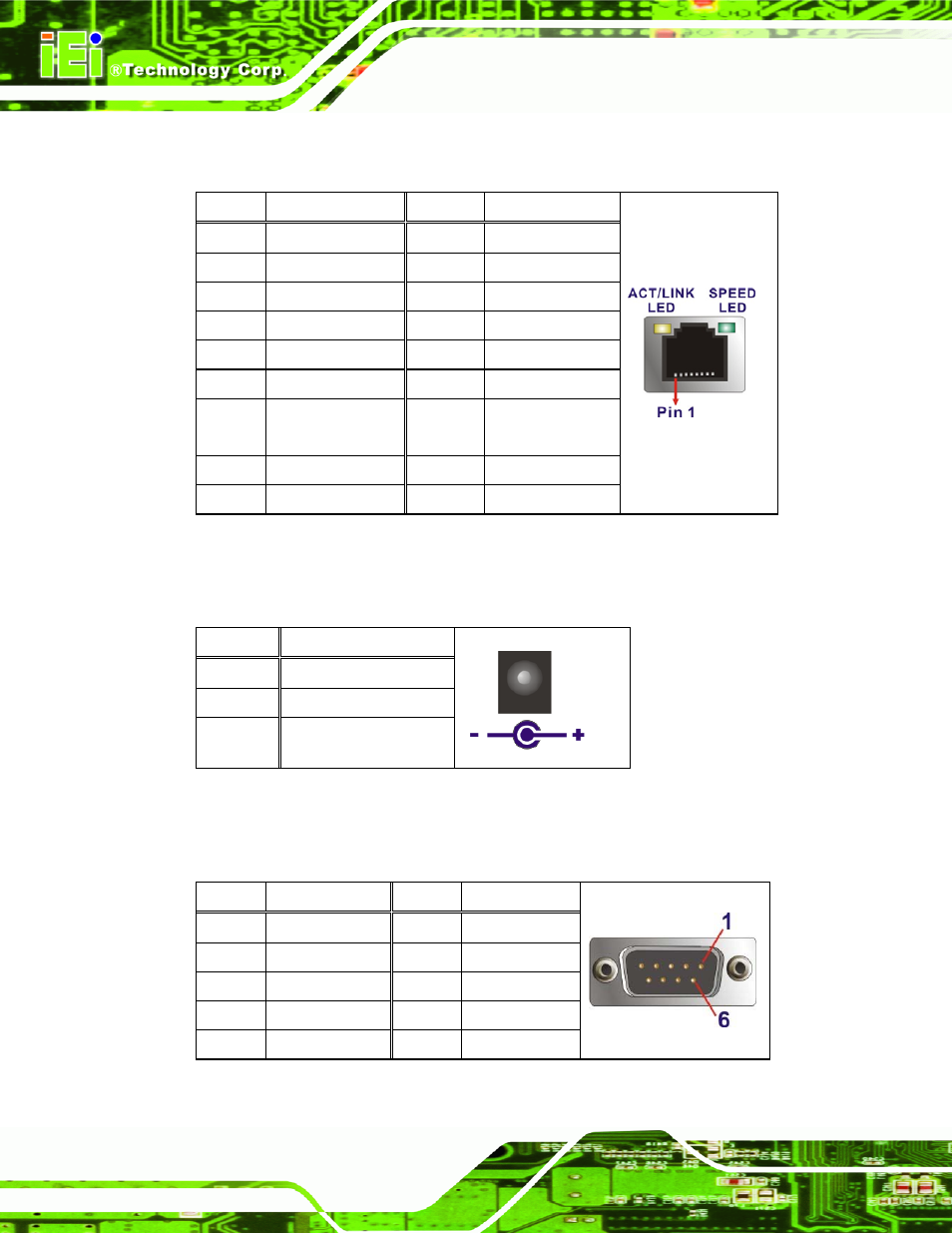

8.3.1 Ethernet Connector (LAN1, LAN2)

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 LAN1_MDI0+ 2 LAN1_MDI0-

3 LAN1_MDI1+ 4 LAN1_MDI1-

5 N/A

6 N/A

7 LAN1_MDI2+ 8 LAN1_MDI2-

9 LAN1_MDI3+ 10 LAN1_MDI3-

11 +3.3Vsus

12 ACT-1

13

LAN1_LINK1000

+3.3Vsus

14

LAN1_LINK100

+3.3Vsus

15 GND

16 GND

17 N/A

18 N/A

Table 8-25: Ethernet Connector (LAN1, LAN2) Pinouts

8.3.2 Power Connector (CN5)

PIN NO.

DESCRIPTION

1 GND

2 GND

3 VCC12_IN

Table 8-26: Power Connector (CN5) Pinouts

8.3.3 RS-232 Serial Ports (COM1)

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 NDCD1

2 NRX1

3 NTX1

4 NDTR1

5 GND

6 NDSR1

7 NRTS1

8 NCTS1

9 COM_RI1 10

GND

Table 8-27: RS-232 Serial Ports (COM1) Pinouts
