AFL-W10A-N270 User Manual

Page 47

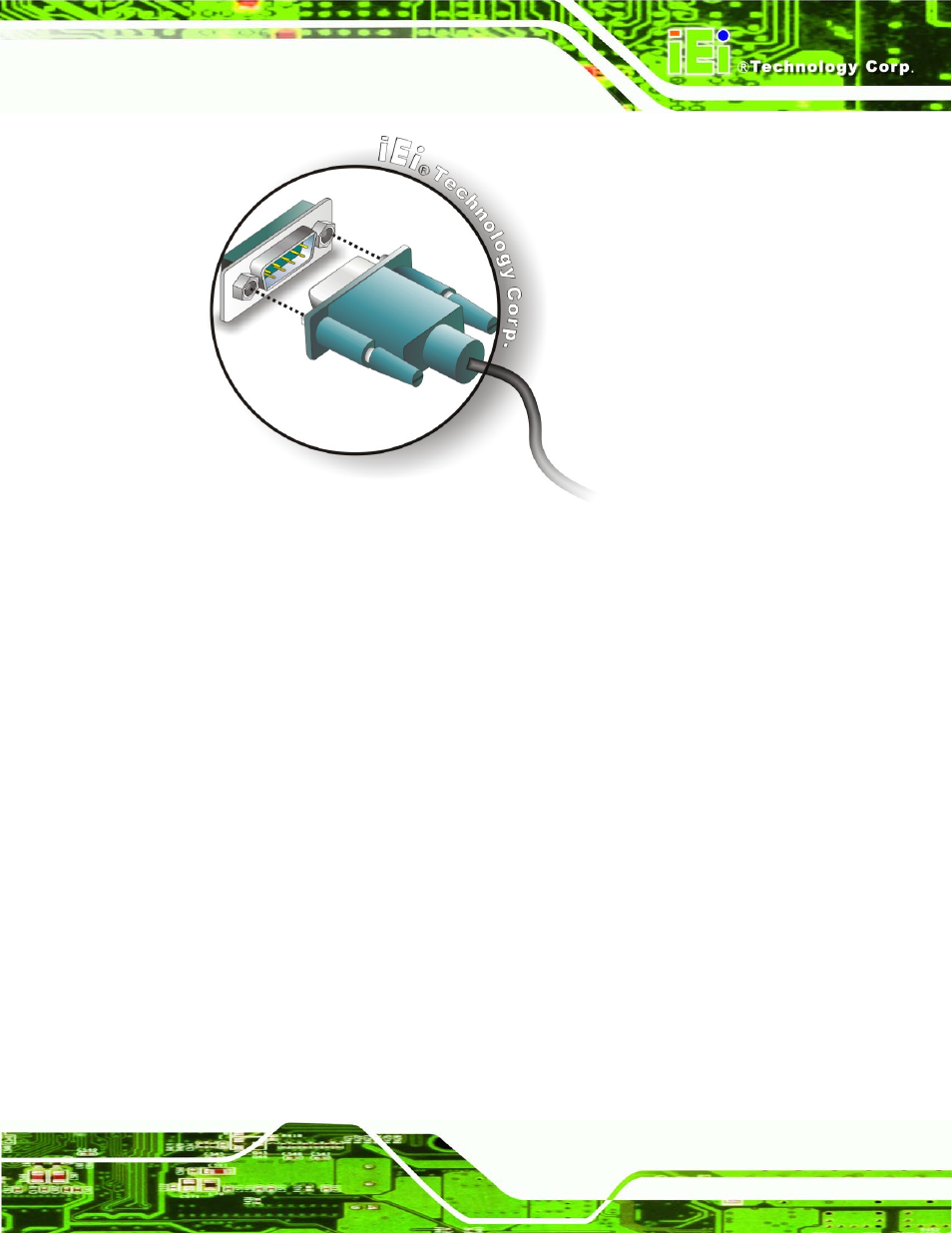

Figure 2-20: Serial Device Connector

Step 3:

Secure the connector

. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

Step 0:

2.7.3 USB Device Connection

There are four external USB 2.0 connectors. All connectors are perpendicular to the

AFL-W10A-N270. To connect a USB 2.0 or USB 1.1 device, please follow the instructions

below.

Step 1:

Located the USB connectors

. The locations of the USB connectors are shown

in Chapter 2.

Step 2:

Align the connectors.

Align the USB device connector with one of the

connectors on the bottom panel. See Figure 2-21.
