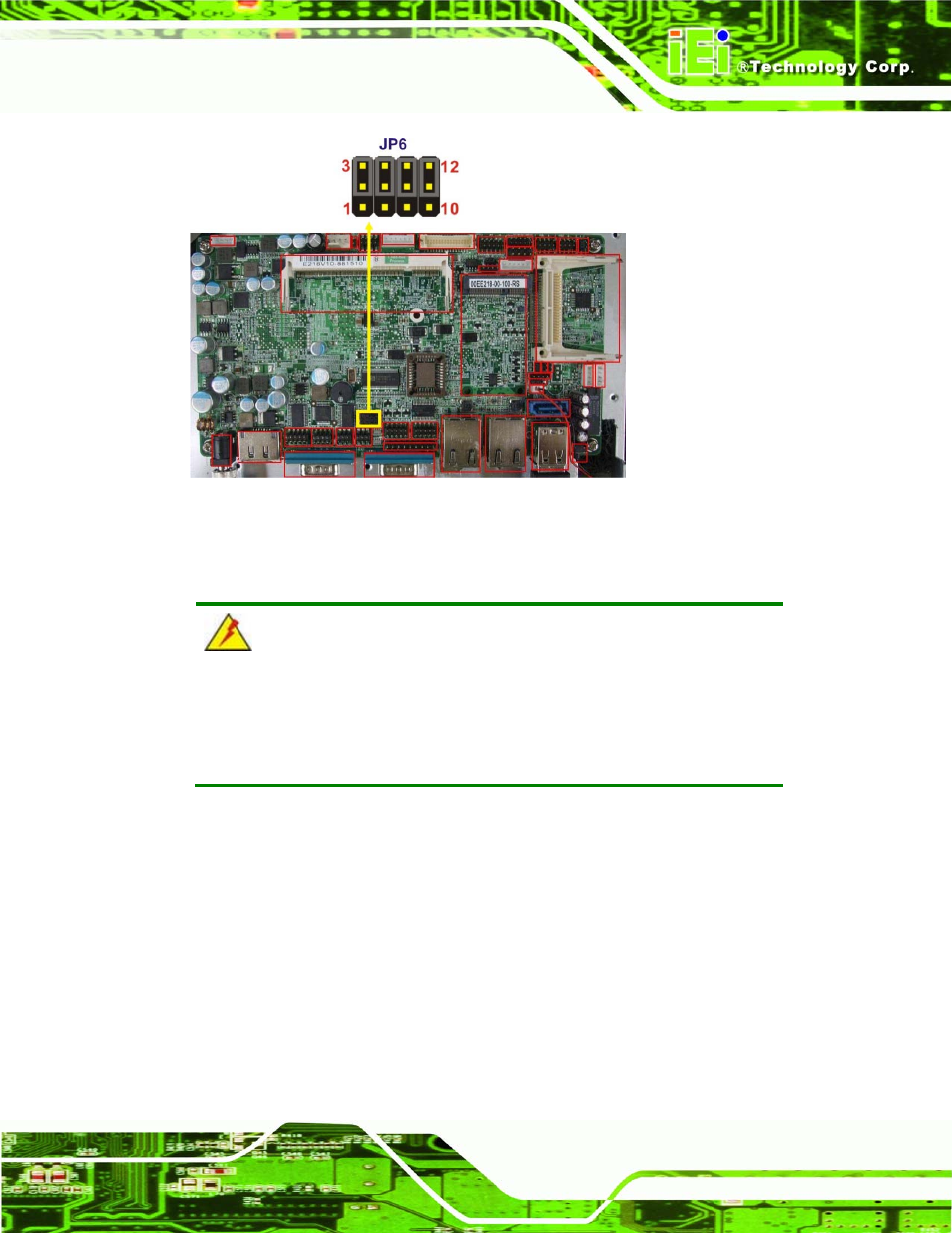

Figure 2-9: COM3 RS-232/422/485 Serial Port Select Jumper Location
2.6 Mounting the System
WARNING!
When mounting the panel PC onto an arm, onto the wall or onto a panel, it
is better to have more than one person to help with the installation to make
sure the panel PC does not fall down and get damaged.
The four methods of mounting the AFL-W10A-N270 are listed below.
Wall mounting
Panel mounting
Arm mounting
Rack mounting
The four mounting methods are described below.
2.6.1 Wall Mounting
To mount the panel PC onto the wall, please follow the steps below.
