Load Failsafe Defaults.
After having done one of the above, save the changes and exit the CMOS Setup menu.
The clear CMOS jumper settings are shown in Table 2-3.
Clear CMOS Description
Short 1 - 2 Keep CMOS Setup Default
Short 2 - 3 Clear CMOS Setup
Table 2-3: Clear CMOS Jumper Settings
The location of the clear CMOS jumper is shown in Figure 2-5 below.

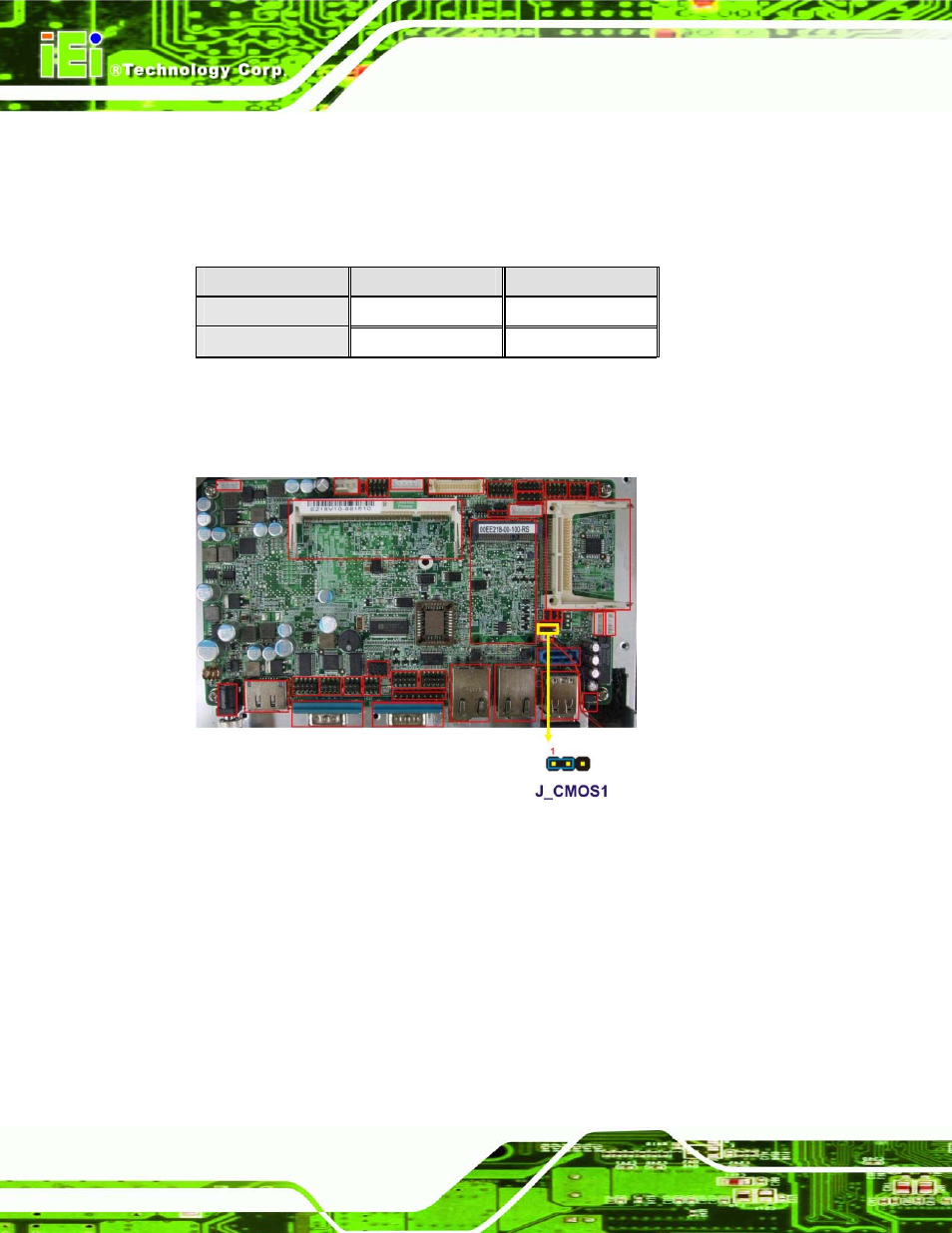

Figure 2-5: Clear CMOS Jumper
2.5.4 COM Port Pin 9 Select
Jumper Label: JP8 and JP10
Jumper Settings: See Table 2-4
Jumper Location: See Figure 2-6
Two jumpers (JP8 and JP10) configure pin 9 on COM1 and COM3 DB-9 connectors. Pin 9
on the COM1 and the COM3 DB-9 connectors can be set as the ring (RI) signal, +5 V or
