IMBA-Q670 ATX Motherboard

Page 64

4.5.3 HDMI Connection

The HDMI connector transmits a digital signal to compatible HDMI display devices such

as a TV or computer screen. To connect the HDMI cable to the IMBA-Q670, follow the

steps below.

Step 1:

Locate the HDMI connector. The location is shown in a previous section.

Step 2:

Align the connector. Align the HDMI connector with the HDMI port. Make sure

the orientation of the connector is correct

Step 3:

Insert the HDMI connector. Gently insert the HDMI connector. The connector

should engage with a gentle push. If the connector does not insert easily, check

again that the connector is aligned correctly, and that the connector is being

inserted with the right way up.

Step 0:

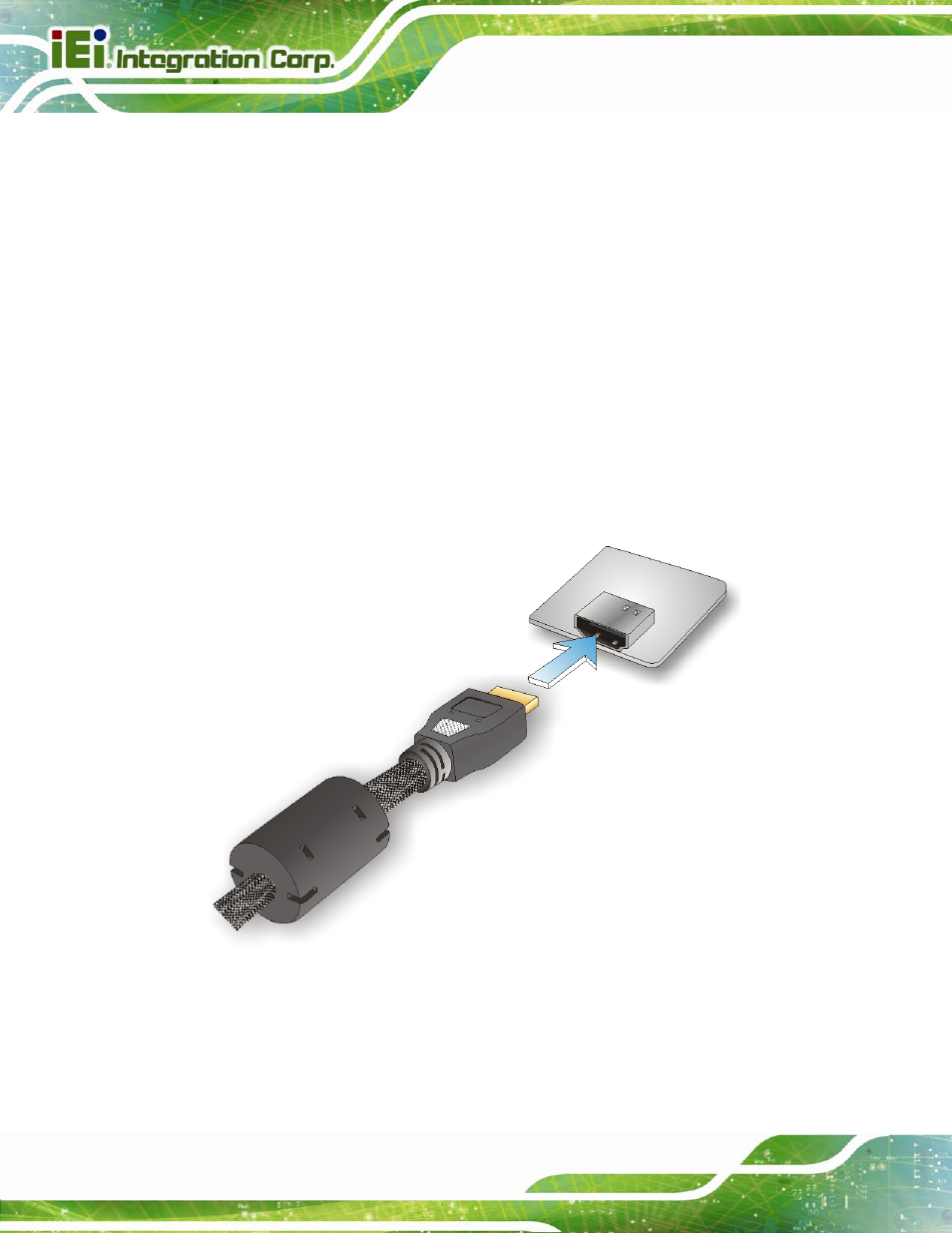

Figure 4-15: HDMI Connection
