IMBA-Q670 ATX Motherboard

Page 39

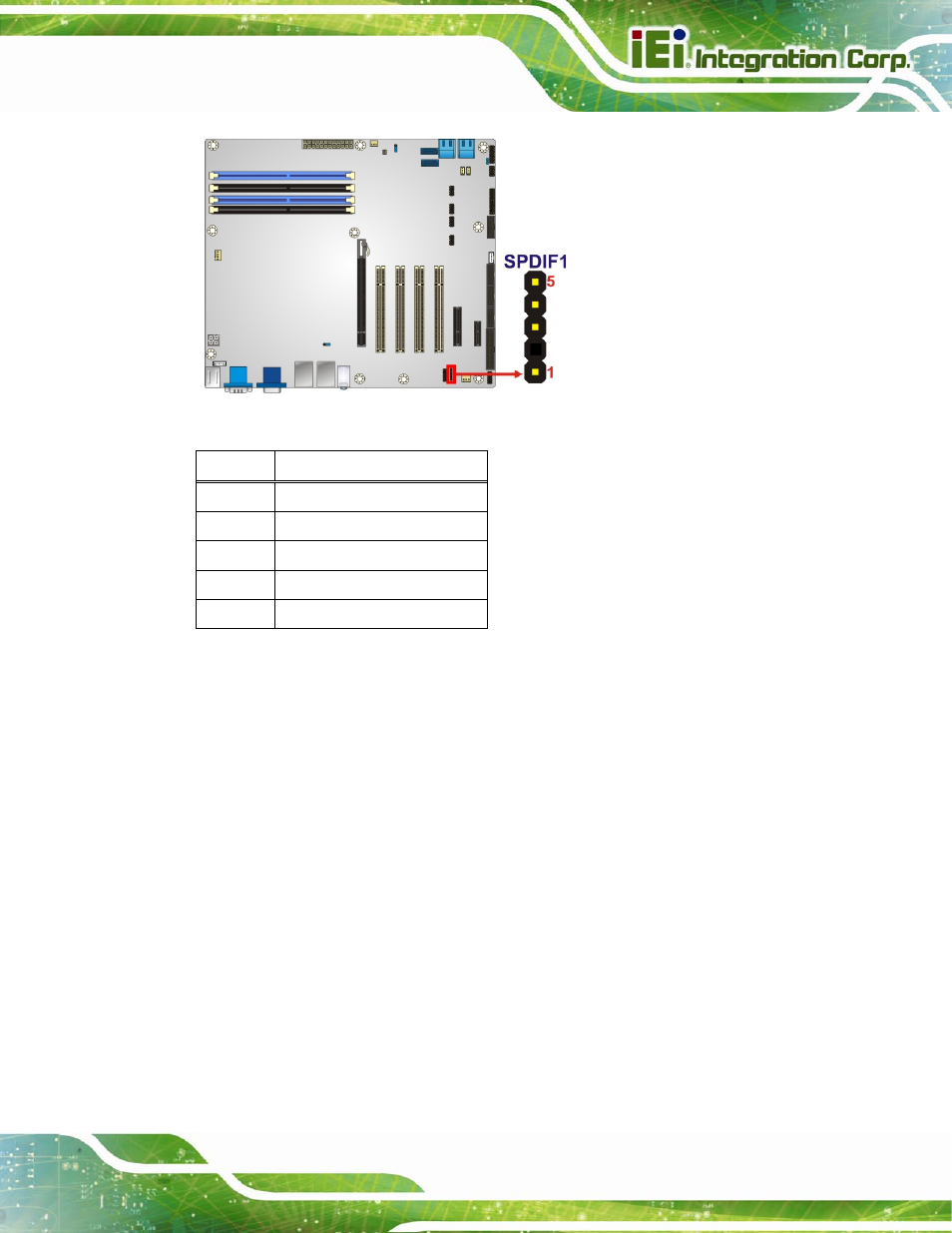

Figure 3-23: SPDIF Connector Location

PIN

DESCRIPTION

1

+5V

2

NC

3

SPDIFOUT

4

GND

5

SPDIFIN

Table 3-19: SPDIF Connector Pinouts

3.2.23 SPI ROM Connector

CN Label:

JSPI1

CN Type:

8-pin header

CN Location:

See Figure 3-8

CN Pinouts:

See Table 3-8

The SPI connector is used to flash the BIOS.
