1.1 Introduction

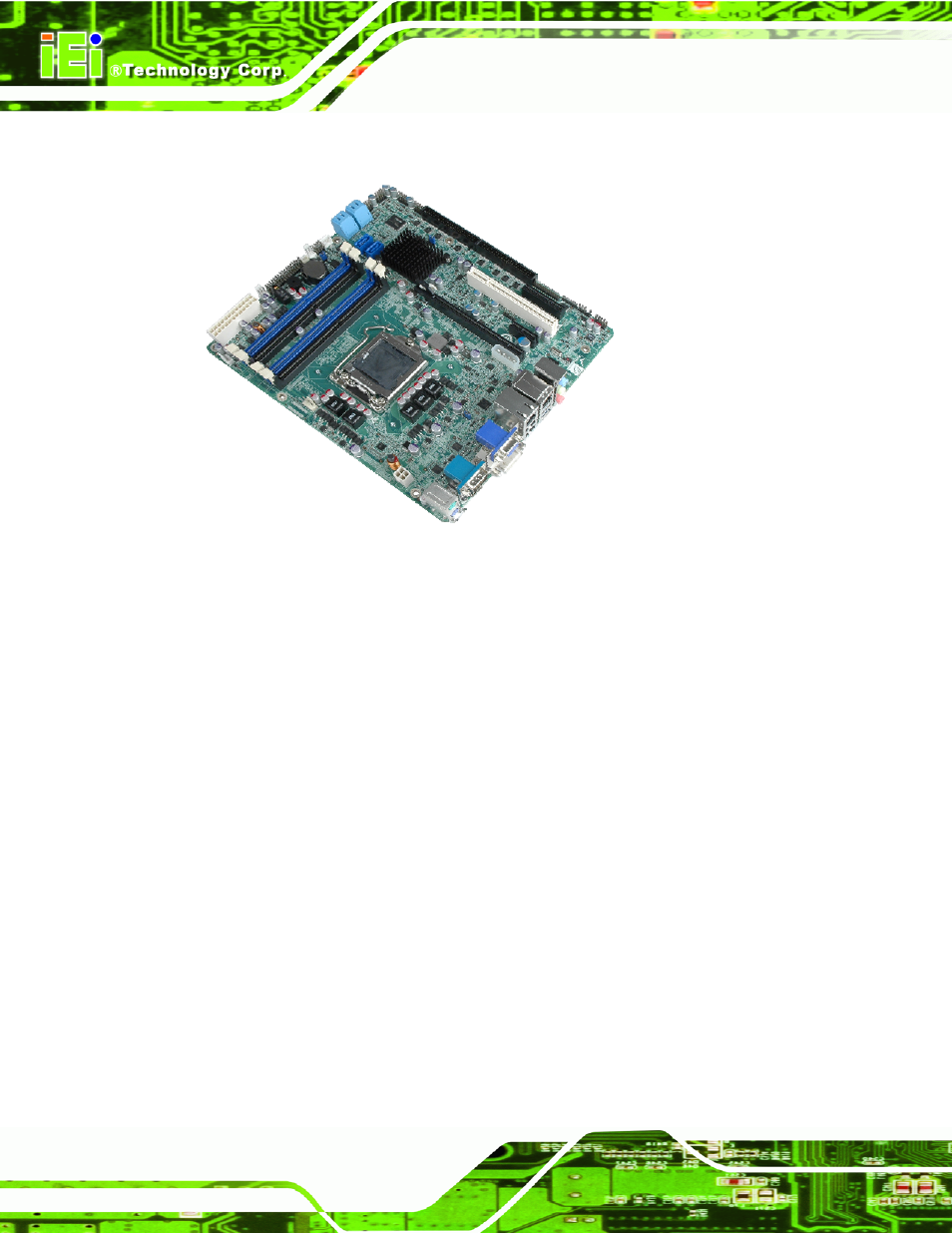

Figure 1-1: IMB-Q670
The IMB-Q670 is a MicroATX motherboard. It accepts a Socket LGA1155 Intel® Core™
i3/i5/i7 processor and supports four 240-pin 1333/1066 MHz dual-channel DDR3 DIMM
modules up to 32.0 GB maximum. The IMB-Q670 includes a VGA, HDMI, and DVI-D port.
Expansion and I/O include one PCI slot, one PCIe x16 slot, one PCIe x4 slot, one PCIe x1
slot, two USB 3.0 ports on the rear panel by NEC D720200F1, two USB 2.0 on the rear
panel, eight USB 2.0 by pin header, four SATA 3Gb/s connectors, two SATA 6Gb/s
connectors, ten COM ports, and a keyboard/mouse connector.
1.2 Benefits
Some of the IMB-Q670 motherboard benefits include:
 Powerful graphics with multiple monitors
 Staying connected with both wired LAN connections
 Speedy running of multiple programs and applications
