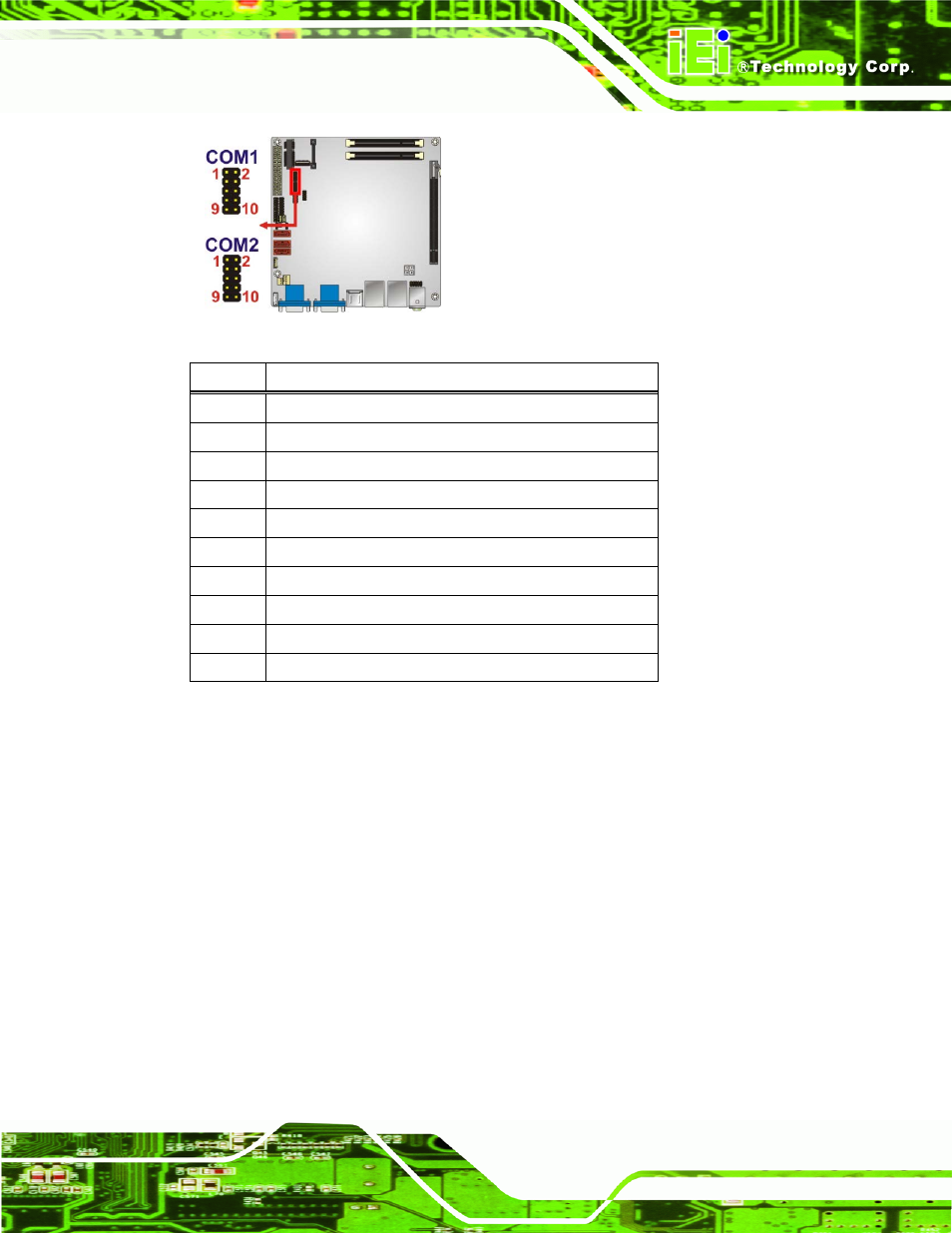

Figure 3-20: RS-232 Serial Port Connector Locations

PIN NO.

DESCRIPTION

1 -NDCD1

2 -NDSR1

3 NSIN1

4 -NRTS1

5 NSOUT1

6 -NCTS1

7 -NDTR1

8 -XRI1

9 GND

10 GND

Table 3-17: RS-232 Serial Port Connector Pinouts

3.2.19 SMBus Connector

CN Label:

SMBUS_1

CN Type:

4-pin wafer

CN Location:

See Figure 3-21

CN Pinouts:

See Table 3-18

The SMBus (System Management Bus) connector provides low-speed system

management communications.
