KINO-AH611
Page 31
CN Location: See Figure 3-18
CN Pinouts: See Table 3-15
The power connector provides 12 V power to the motherboard.

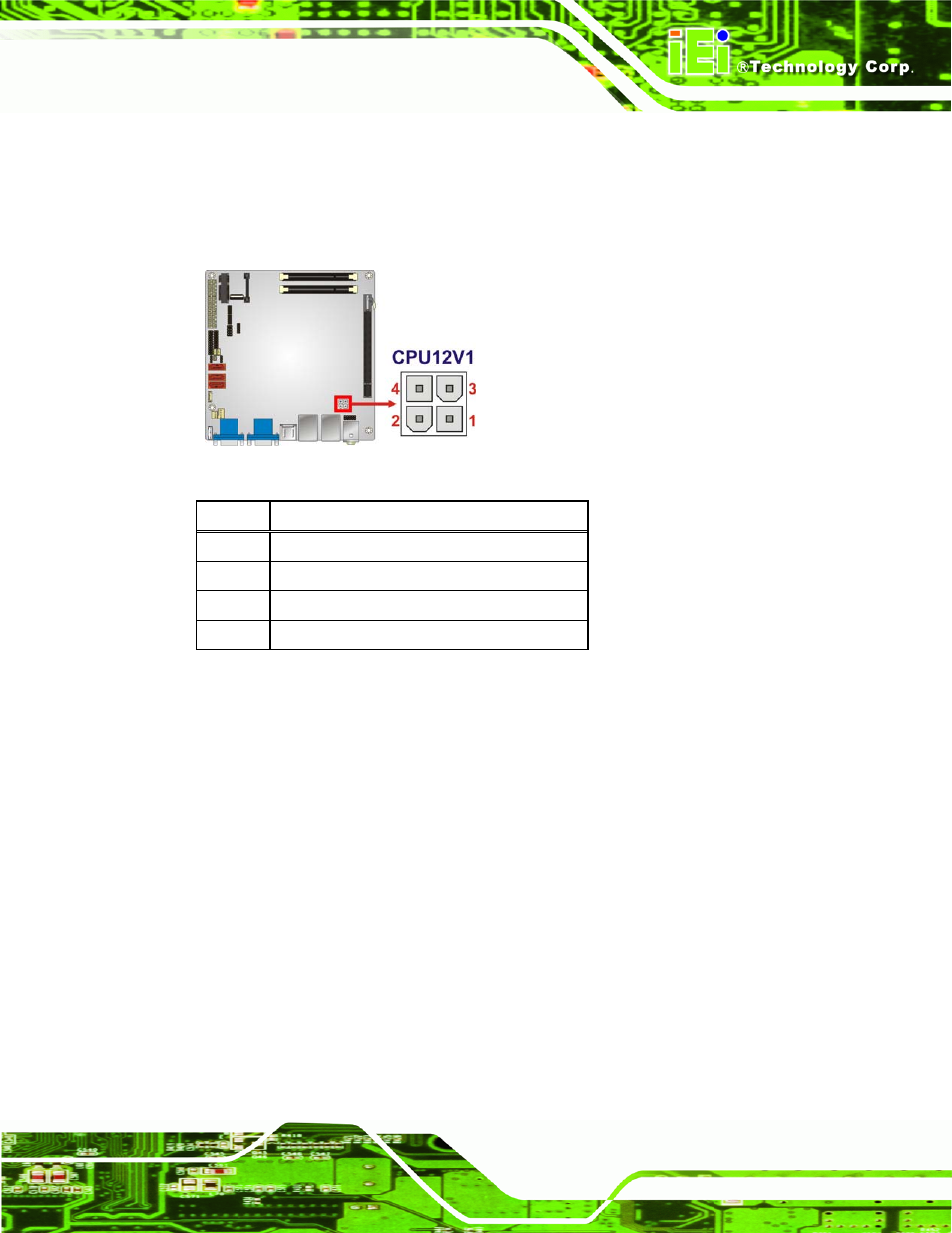

Figure 3-18: Power Connector Location
PIN NO. DESCRIPTION
1 GND
2 GND
3 +12V
4 +12V
Table 3-15: Power Connector Pinouts
3.2.17 SATA Drive Connectors
CN Label: SATA1, SATA2, SATA3
CN Type: Serial ATA (SATA) 3Gb/s Connector
CN Location: See Figure 3-19
CN Pinouts: See Table 3-16
The three SATA 3Gb/s drive connectors are each connected to a SATA 3Gb/s drive. The
SATA 3Gb/s drives transfer data at speeds as high as 3Gb/s.
