KINO-AH611
Page 30

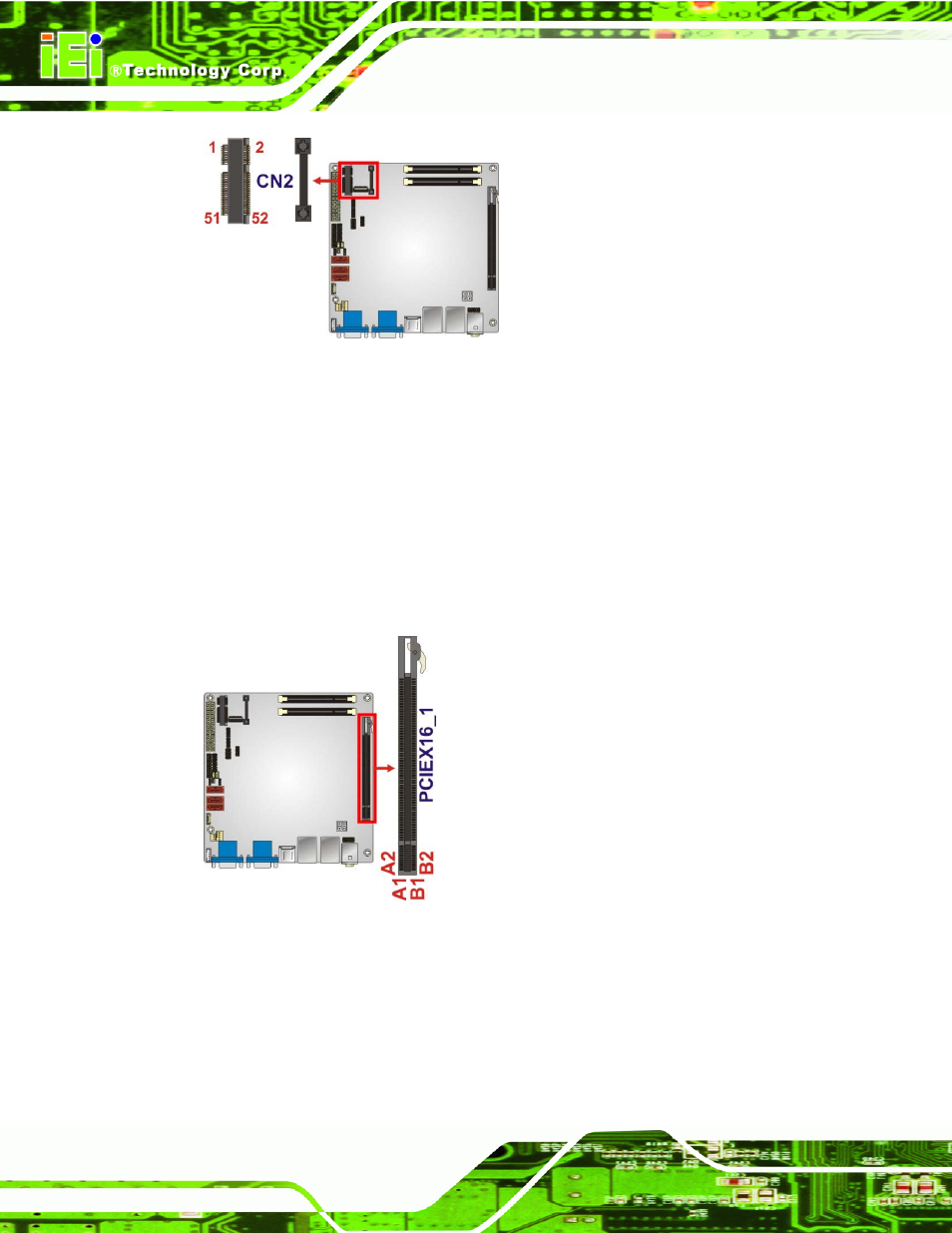

Figure 3-16: PCIe Mini Card Slot Location
3.2.15 PCIe x16 Slot
CN Label: PCIEX16_1
CN Type: PCIe x16 slot
CN Location: See Figure 3-17
The PCIe x1 slot is for PCIe x1 expansion cards.
Figure 3-17: PCIe x16 Slot Location
3.2.16 Power Connector
CN Label: CPU12V1
CN Type: 4-pin connector
