4.3.6 VGA Connector
CN Label: VIDEO1 (top)
CN Type: 15-pin Female
CN Location: See
8
Figure 4-24
CN Pinouts: See
8
Figure 4-28 and
8
Table 4-25
The eKINO-945GSE has a single 15-pin female connector for connectivity to standard
display devices.

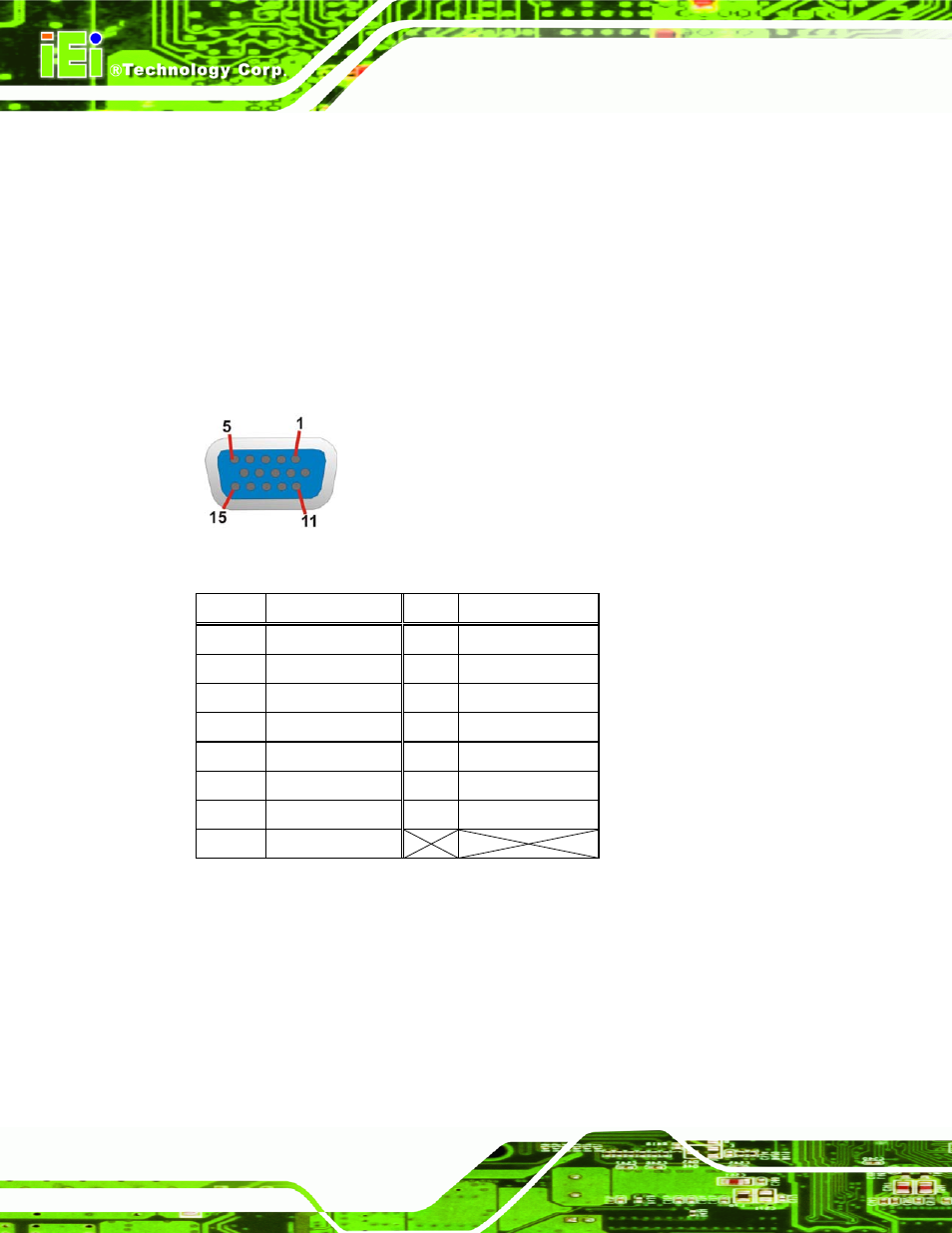

Figure 4-28: VGA Connector
Pin Description Pin Description
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 CRT_PLUG-
7 GND 8 GND
9 VCC 10 GND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 4-25: VGA Connector Pinouts
