eKINO-945GSE Motherboard

Page 56

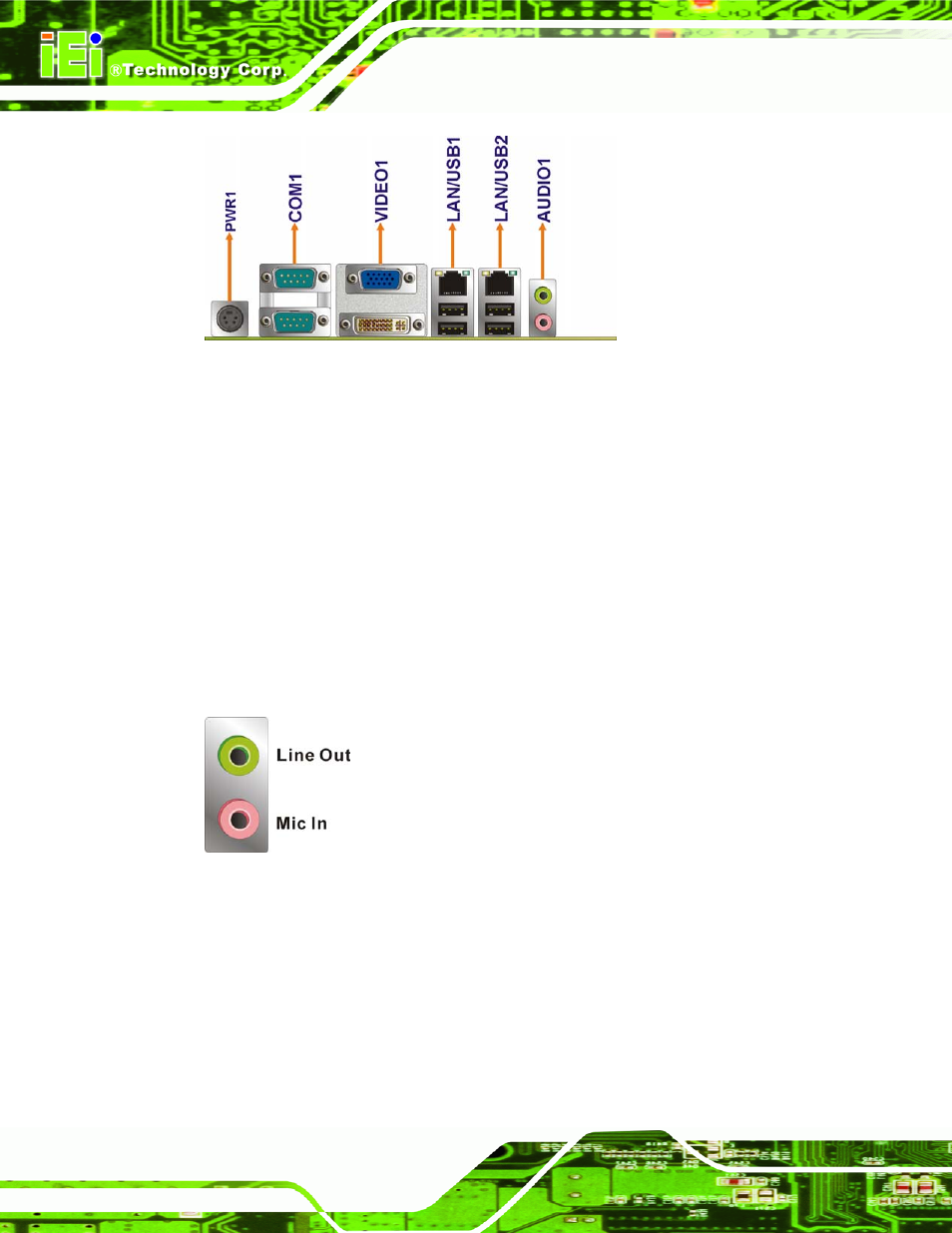

Figure 4-24: eKINO-945GSE External Peripheral Interface Connector

4.3.1 Audio Connector

CN Label:

AUDIO1

CN Type:

2 x audio jacks

CN Location:

See Figure 4-24

The two audio jacks connect to external audio devices as specified below.

ƒ Line Out port (Lime): Connects to a headphone or a speaker. With

multi-channel configurations, this port can also connect to front speakers.

ƒ Microphone (Pink): Connects a microphone.

Figure 4-25: Audio Connector

4.3.2 DVI Connector

CN Label:

VIDEO1 (bottom)

CN Type:

DVI connector

CN Location:

See Figure 4-24

CN Pinouts:

See Table 4-20
