eKINO-945GSE Motherboard

Page 48

4.2.15 SATA Drive Connectors

CN Label:

SATA1, SATA2

CN Type:

7-pin SATA drive connectors

CN Location:

See

8

Figure 4-16

CN Pinouts:

See

8

Table 4-14

The four SATA drive connectors are each connected to a first generation SATA drive. First

generation SATA drives transfer data at speeds as high as 150 Mb/s. The SATA drives

can be configured in a RAID configuration.

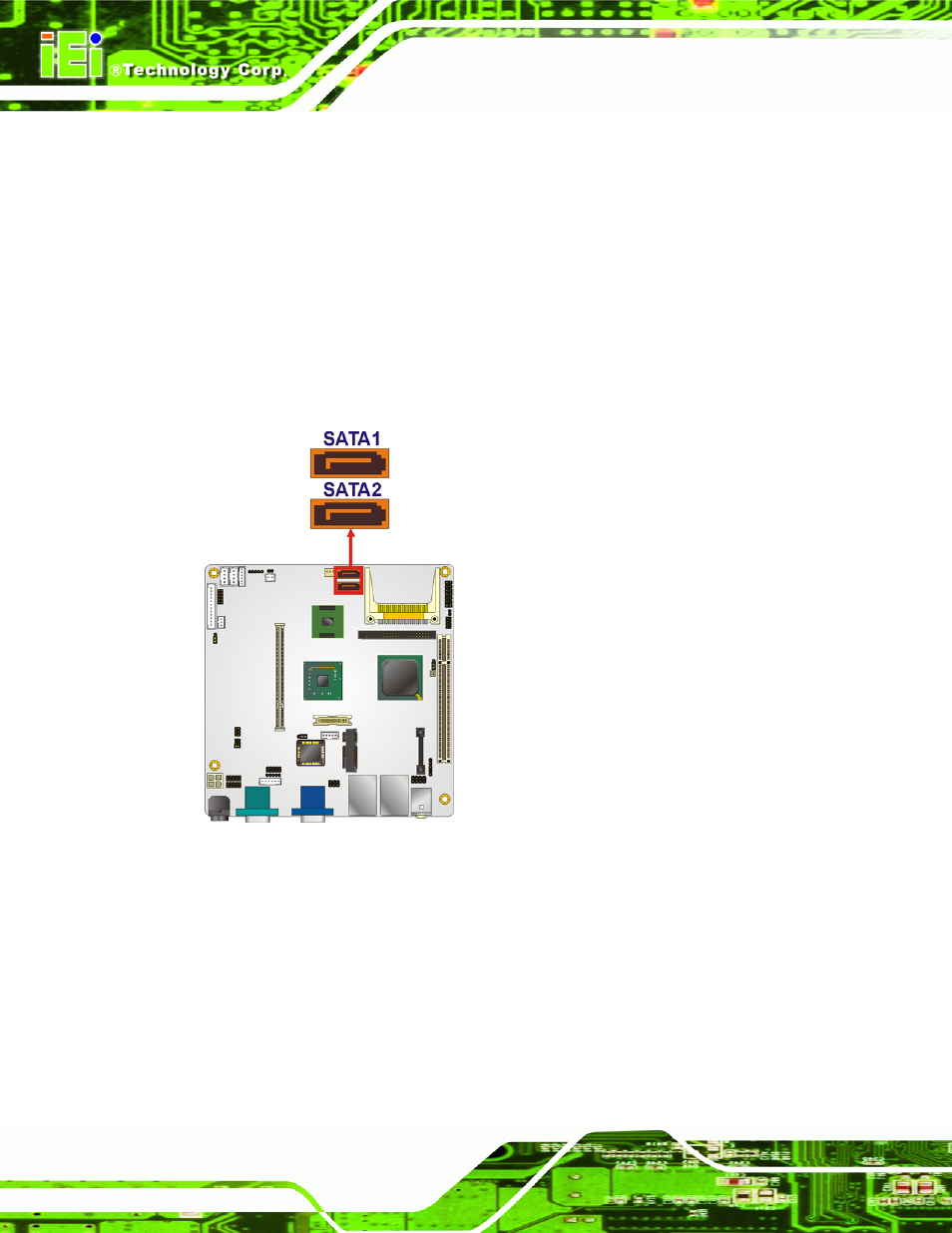

Figure 4-16: SATA Drive Connector Locations

4.2.16 SATA Power Connectors

CN Label:

PW1 and PW2

CN Type:

4-pin box header

CN Location:

See Figure 4-16

CN Pinouts:

See Table 4-14
