eKINO-945GSE Motherboard

Page 59

Pin No.

Description

Pin No.

Description

5 GND

Table 4-23: RS-232 Serial Port Pinouts

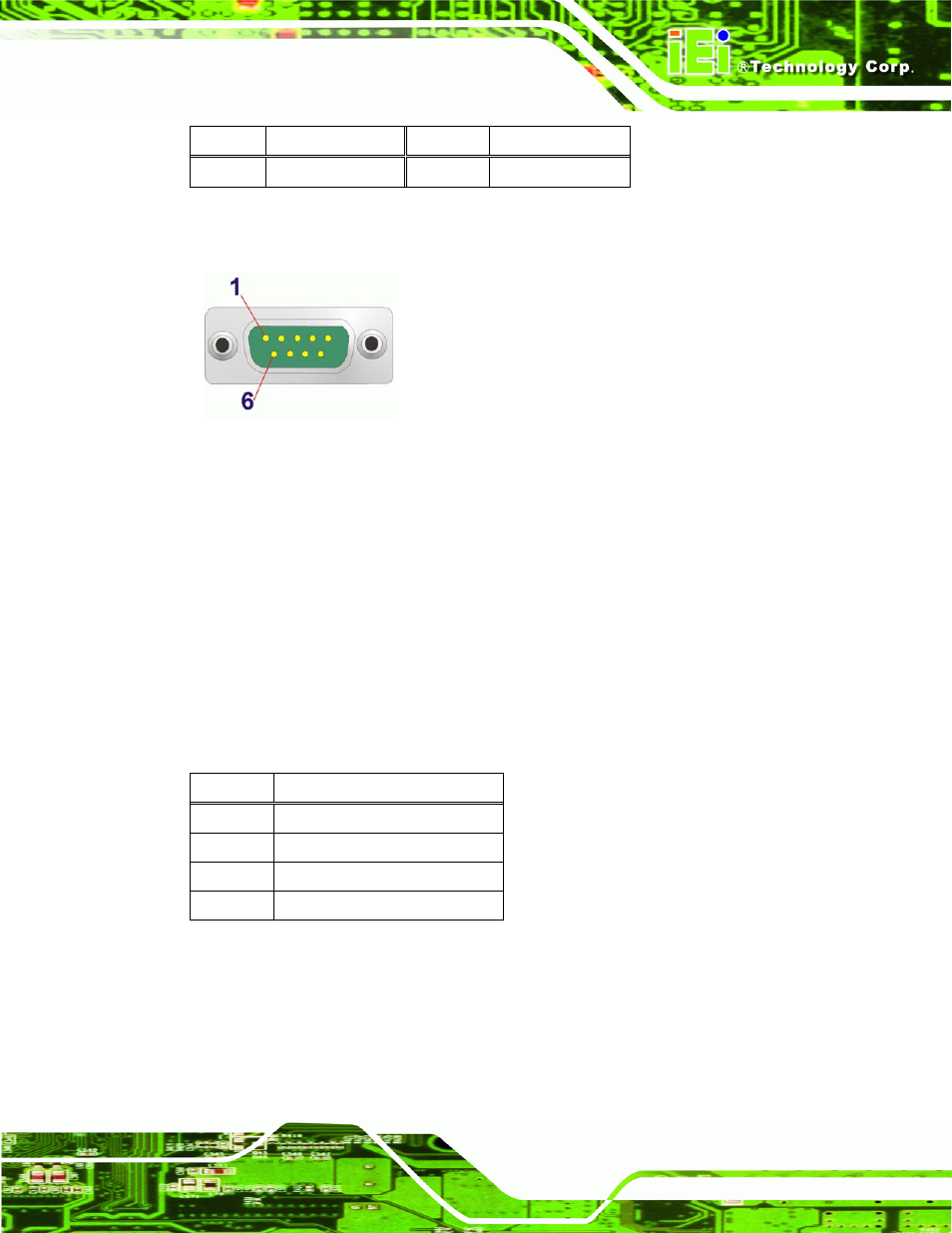

Figure 4-27: RS-232 Serial Port Pinout Locations

4.3.5 USB Connectors

CN Label:

LAN/USB1 and LAN/USB2

CN Type:

USB port

CN Location:

See

8

Figure 4-24

CN Pinouts:

See

8

Table 4-24

The eKINO-945GSE has one external USB 2.0 port. The ports connect to both USB 2.0

and USB 1.1 devices.

Pin No.

Description

1 VCC

2 DATA-

3 DATA+

4 GND

Table 4-24: USB Port Pinouts
