eKINO-945GSE Motherboard

Page 52

4.2.19 SO-DIMM Socket

CN Label:

DIMM1

CN Type:

DDR2 SO-DIMM socket

CN Location:

See Figure 4-20

The digital input/output connector is managed through a Super I/O chip. The DIO

connector pins are user programmable.

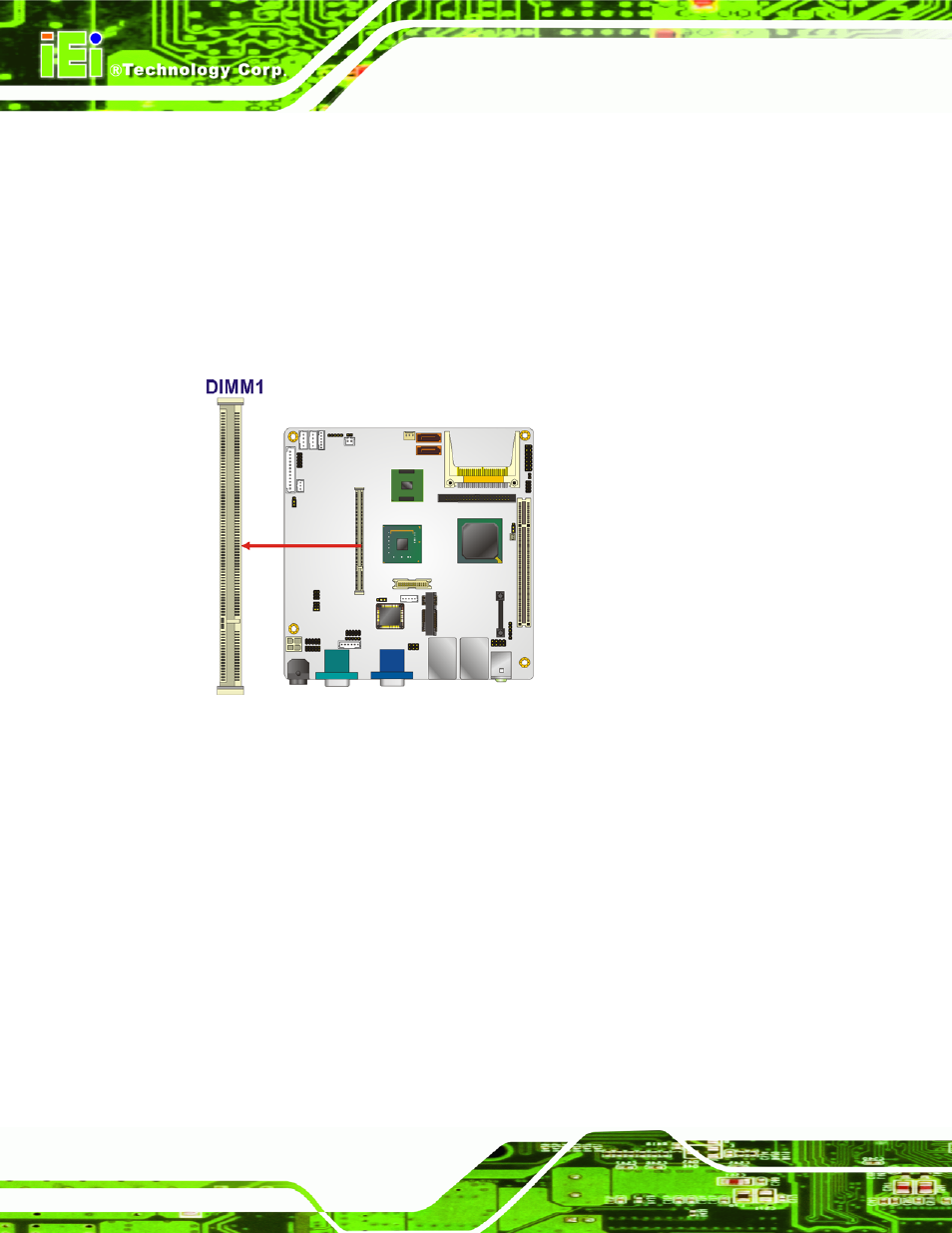

Figure 4-20: SO-DIMM Location

4.2.20 SPDIF Connector

CN Label:

SPDIF1

CN Type:

5-pin header

CN Location:

See Figure 4-21

CN Pinouts:

See Table 4-17

Use the SPDIF connector to connect digital audio devices to the system.
