eKINO-945GSE Motherboard

Page 47

4.2.14 Power Connectors

CN Label:

CN2

CN Type:

4-pin power connectors

CN Location:

See Figure 4-15

CN Pinouts:

See Table 4-13

The power connectors connect to a 9~28 V power supply.

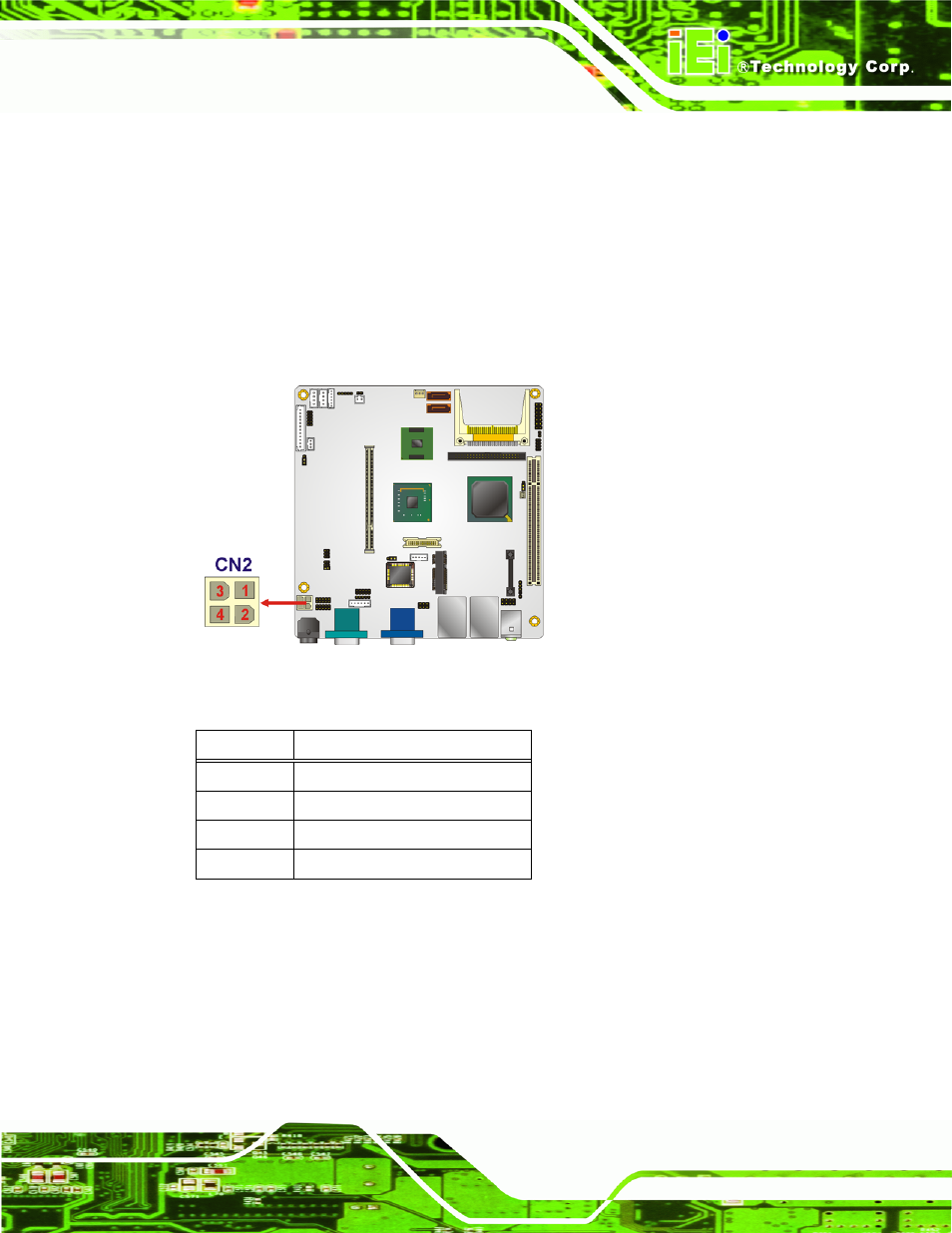

Figure 4-15: Power Connector Location

Pin No.

Description

1

Ground

2

Ground

3

Power (9~28 V)

4

Power (9~28 V)

Table 4-13: Power Connector Pinouts
