Figure 2-3: data flow block diagram, 2 data flow – IEI Integration PCIE-Q350 v1.00 User Manual
Page 33
PCIE-Q350 PICMG 1.3 CPU Card
Page 11
2.2 Data Flow
Figure 2-3 shows the data flow between the two on-board chipsets and other components
installed on the motherboard and described in the following sections of this chapter.

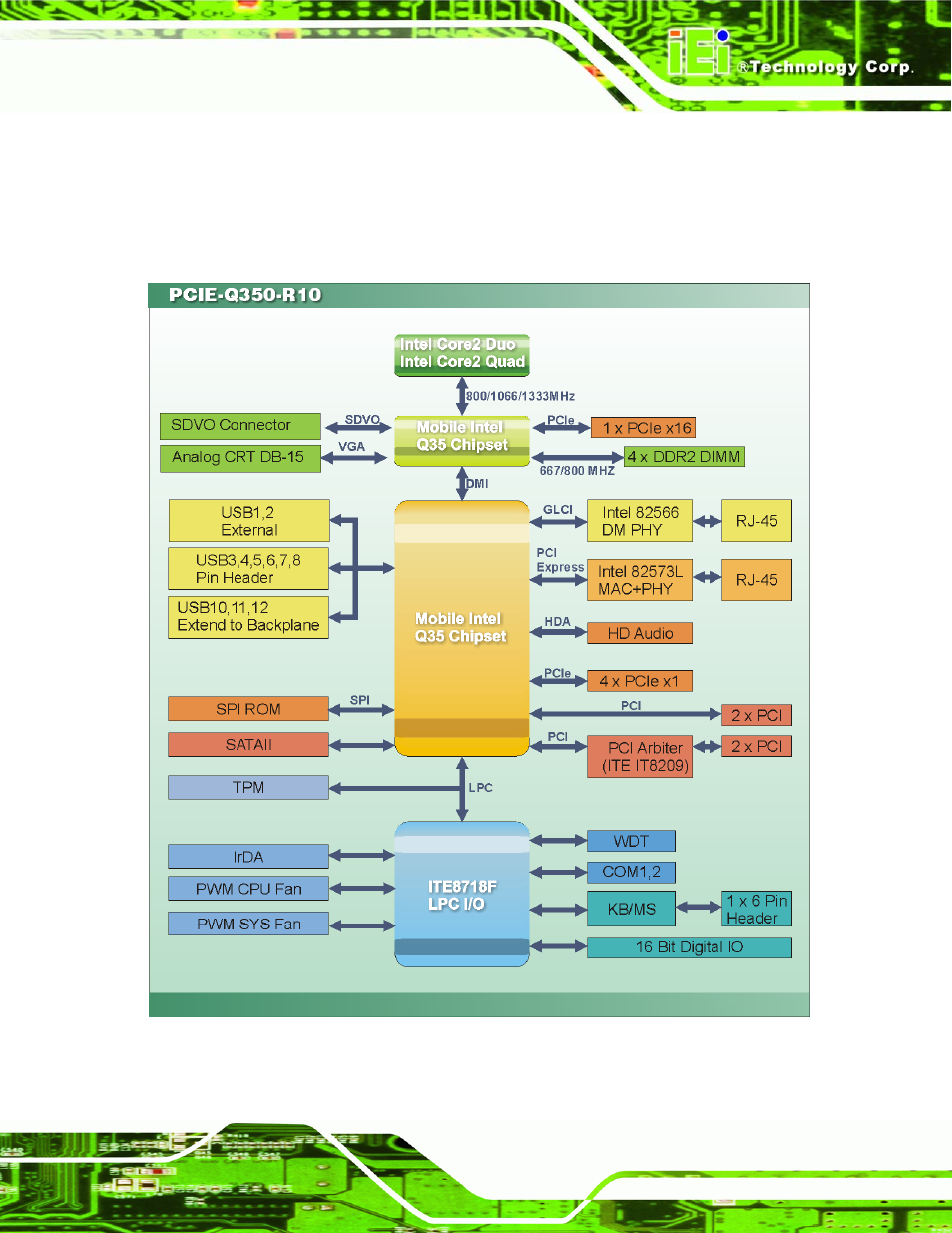

Figure 2-3: Data Flow Block Diagram
