NOTE:
IEI has a wide range of backplanes available. Please contact your
PCIE-Q350 vendor, reseller or an IEI sales representative at
[email protected] or visit the IEI website (http://www.ieiworld.com.tw)
to find out more about the available chassis.
5.6.3 CPU Card Installation
To install the PCIE-Q350 CPU card onto the backplane, carefully align the CPU card
interface connectors with the corresponding socket on the backplane. See Figure 5-10.

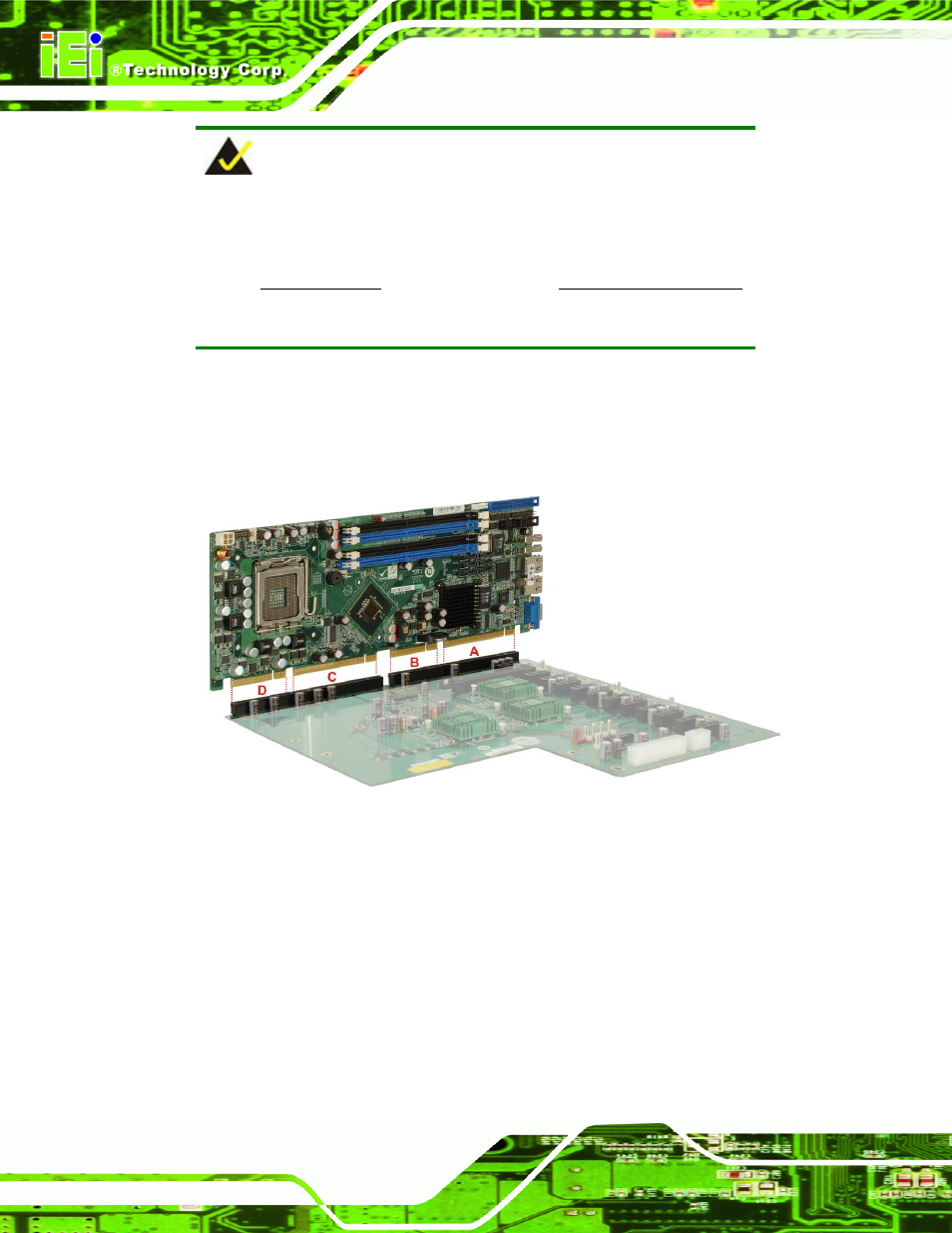

Figure 5-10: PCIE-Q350 Backplane Installation
Next, secure the CPU card to the chassis. To do this, please refer to the reference
material that came with the chassis.
5.7 Internal Peripheral Device Connections
5.7.1 Peripheral Device Cables
The cables listed in Table 5-3 are shipped with the PCIE-Q350.
