SW HDMI Series • Reference Information 34
4. Mount the switcher to the rack support, using the two included rack screws.
MA V SERIES AV MA TRIX SWITCHER I/O
AUD
AUD IO S ETU P
PR ESE T
VID
IR
+dB
-dB
ENT ER
2
7
6
5
2
4
1
INPUTS
OUTPUTS
8
3
1
8
6
5
4
3
7

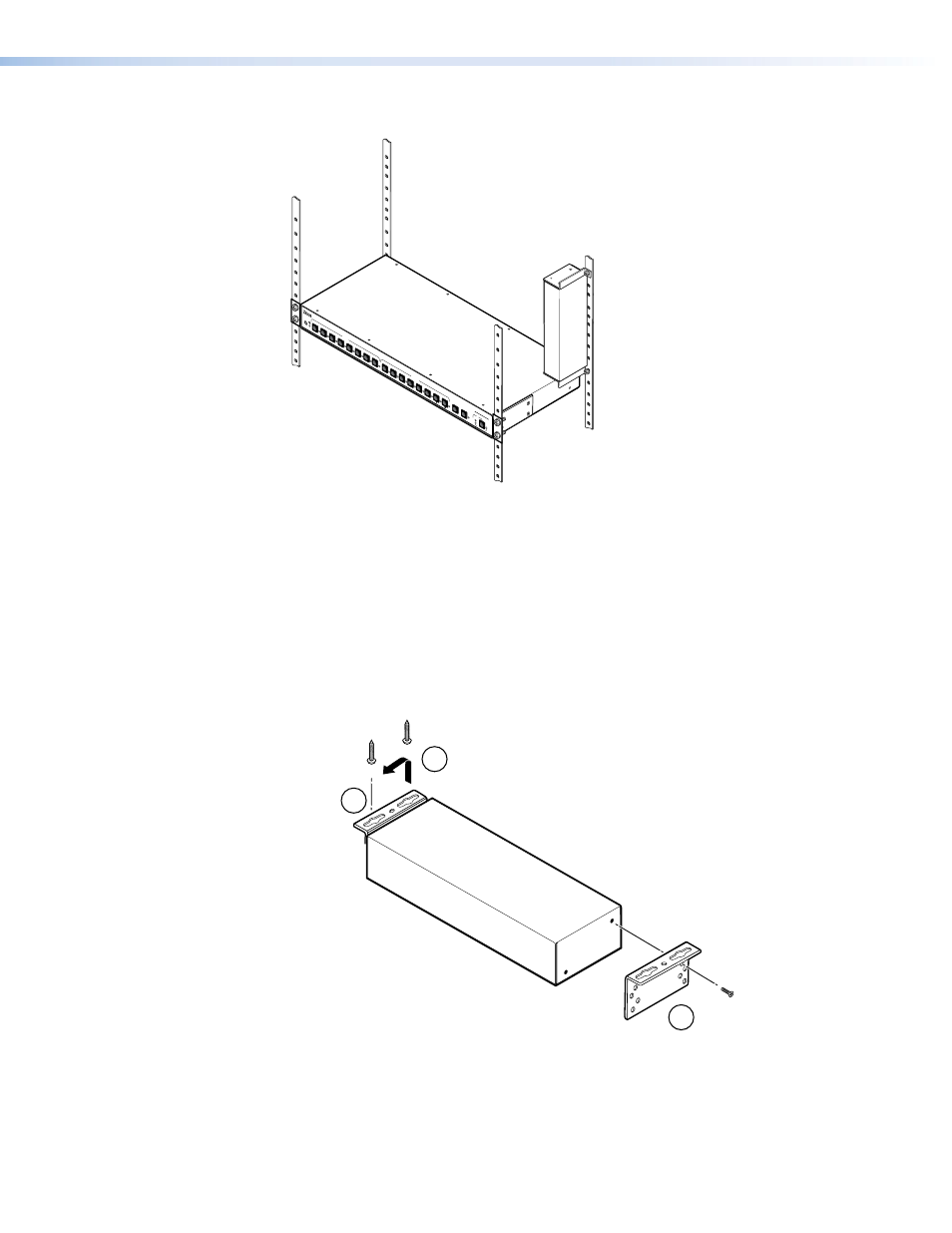

Figure 25. Mounting an SW HDMI Switcher to a Rack Support
Furniture Mounting
To mount an SW HDMI switcher under a desk, table, or podium, use the optional
MBU 123 Mini Under-Desk Mounting Kit (part number 70-212-01) as follows:
1. If rubber feet were previously attached to the bottom of the unit, remove them.
2. Remove the two screws from each side of the switcher. Retain the screws for possible
later reassembly.
3. Attach the brackets to the sides of the unit, using the provided machine screws.
3
7
9
Figure 26. Preparing the SW HDMI Switcher for Under-desk Mounting
4. Hold the unit with the attached brackets against the underside of the table or other
furniture. On the mounting surface, mark the location of the bracket screw holes.
