E Series - 12 Lead ECG Monitoring Option Insert
10 9650-1213-01 Rev. G
Patient Information

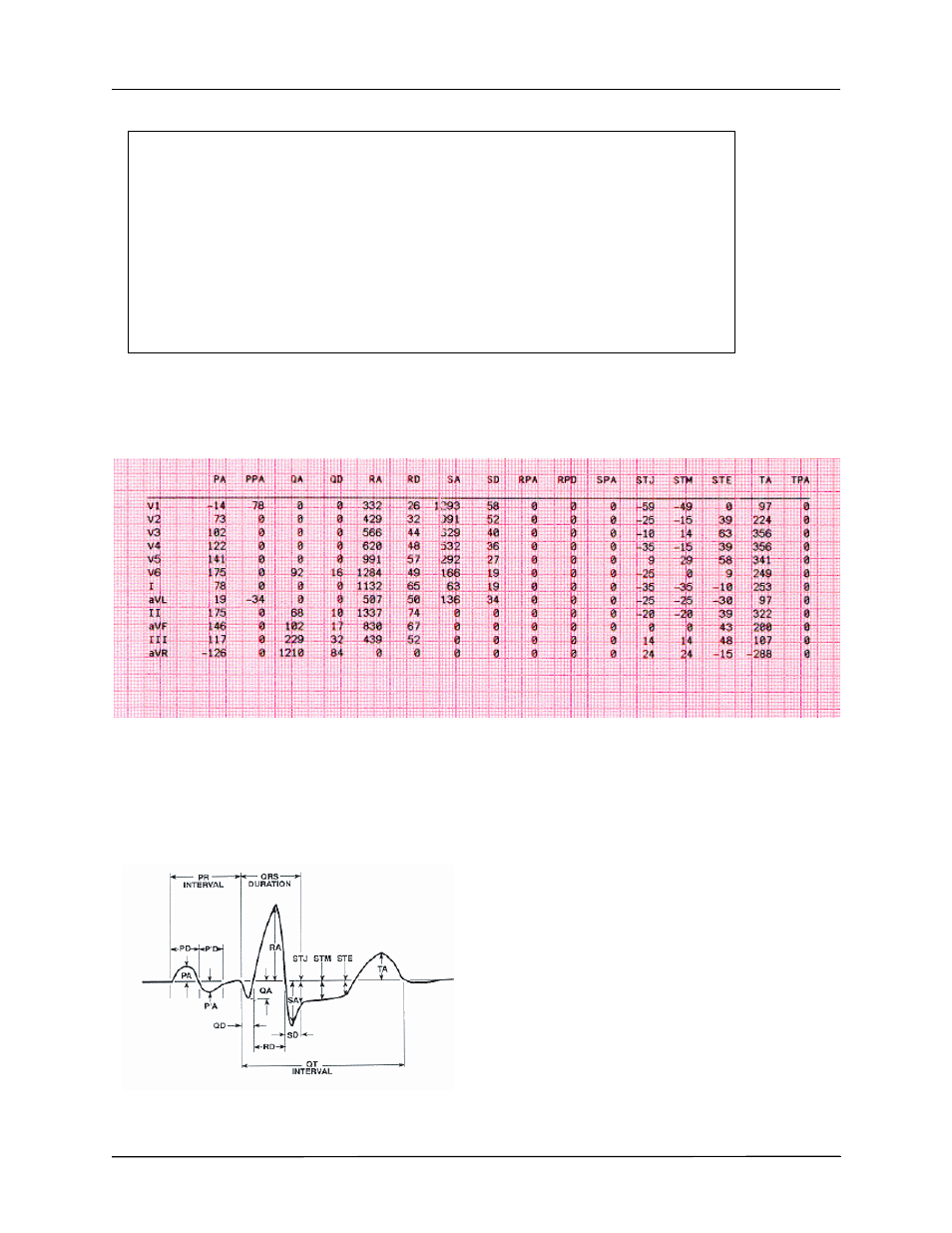

Measurements Matrix
You can configure the unit to print out a measurements matrix, which consists of measurements for each segment of
each lead. To print the measurements matrix at the end of an analysis, you must change the default setting in the
E Series device. (For more details, see the E Series Configuration Guide.)
12SL Wave Measurement
After the P, QRS, and T complexes have been demarcated, the waves for each complex are identified. This is done
separately for each lead. The program finds the points at which the signal crosses the baseline within each complex. If
the crossing points define a wave that has an area greater than or equal to 160
μV•ms, the wave is considered to be
significant. If the area is less than 160
μV•ms, the program considers the wave to be insignificant and does not label it
as a separate wave. The measurement matrix contains the amplitudes (with respect to QRS onset) and durations of all
of these individual waves.
DEVICE ID: 00000000000
RECORDED: 16:09:27 31 MAY 05
PATIENT NAME : JOE SMITH
PATIENT ID: 200505311609
PATIENT AGE: 60
PATIENT SEX: Male
Vent. Rate : 60
PR interval 166 ms
QRS Duration: 82 ms
QT/QTc 358 / 358 ms
P-R-T axes 54 43 47
Normal sinus rhythm
Normal ECG
*** Unconfirmed ***
