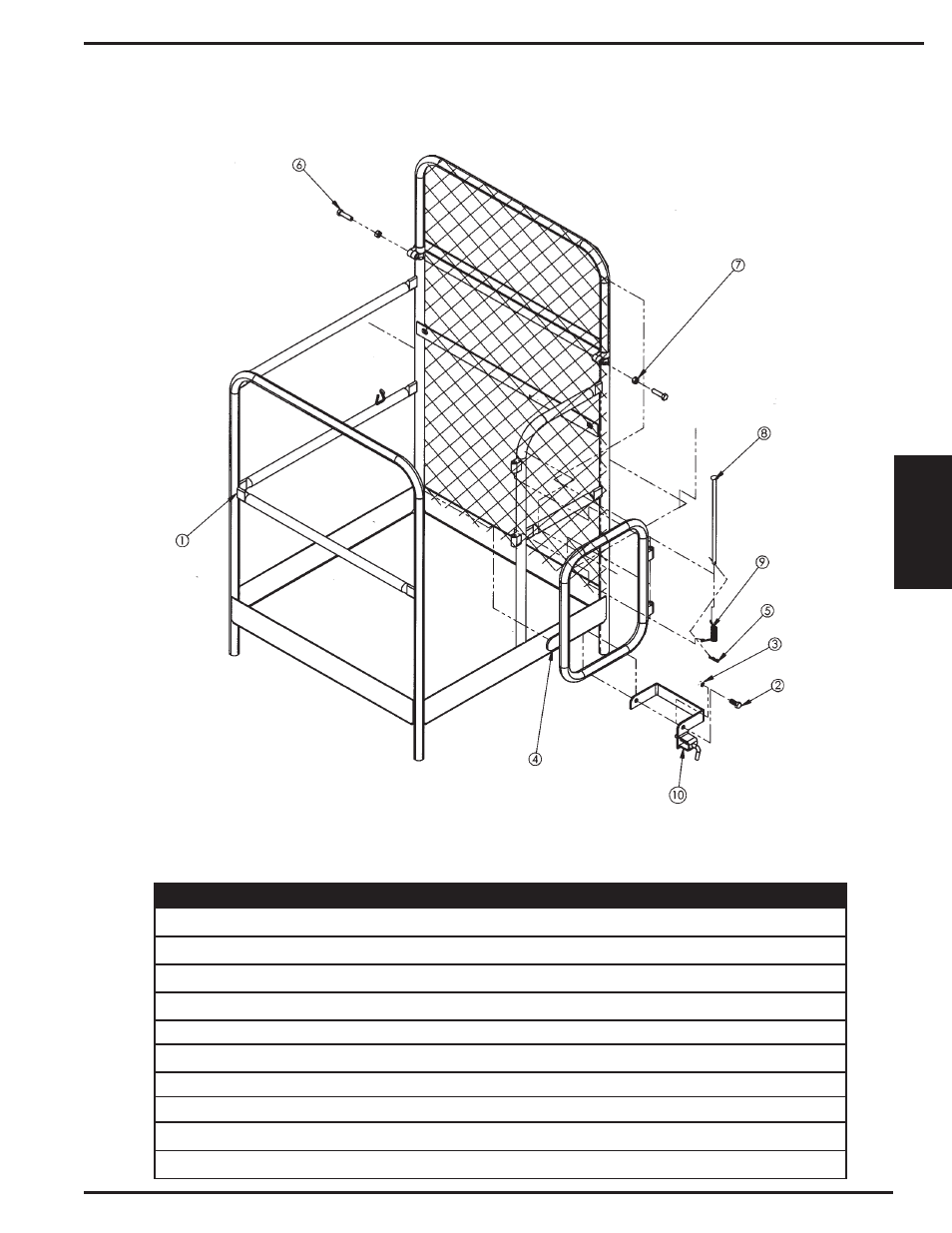

PARTS IDENTIFICATION

models WP-3636, WP-3648, WP-4848

PARTS IDENTIFICATION

models WP-3636, WP-3648, WP-4848

ITEM NO.

1

2

3

4

5

6

7

8

9

10

DESCRIPTION

FRAME, WELDMENT

HHCS #2 Z PLATED, 1/2” - 13 X 1-1/4” LG

1/2” - 13 NYLON INSERT LOCK NUT

WELDMENT, HINGED GATE, WP-DD

#11 HITCH PIN CLIP

1/2” X 2” HEX HEAD

1/2” - 13 UNC HEX NUT

7/16” X 14” LG ROUND HEAD PIN

9/16” X 2-1/4” LG SPRING

ASSEMBLY, TINE LOCK, WP

QTY.

1

2

2

1

1

2

2

1

1

1

PART NO.

14-514-118

11207

37030

14-514-093

45286

10211

36109

14-112-009

14-146-002

14-537-007
