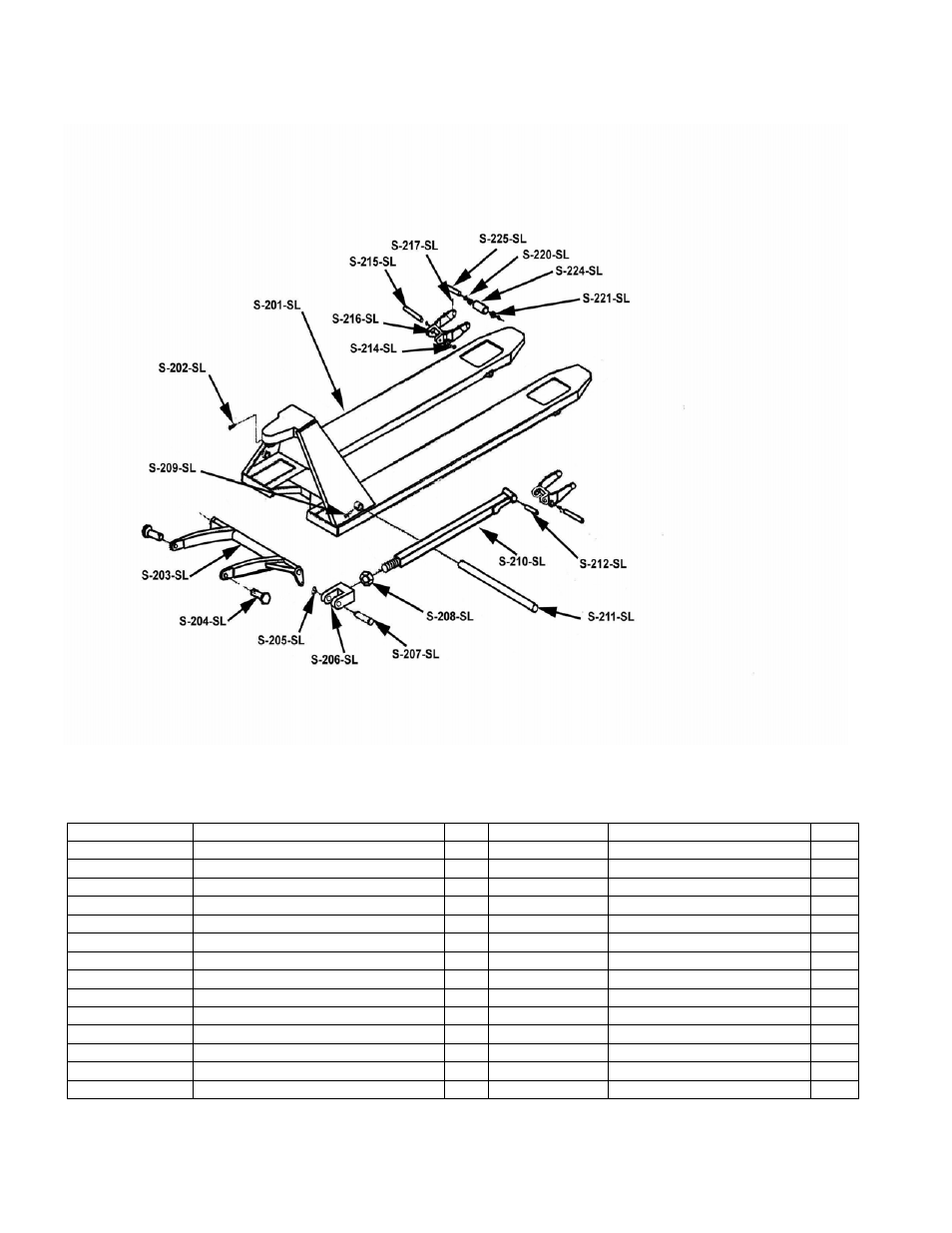

FORK FRAME ASSEMBLY
PARTS LIST OF FORK FRAME
No Description Qty. No Description Qty.
PM4-201SL-F Fork Frame 1 PM4-211SL-F-33 Long Shaft – 33” 1
PM4-202SL-F Bolt 1 PM4-212SL-F Shaft 2
PM4-203SL-F-20 Rock-Arm - (TRUNION) -20" WIDE 1 PM4-213SL-F Elastic Pin 2
PM4-203SL-F-27 Rock-Arm - (TRUNION) - 27" WIDE 1 PM4-214SL-F Washer 4
PM4-203SL-F-33 Rock-Arm - (TRUNION) - 33" WIDE 1 PM4-215SL-F Shaft 2
PM4-204SL-F Shaft 2 PM4-216SL-F Frame of Roller 2
PM4-205SL-F Retaining Ring 2 PM4-217SL-F Elastic Pin 8 or 2
PM4-206SL-F Joint 2 PM4-220SL-F Washer 8 or 4
PM4-207SL-F Pin 2 PM4-221SL-F Bearing 6003 2RS 8 or 4
PM4-208SL-F Nut 2 PM4-223SL-F Elastic Pin 2
PM4-209SL-F Elastic Pin 1 PM4-224SL-F Roller (Ø1 ¾” x 3 5/8”) Steel 2
PM4-210SL-F Pushing Rod 2 PM4-225SL-F Shaft for Roller 2
PM4-211SL-F-20 Long Shaft – 20” 1
PM4-211SL-F-27 Long Shaft – 27” 1
