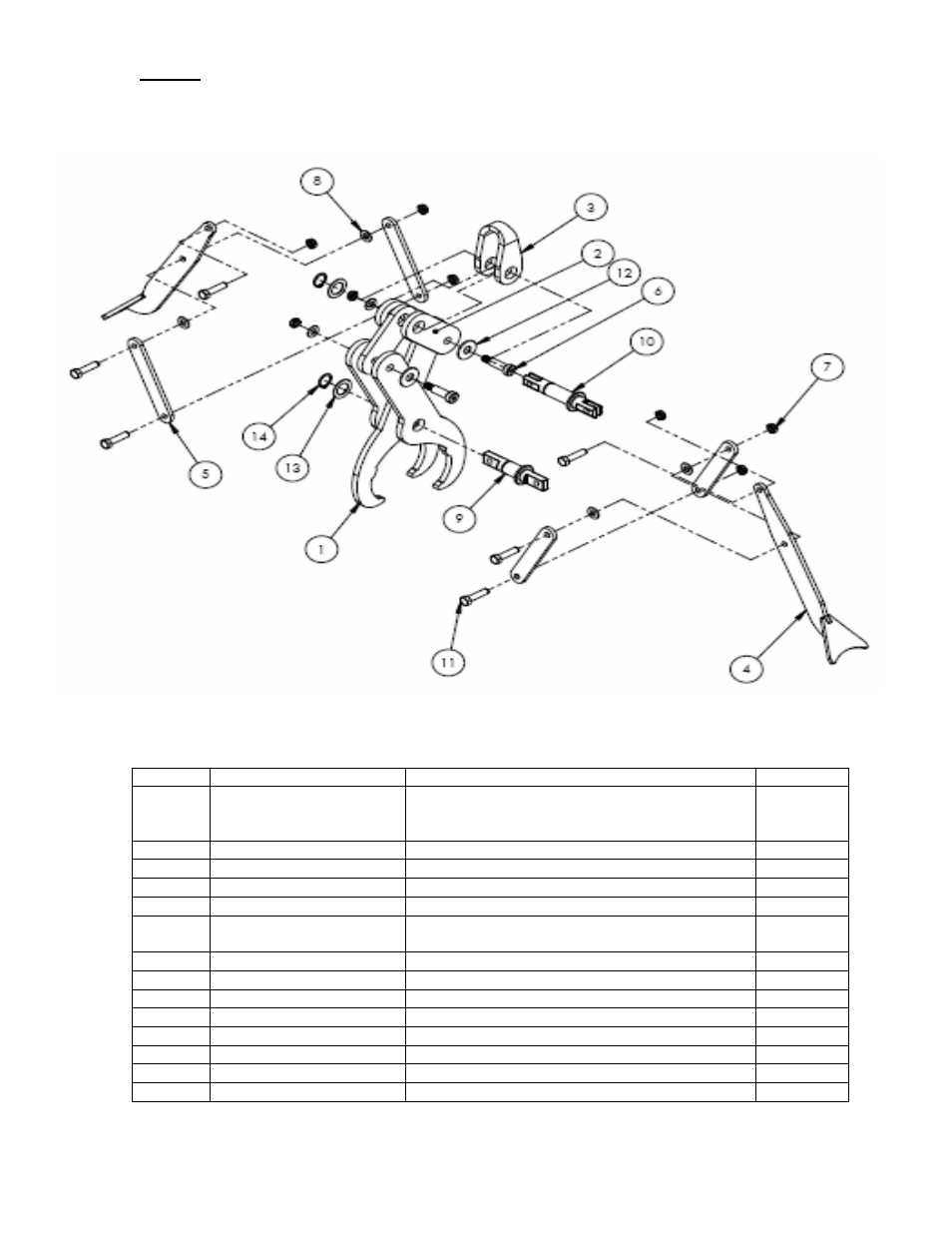

FIG. 2: Exploded Parts View for Models PG-C-045, PG-C-060,
PG-S-045, PG-C-060
Item No. Part No. Description Quantity
1
28-014-196
28-014-199
Lever Arm (Frame)
3
2 28-014-197 Top Link (Frame) 3
3 28-016-090 Formed Hook Bracket 1
4 25-516-043 Pipe Guide Weldment 2
5 28-014-198 Link Arm (Frame) 4
6 26351
Socket Head Shoulder Bolt,1/2 x 1-1/4
with ¼ Hex, 3/8-16UNC Threads
2
7 37024 3/8 Nylock Insert Nut 8
8 33008 3/8 USS Flat Washer Z Plated 6
9 28-112-024 Lower Frame Pin 1
10 28-112-025 Upper Frame Pin 1
11 11109 3/8-16x1-1/2 Z Plated 6
12 33012 ½ Z-plated Flat Washer 2
13 33434 7/8 x 18Ga. Machine Bushing 2
14 68017 External Snap Ring, 7/8 Shaft 2
