Gravity flow rack step 2, Step 2 – Vestil FLOW Series User Manual
Page 2

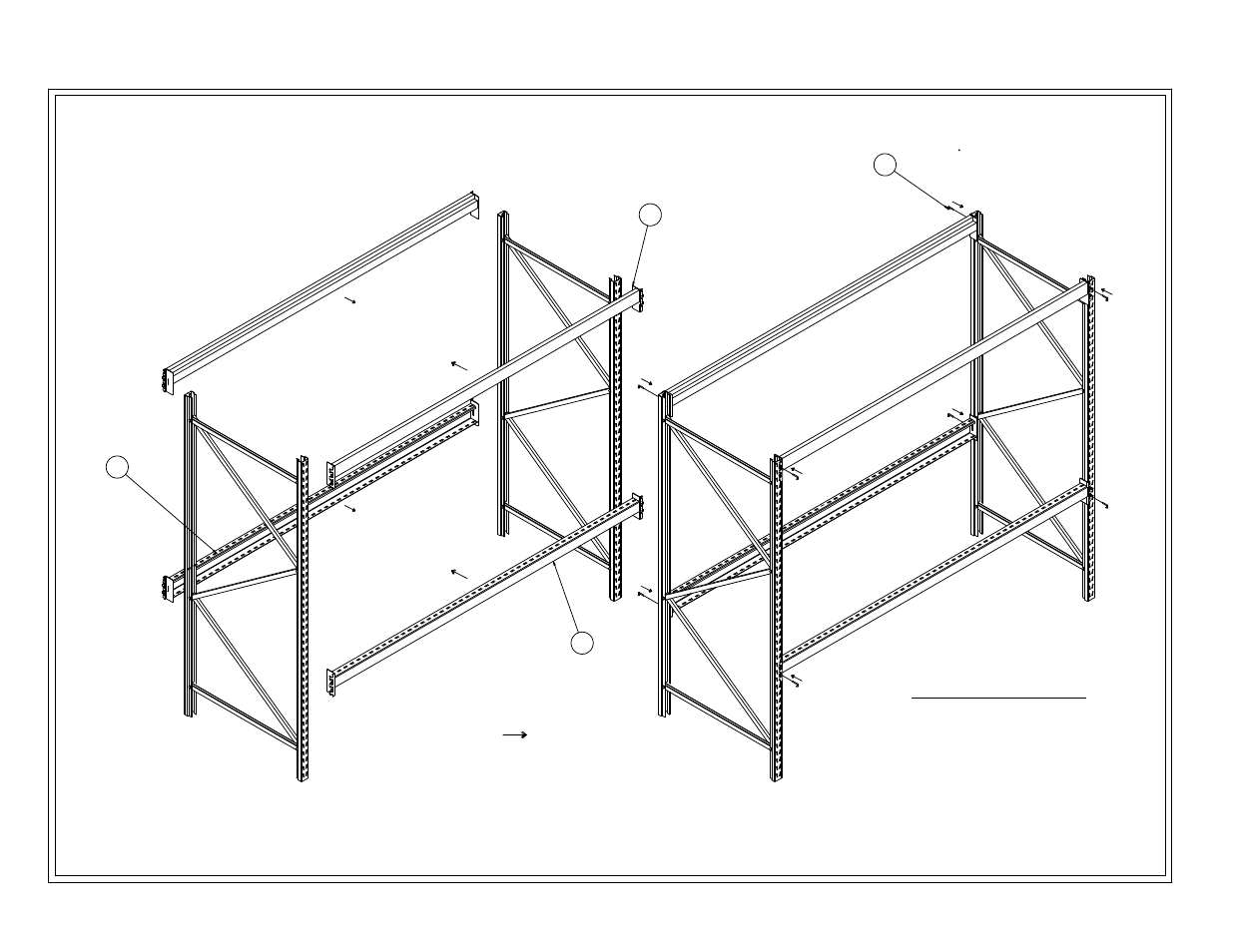

PARTS LIST TO ASSEMBLE THE BEAMS.
1
4
3
2
STEP 2:
1 - TOP BEAM - 2PCS./UNIT
2 - REAR ROLLER BEAM - 3PCS/UNIT FOR FLOW-3
- 4PCS/UNIT FOR FLOW-4
- 5PCS/UNIT FOR FLOW-5
3 - FRONT ROLLER BEAM - 3PCS/UNIT FOR FLOW-3
- 4PCS/UNIT FOR FLOW-4
- 5PCS/UNIT FOR FLOW-5
4 - SAFETY PIN - 2PCS/BEAM
16 PCS. FOR FLOW-3
20 PCS. FOR FLOW-4
24 PCS. FOR FLOW-5
1 - Assemble 2 top beams (beam tabs should fit in upright slots).
2 - Assemble roller beams at desired height (beam tabs should fit in upright slots).
3 - Install safety pin in all beams ( two per beam)
