Installation
Page 2-6

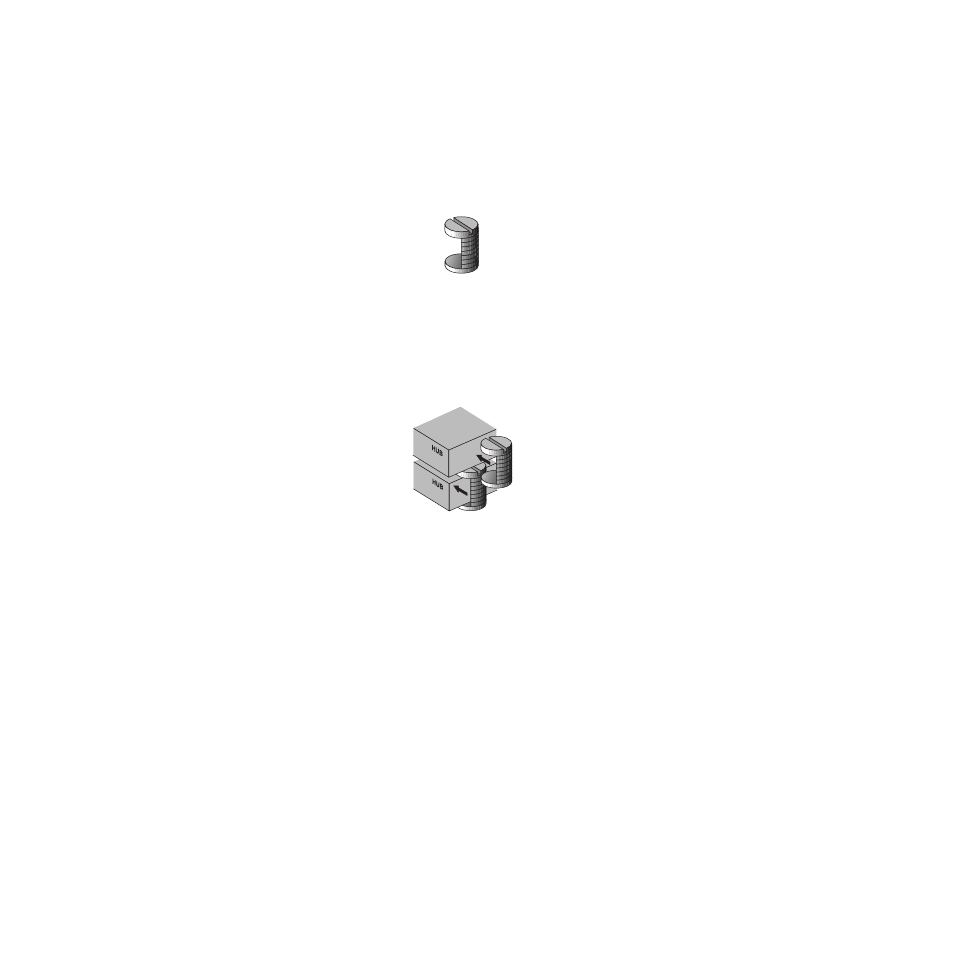

Figure 2-9 Desk Stands
2
Slide additional stands into the slots on top of each stand on
the first hub as shown in Figure 2-10.
3
Slide the second hub between the stands.
4 Press the stands tightly against the hub.
Figure 2-10 Using Desk Stands
Rack Mounting
A rack mount bracket is an optional way to mount hubs in standard EIA 19-
inch racks.
1 Align the mounting brackets on the sides of the unit with
the slit over the holes as shown in Figure 2-11.
2 Secure the screws tightly to fix the brackets to the device.
3
Place the device into the 19-inch rack and attach it properly.
Ensure that the ventilation holes do not get blocked.
